AIS List
Receives surrounding AIS information through the AIS antenna, displays it in a list, and allows a selected vessel position to be viewed on the chart.

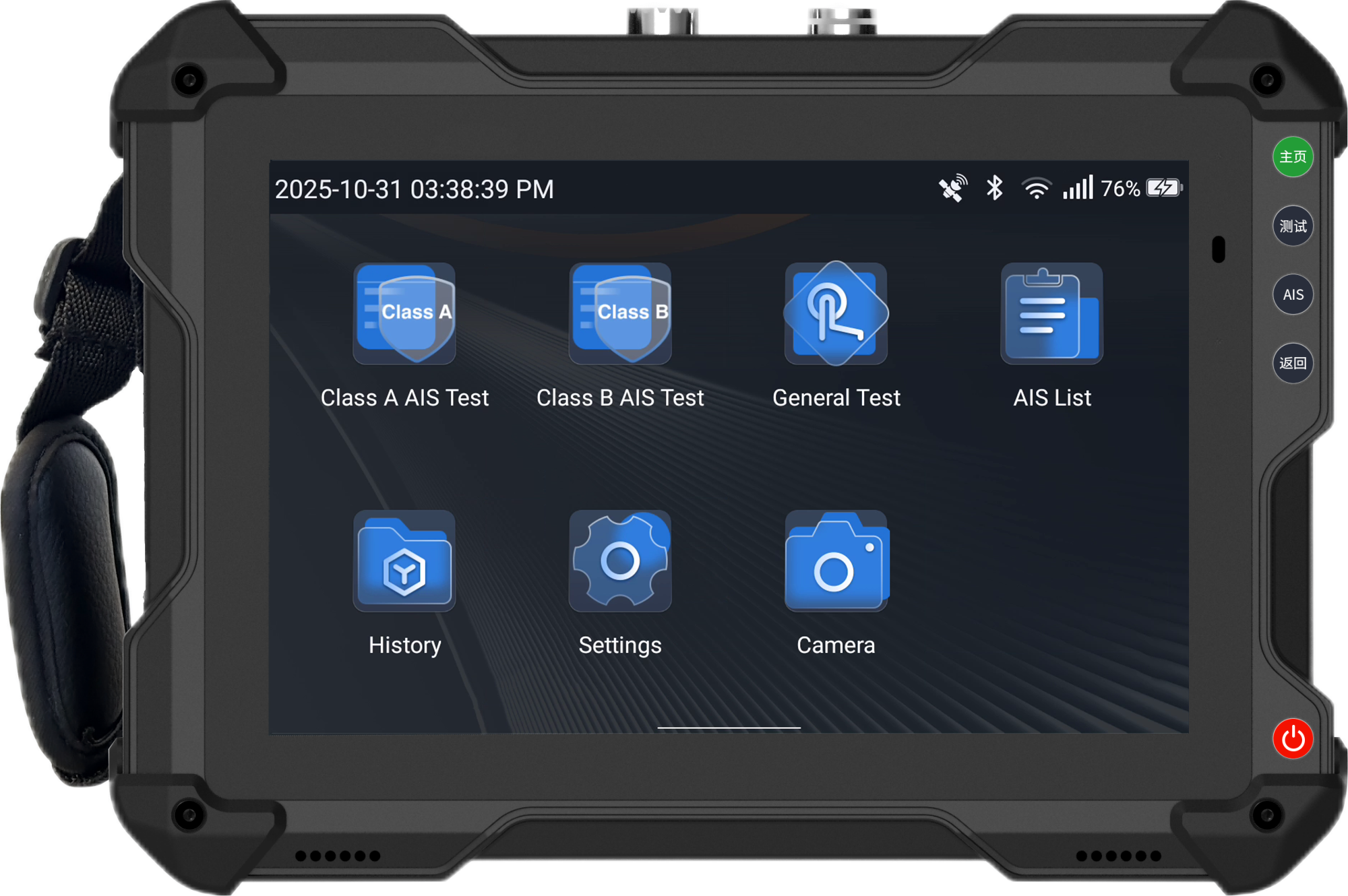

AIS Tester / XINUO
XNAT-1000
A multi-functional AIS testing device with automated testing, photo evidence capture, and report generation.
Inquiry →Product Overview
The XNAT-1000 AIS Tester automatically adapts to different types of AIS devices without requiring manual parameter configuration. It supports Class A AIS and Class B AIS testing through a large full-touch display and provides cloud-connected services through 4G, Wi-Fi, and other networking methods.
Key Features
- 8-inch high-brightness, wide-viewing-angle touch screen.
- Supports Class A AIS and Class B AIS detection.
- Supports operation through the touch screen or physical buttons, providing two operating methods.
- Supports 4G, Wi-Fi, and Bluetooth for data export and online upgrades.
- Built-in camera supports photo evidence capture and traceability of test results.
- Automatically generates test reports and supports historical test report queries.
Test / Operational Functions
TX&RX Test
Tests transmit performance and receive sensitivity, including transmit power, frequency, and receive sensitivity after connection to the device under test.
AIS Message Analysis
Analyzes messages received from surrounding AIS devices during the previous 30 minutes and indicates an abnormality when message collision occurs.
Antenna VSWR Test
Measures the voltage standing wave ratio of an AIS antenna at its operating frequency and determines whether it is operating normally against a VSWR threshold below 1.5.
Ship Emulation
Provides virtual-vessel message simulation, autonomous AIS position-message transmission using the built-in GNSS, and automatic inquiry requests using AIS messages 3, 5, 18, and 24.
Official Test Interface

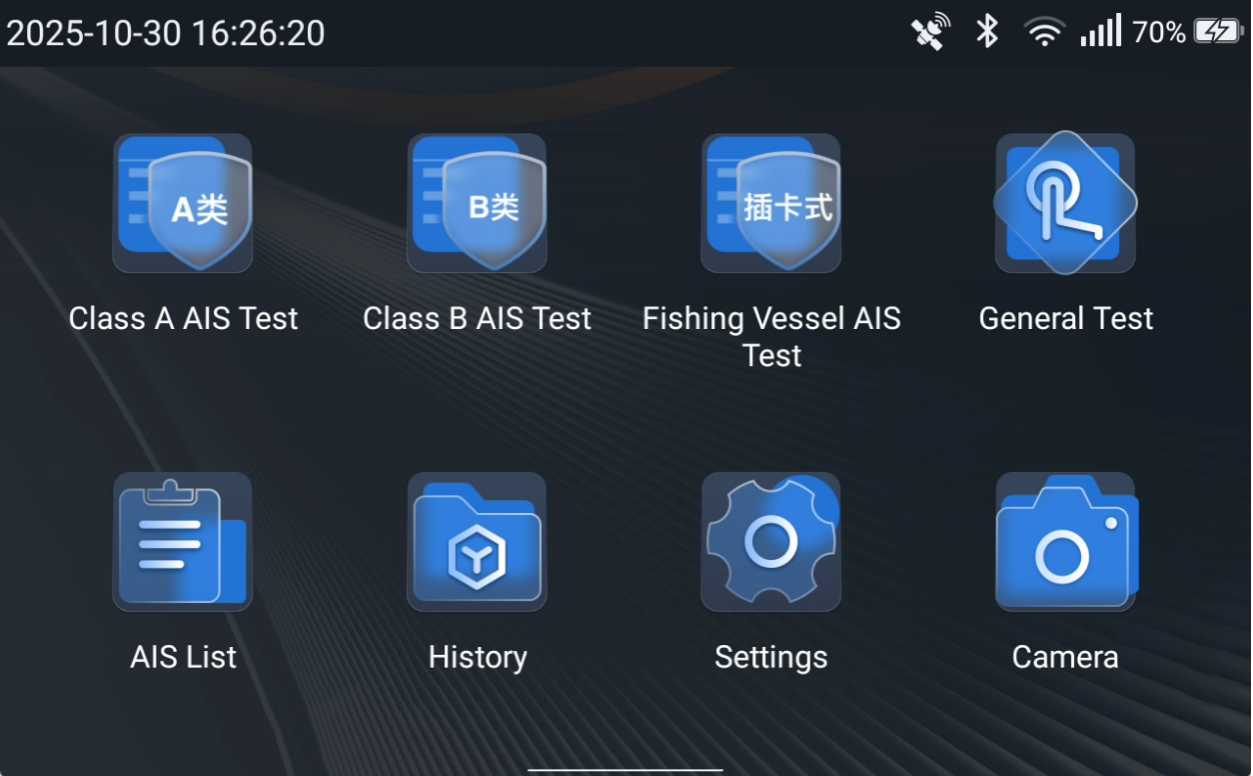

Test Selection
Direct access to Class A, Class B, general test, AIS list, history and settings workflows.

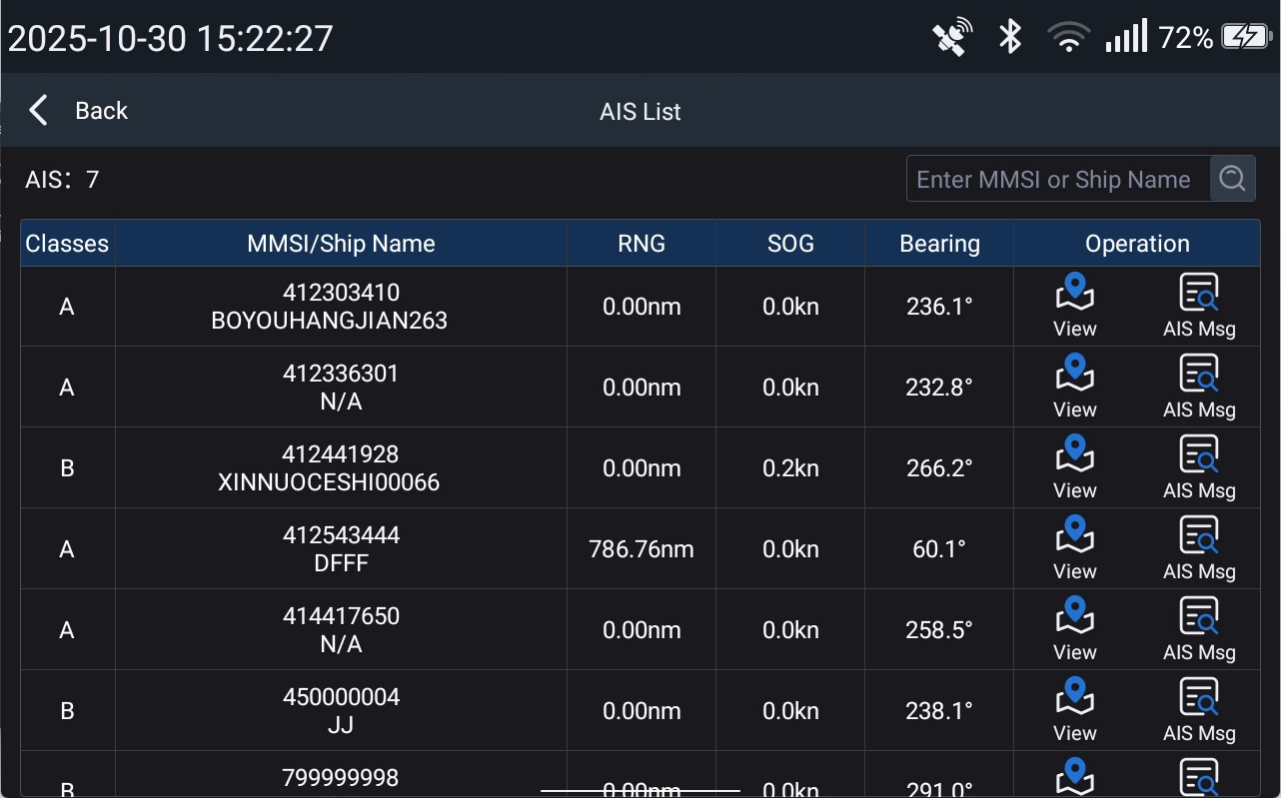

AIS List
Review detected AIS devices and open vessel or AIS-message information.

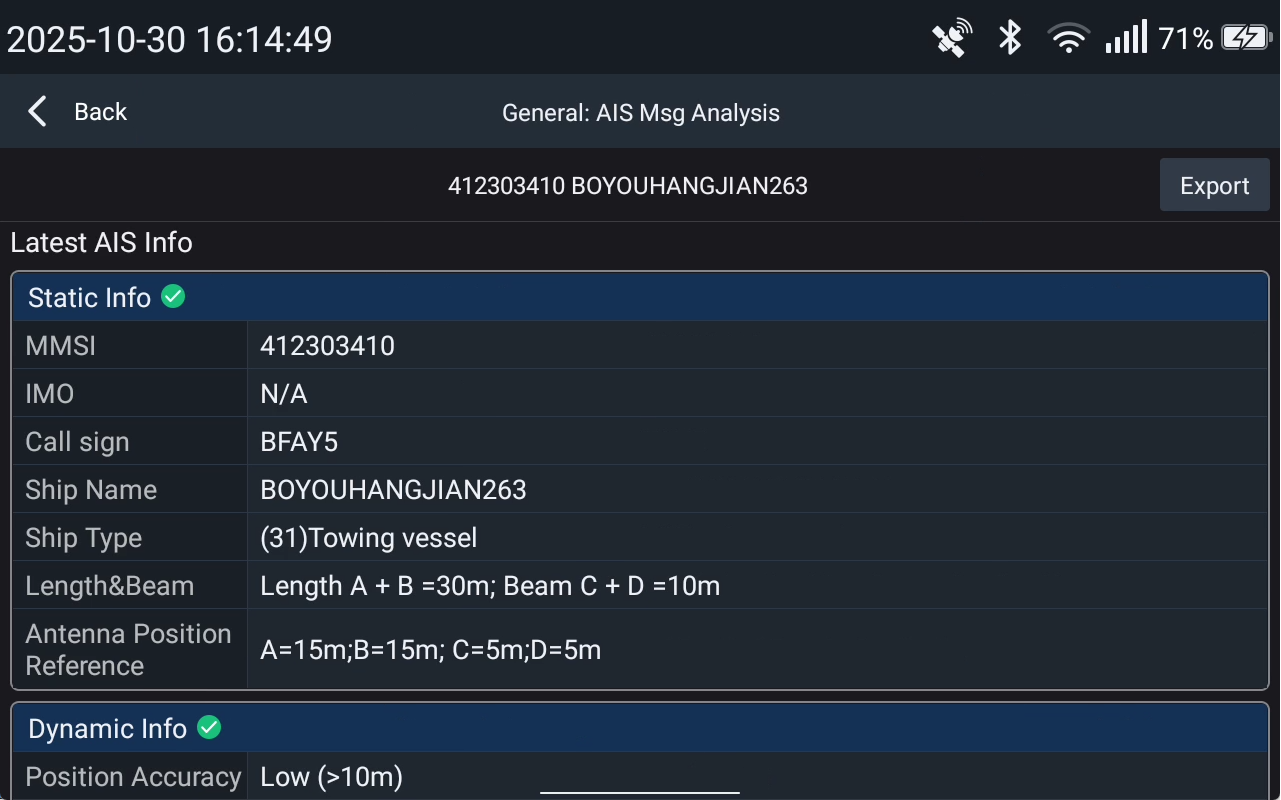

Message Analysis
Inspect reported static and dynamic AIS information during a test workflow.
Technical Information
| Model | XNAT-1000 |
|---|---|
| Product Type | AIS Tester |
| Test Frequency | AIS 1: 161.975MHz; AIS 2: 162.025MHz; DSC 70: 156.525MHz |
| Modulation Mode | GMSK |
| Power Measurement | 10dBm to 43dBm (0.01 to 20W) |
| Receiving Sensitivity | -120dBm to -70dBm |
| Antenna Standing Wave Ratio | <1.5 |
| Lithium-ion Battery | 6000mAh, 7.4V |
| Input Power | DC5V-20V, 2.5A MAX; supports PD fast charging |
| Type-C Charging | 30W MAX |
| Display Size | 8 inch |
| Touch | Full-lamination touch screen |
| Brightness | 500 cd/m² (Max) |
| Resolution | 1280 × 800 |
| Overall Dimensions | 233.9 × 169.4 × 51.5 mm |
| Weight | 1.16 kg / 2.56 lb |
