AIS Presentation
Dedicated AIS views present target, vessel-distribution and statistical information for operational review.
Class A AIS / XINUO
XA-198
A Class A Automatic Identification System available with six verified color LCD touch-screen display configurations from 7 to 21.5 inches.
Inquiry →Product Overview

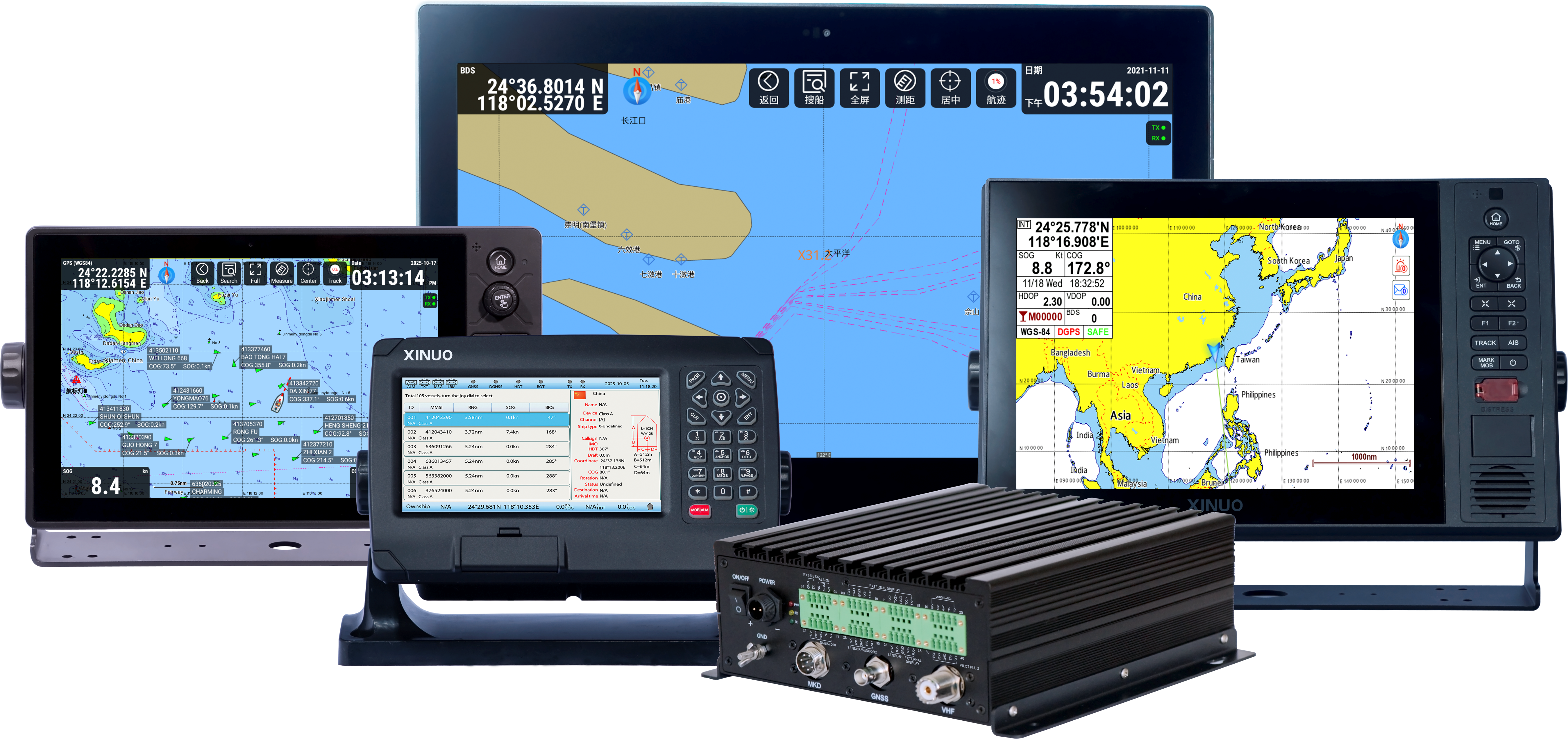

XA-198 is a Class A Automatic Identification System offered with six color LCD touch-screen display options. The available configurations cover 7-inch, 8-inch, 10.1-inch, 12.1-inch, 15.6-inch and 21.5-inch displays.
Key Features
- Class A AIS transponder and presentation functions in one system.
- 7-inch 800×480 main display with catalogue-described high-brightness, wide-view presentation.
- GPS and BDS positioning support with GNSS information display.
- AIS radar view, surrounding-vessel distribution and statistical information.
- CPA information, vessel history and destination review.
- Chart and route presentation for voyage awareness.
- Voice and alarm broadcast functions.
- External data interfaces for supported onboard integration.
Navigation / AIS Functions

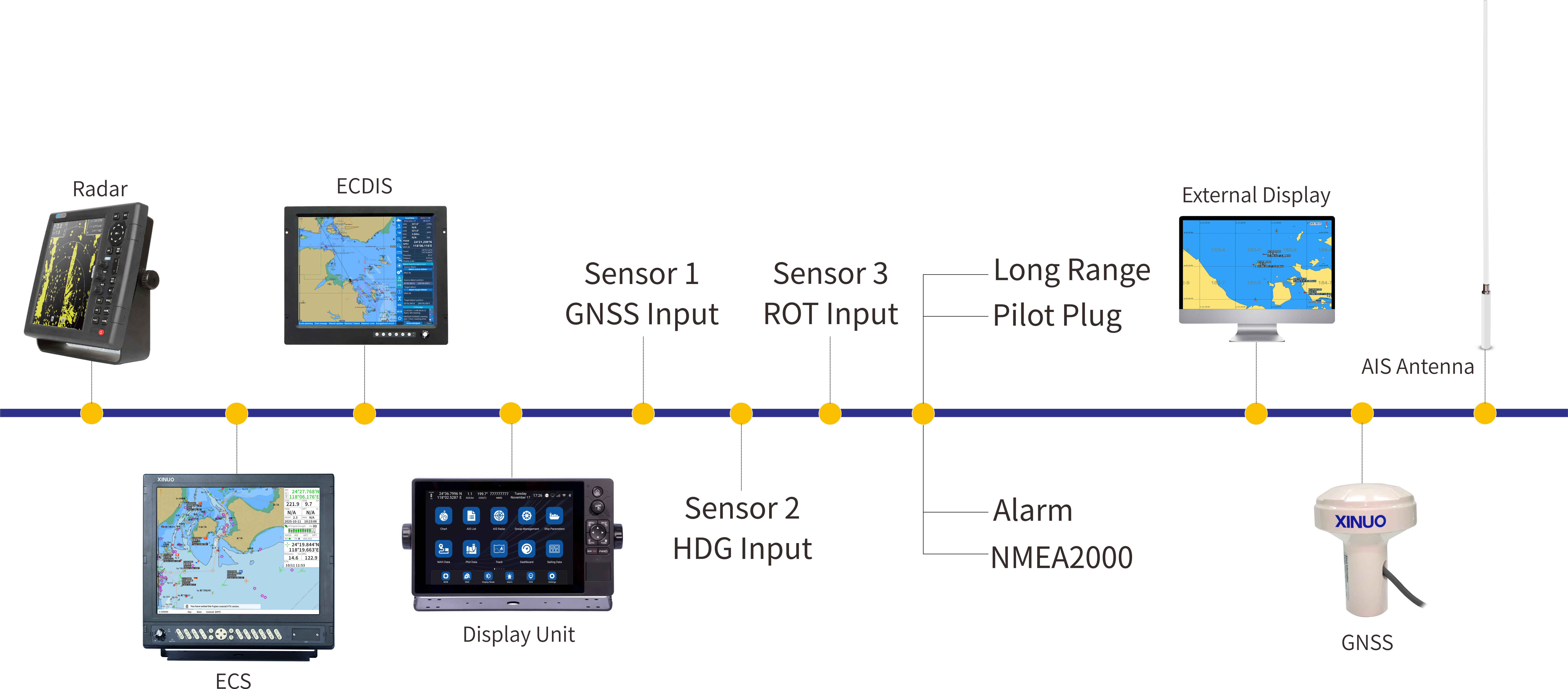

Onboard Interfaces

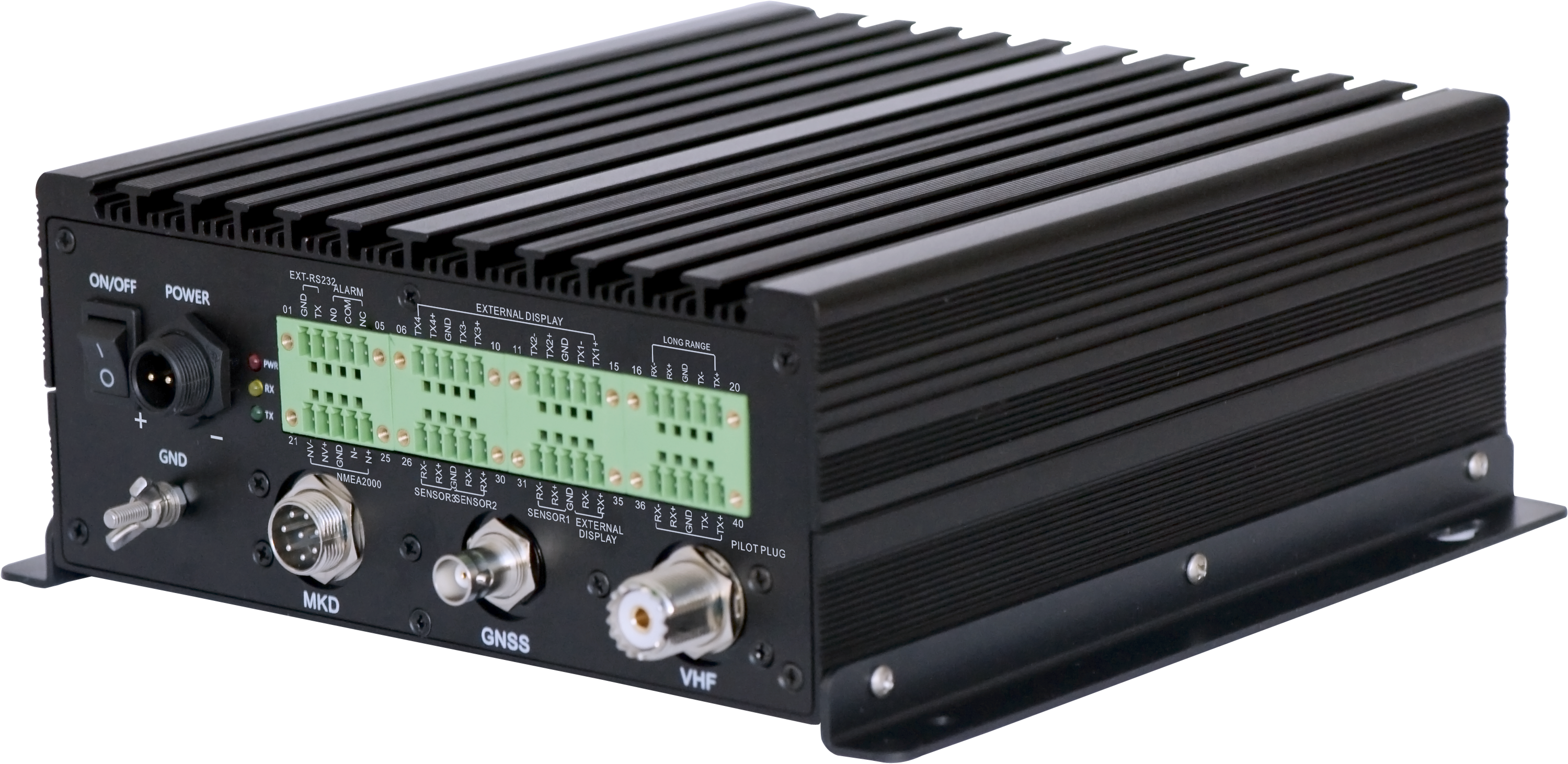

Original product imagery documents the physical data and antenna interfaces provided for supported onboard connections.
System Configuration
The host unit supports the display configurations documented in the official product material.
Display / Configuration Options
| Display size | Display type | Resolution |
|---|---|---|

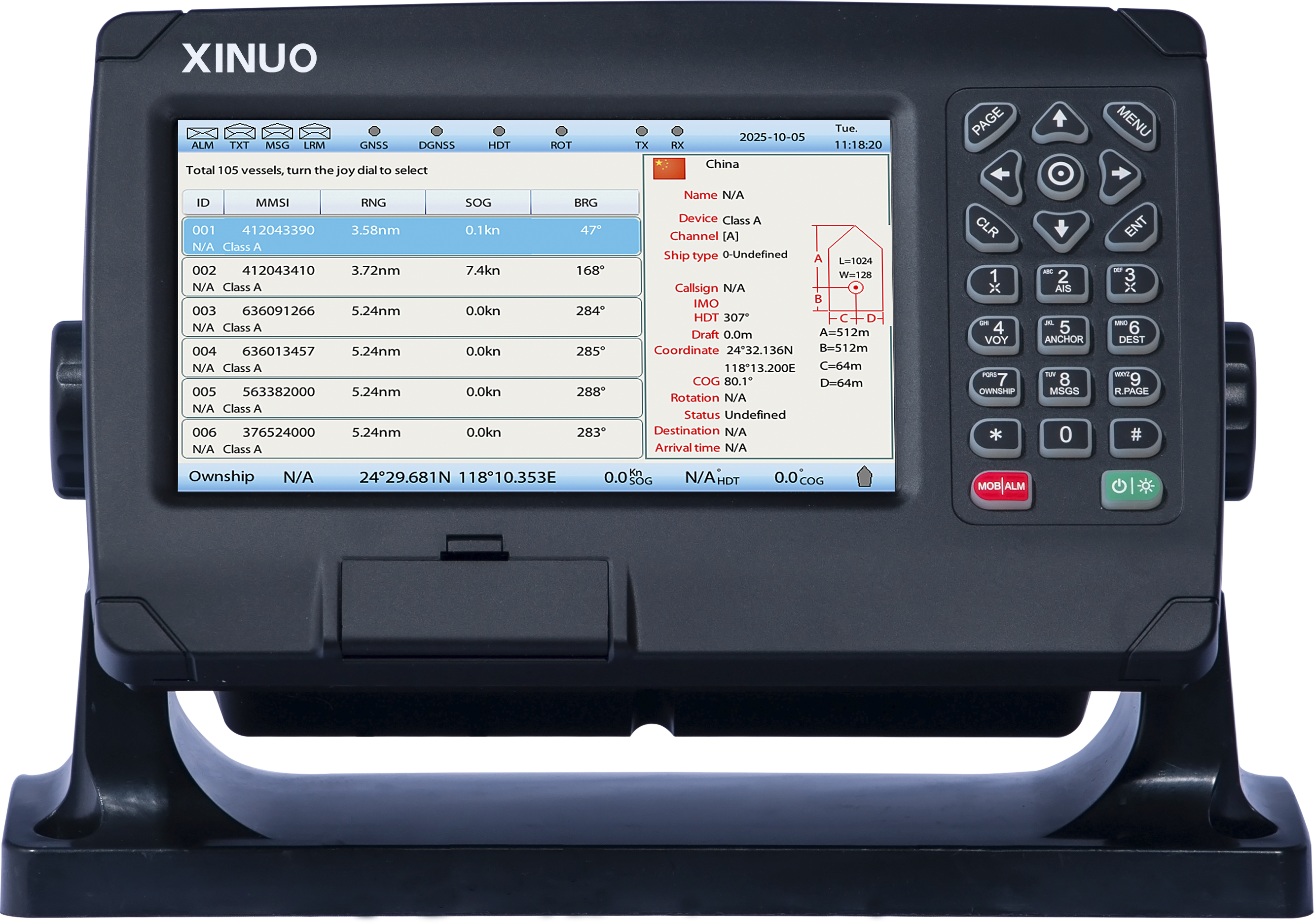

| 7-inch | Color LCD touch screen | 800 × 480 |

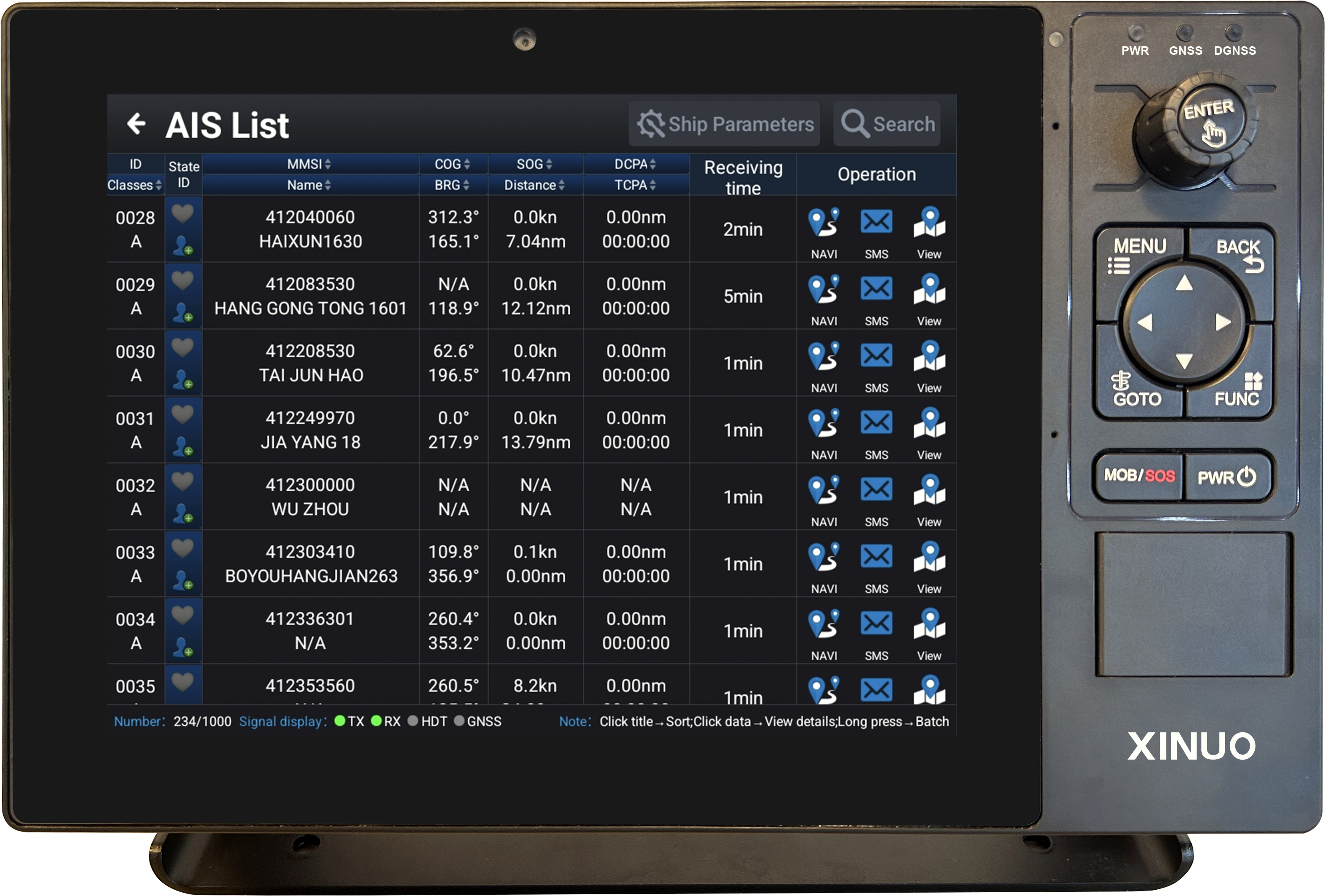

| 8-inch | Color LCD touch screen | 1024 × 768 |

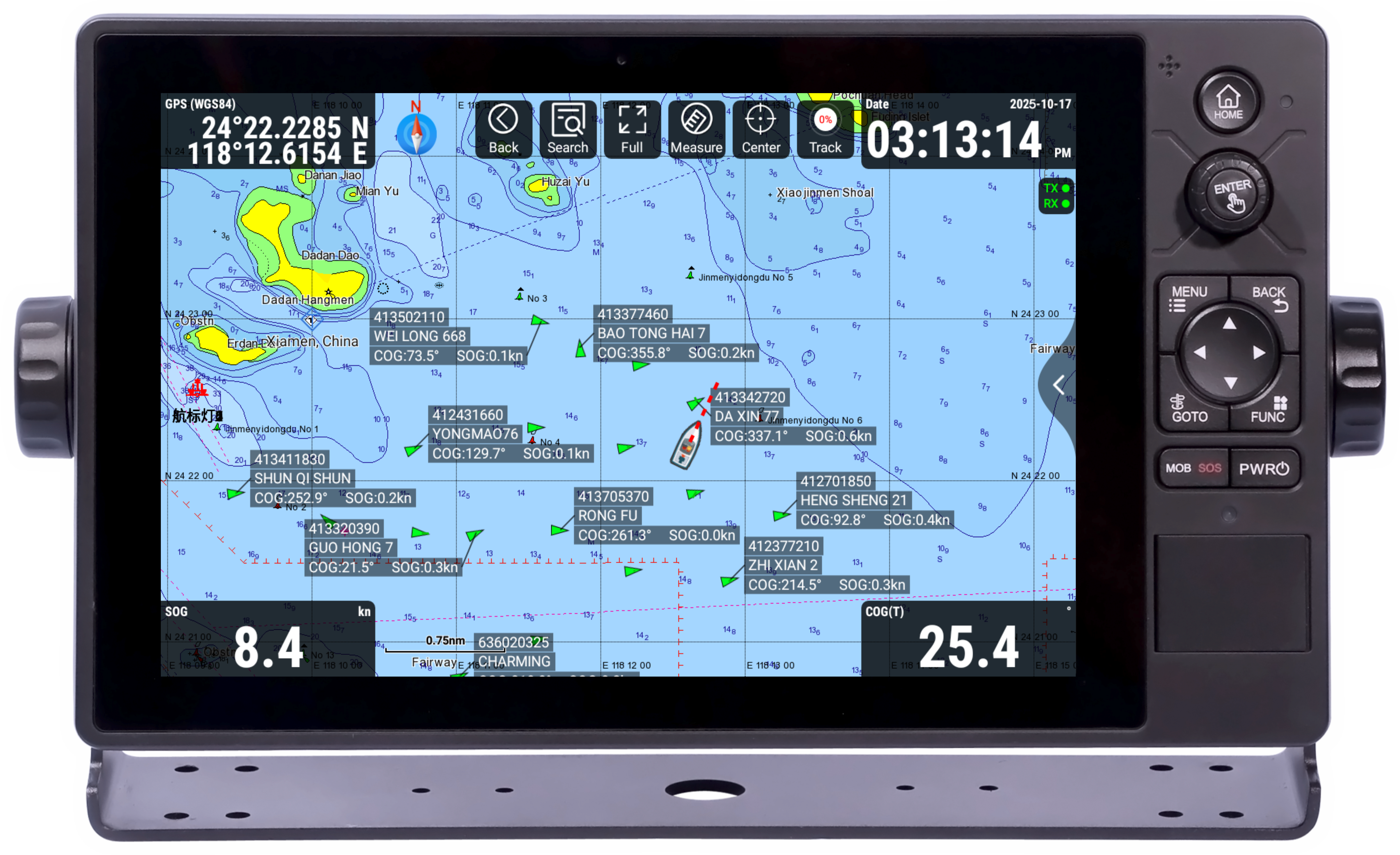

| 10.1-inch | Color LCD touch screen | 1280 × 800 |

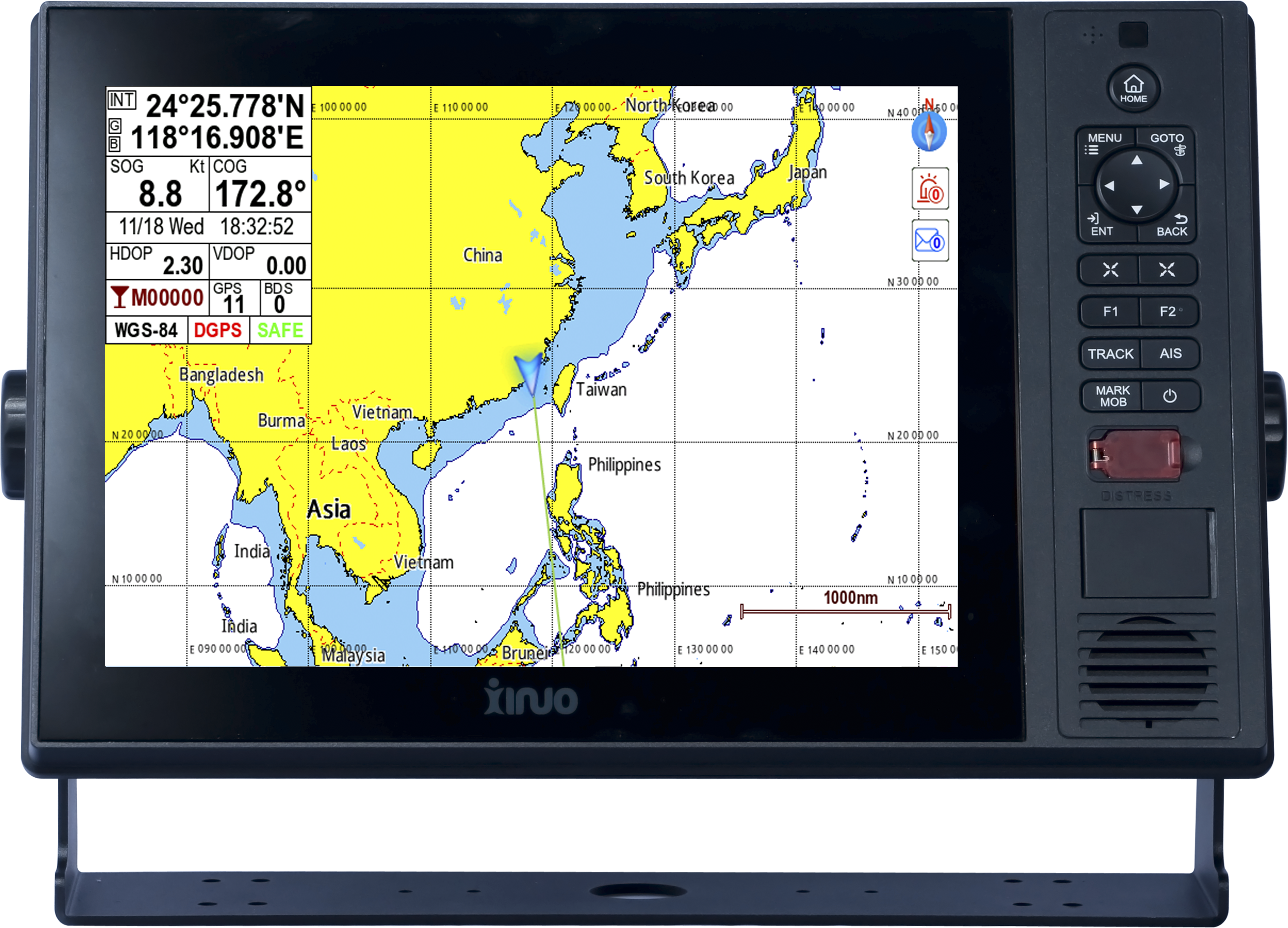

| 12.1-inch | Color LCD touch screen | 1024 × 768 |

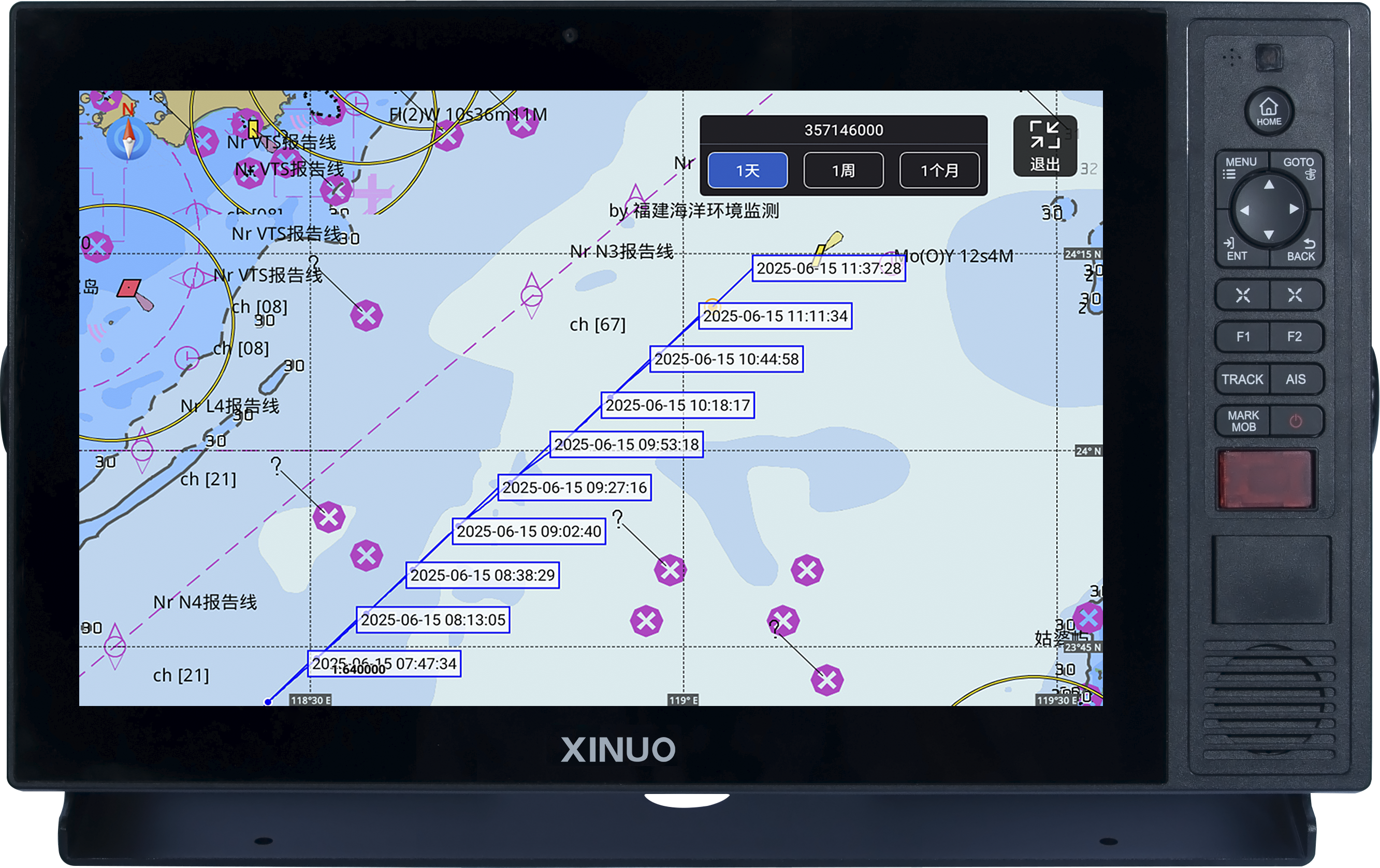

| 15.6-inch | Color LCD touch screen | 1920 × 1080 |

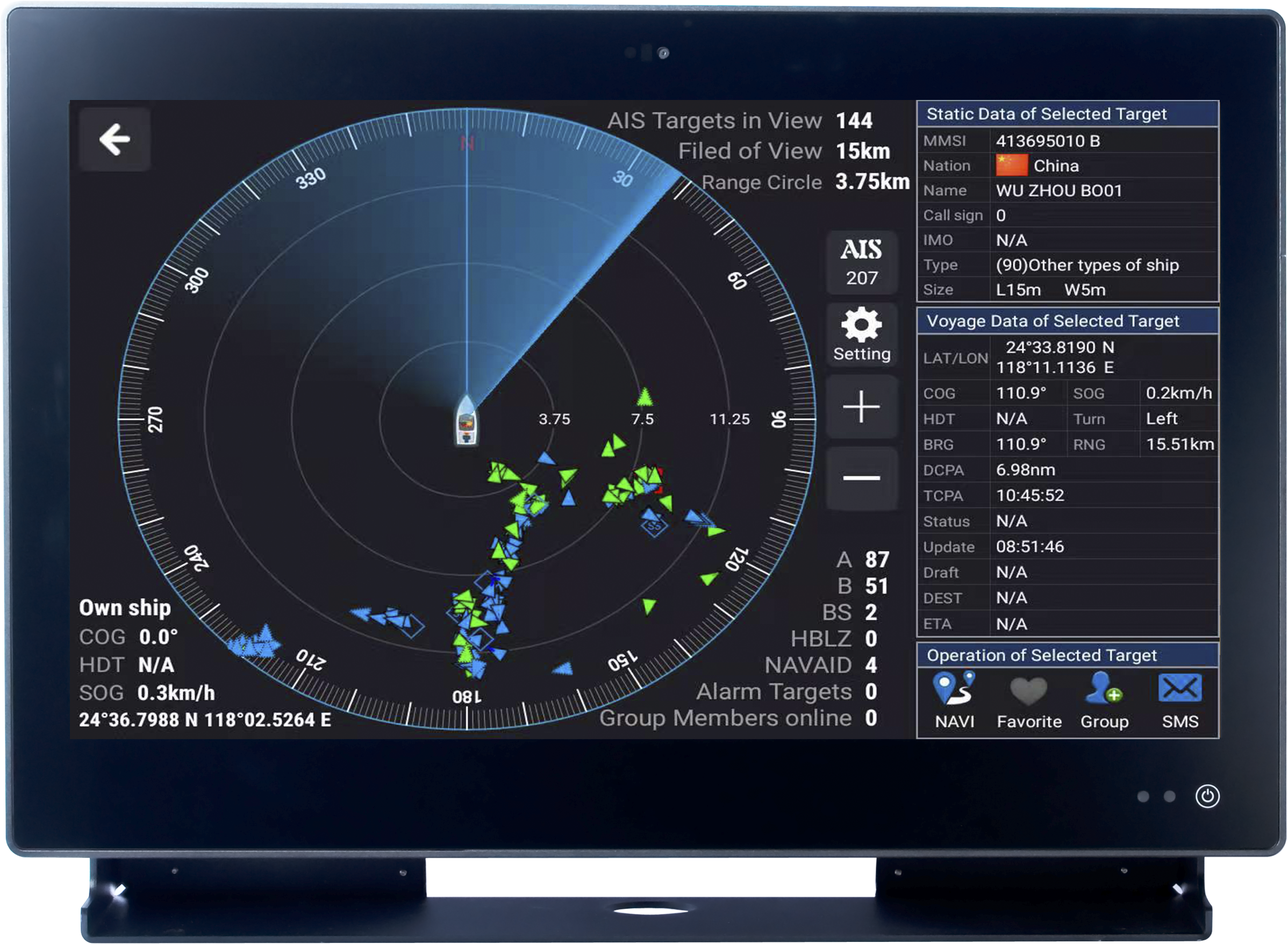

| 21.5-inch | Color LCD touch screen | 1920 × 1080 |
