Intelligent CPA Alarm
Plots encounter lines in real time, calculates collision risk and provides intelligent voice alerts.
XINUO / CLASS B AIS
Class B AIS
Integrated Class B AIS and high-precision positioning across XF and HM display formats for vessel awareness, navigation and fleet management.
Product Overview
The XF and HM family combines a full-function Class B AIS transceiver with chartplotter presentation. The range spans 5-inch through 17-inch displays, with model-specific resolution, brightness, interface and power configurations.
NAVIGATION & AWARENESS
Key Features
AIS Target View
Displays up to 2,000 recently received vessel records and presents nearby ship distribution on AIS radar.
Positioning
Supports GPS and BeiDou positioning, including second- and third-generation BeiDou satellites.
Online Updates
4G and Wi-Fi connectivity support online software and chart updates.
Navigation Display
Eccentric own-ship presentation expands the visible navigation area ahead of the vessel.
Fleet Management
Track recording and ship-group management support organised monitoring and vessel operations.
PRODUCT RANGE
Display configurations
Each XF model corresponds to an HM-5900BD display size in the published Class B AIS family.
| Model | Display | Resolution | Brightness | Power |
|---|---|---|---|---|

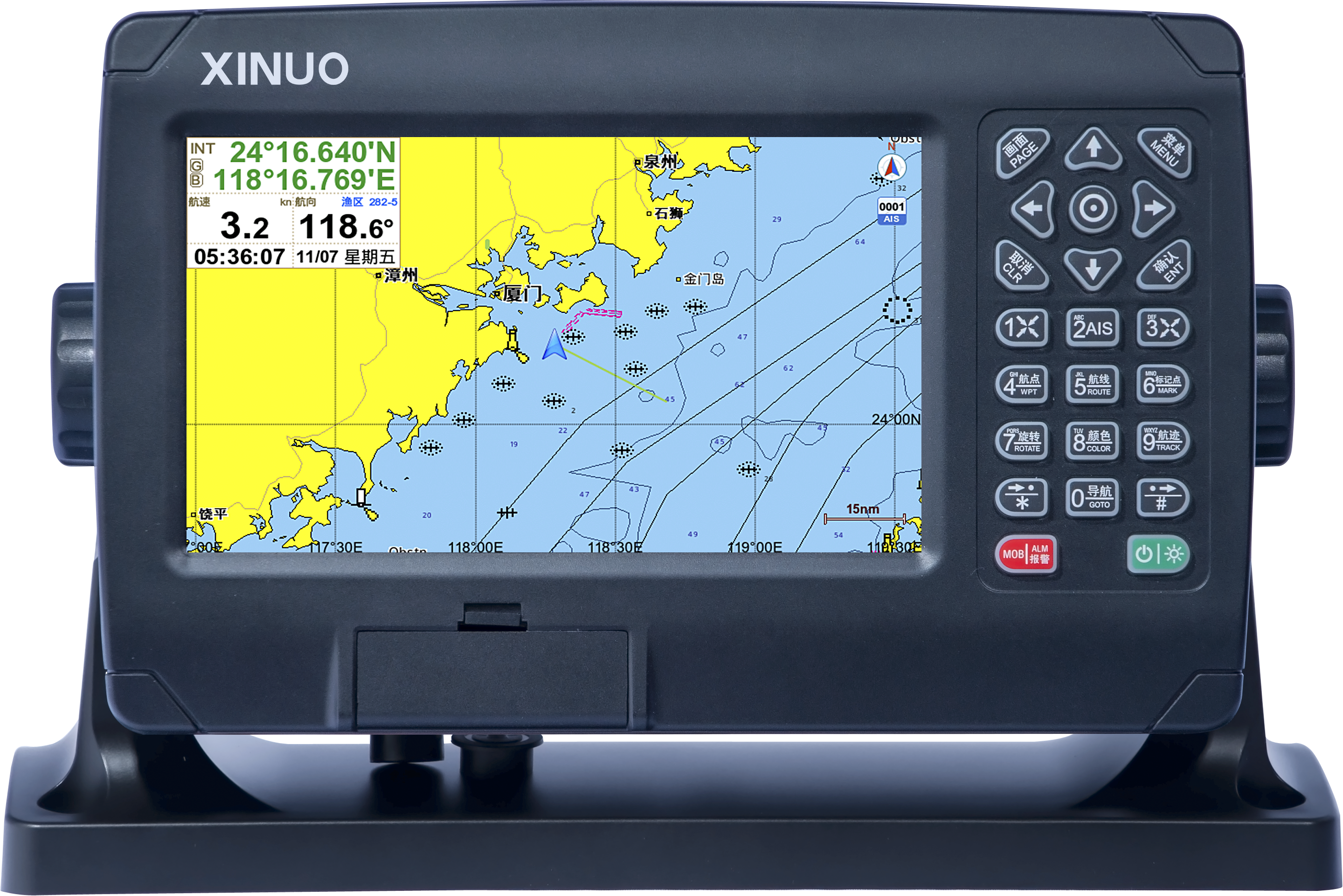

| XF-520A / HM-5900BD | 5-inch | 800 × 480 | 500 cd/m² | 10 W @ 24 VDC |
| XF-607B / HM-5900BD | 7-inch | 800 × 480 | 500 cd/m² | 16 W @ 24 VDC |

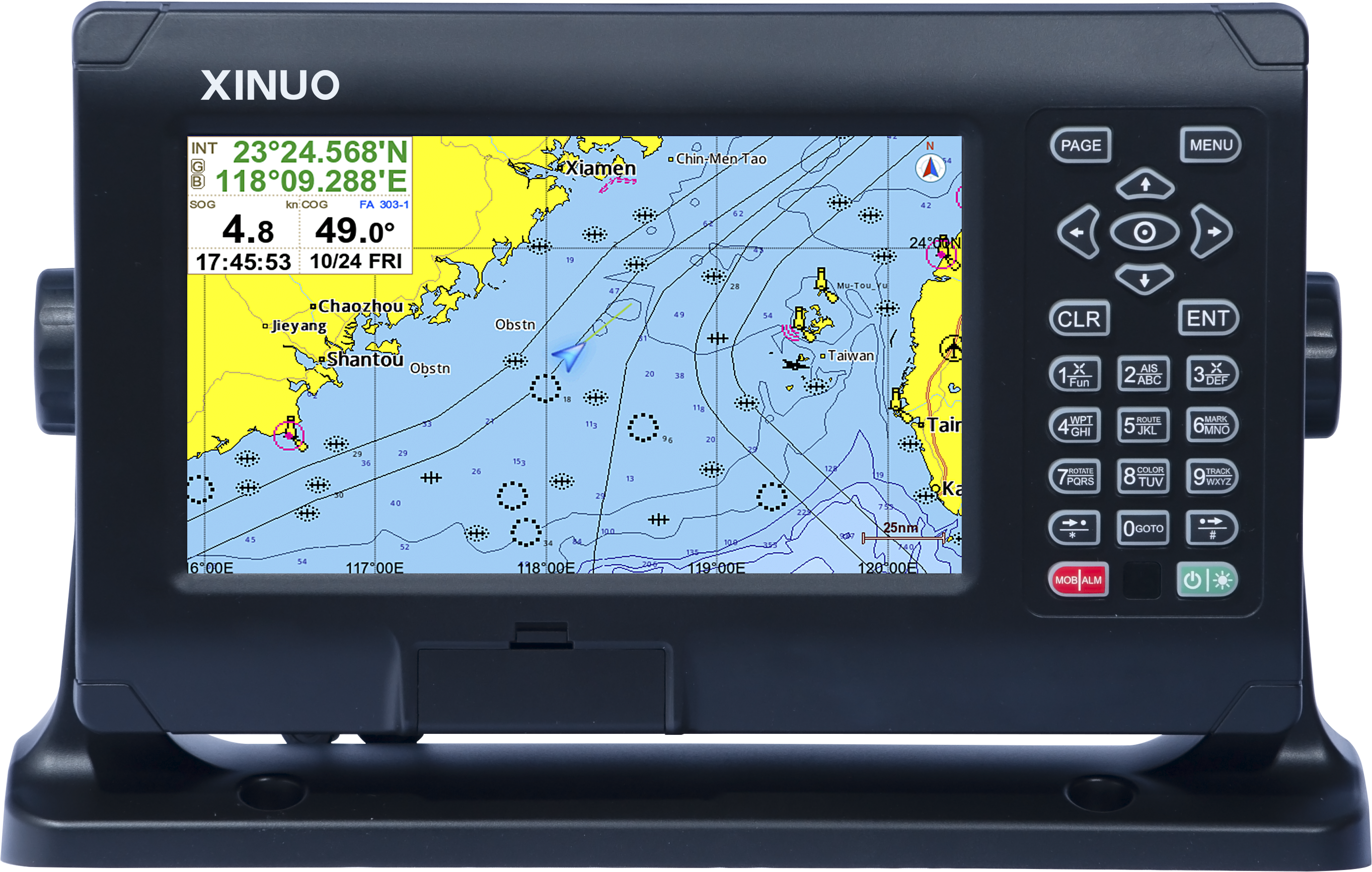

| XF-808B / HM-5900BD | 8-inch | 800 × 480 | 450 cd/m² | 16 W @ 24 VDC |
| XF-1069B / HM-5900BD | 10-inch | 800 × 600 | 300 cd/m² | 18 W @ 24 VDC |
| HM-5912N / HM-5900BD | 12.1-inch | 800 × 600 / 1024 × 768 | 400 / 600 cd/m² | 16 W @ 24 VDC |

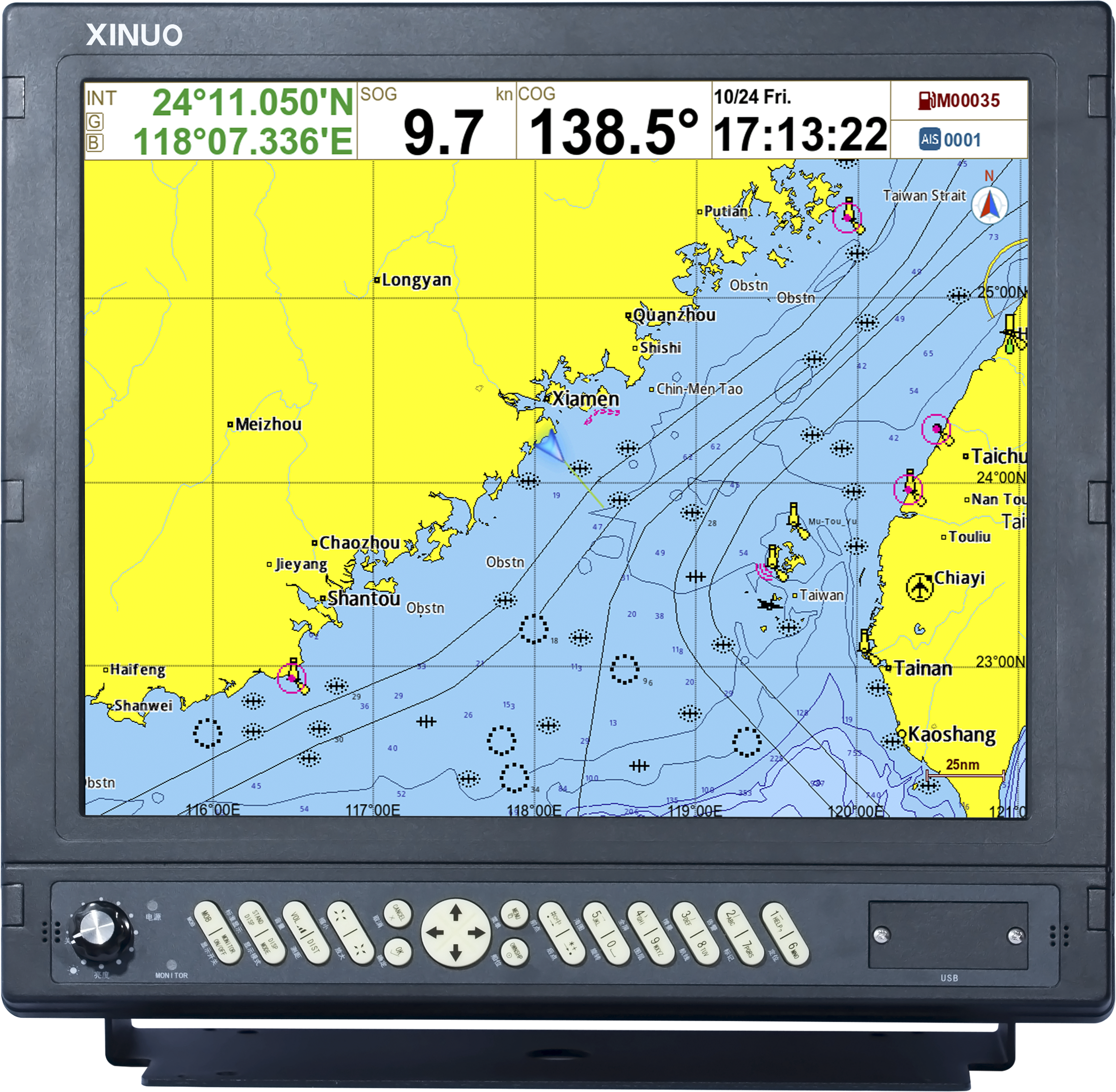

| HM-5915 / HM-5900BD | 15-inch | 1024 × 768 | 450 cd/m² | 35 W @ 24 VDC |

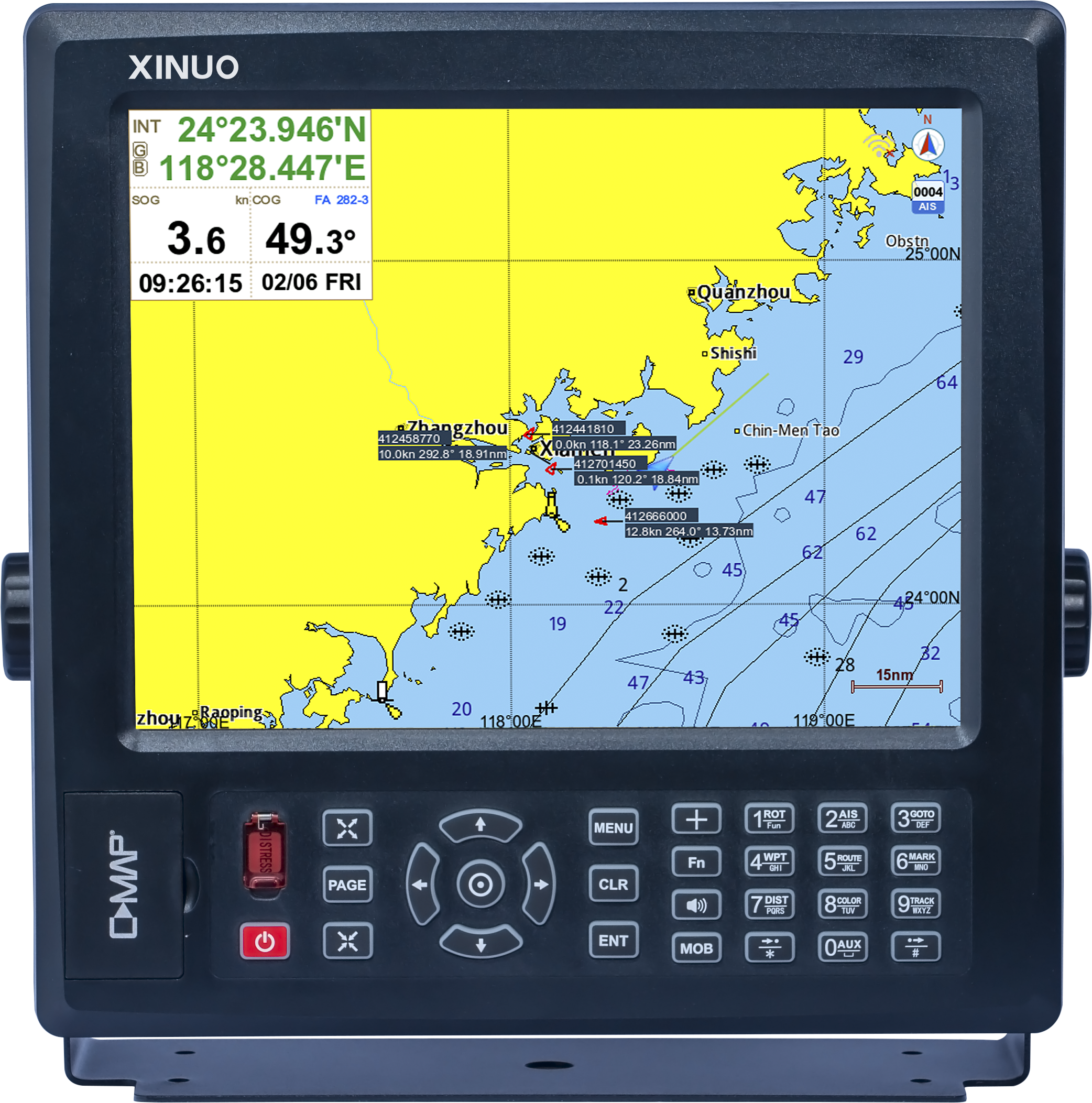

| HM-5917 / HM-5900BD | 17-inch | 1280 × 1024 | 500 cd/m² | 37 W @ 24 VDC |
CORE SPECIFICATIONS
Class B AIS and navigation data
AIS Transceiver
- Frequency range
- 156.025–162.025 MHz
- Channel bandwidth
- 25 kHz
- Modulation / data rate
- GMSK / FM · 9,600 bps
- Channels
- AIS 1: 161.975 MHz · AIS 2: 162.025 MHz
- Transmitter / receivers
- 1 / 2
- Output power
- 2 W
GNSS & Interface
- GNSS channels
- 72
- Position accuracy
- GPS + BDS: 2.5 m · GPS: 5 m · BDS: 5 m
- Speed accuracy
- 0.1 m/s
- Wi-Fi
- IEEE 802.11 b/g/n
- Data interface
- Model-specific NMEA 0183 input and output
- Protection
- IP65
DISPLAY & MEMORY
Navigation modes and capacity
Display modes include Standard Chart, Pure Chart, Simple Chart, AIS Data, Sailing Data, GNSS, 3D Navigation and Compass.
- 50,000 waypoints
- 50,000 markers
- 500 routes, up to 200 waypoints each
- 1,000 tracks
- 1,600,000 track points
Class B AIS
Tell HNC about the required display size, vessel and integration environment.
