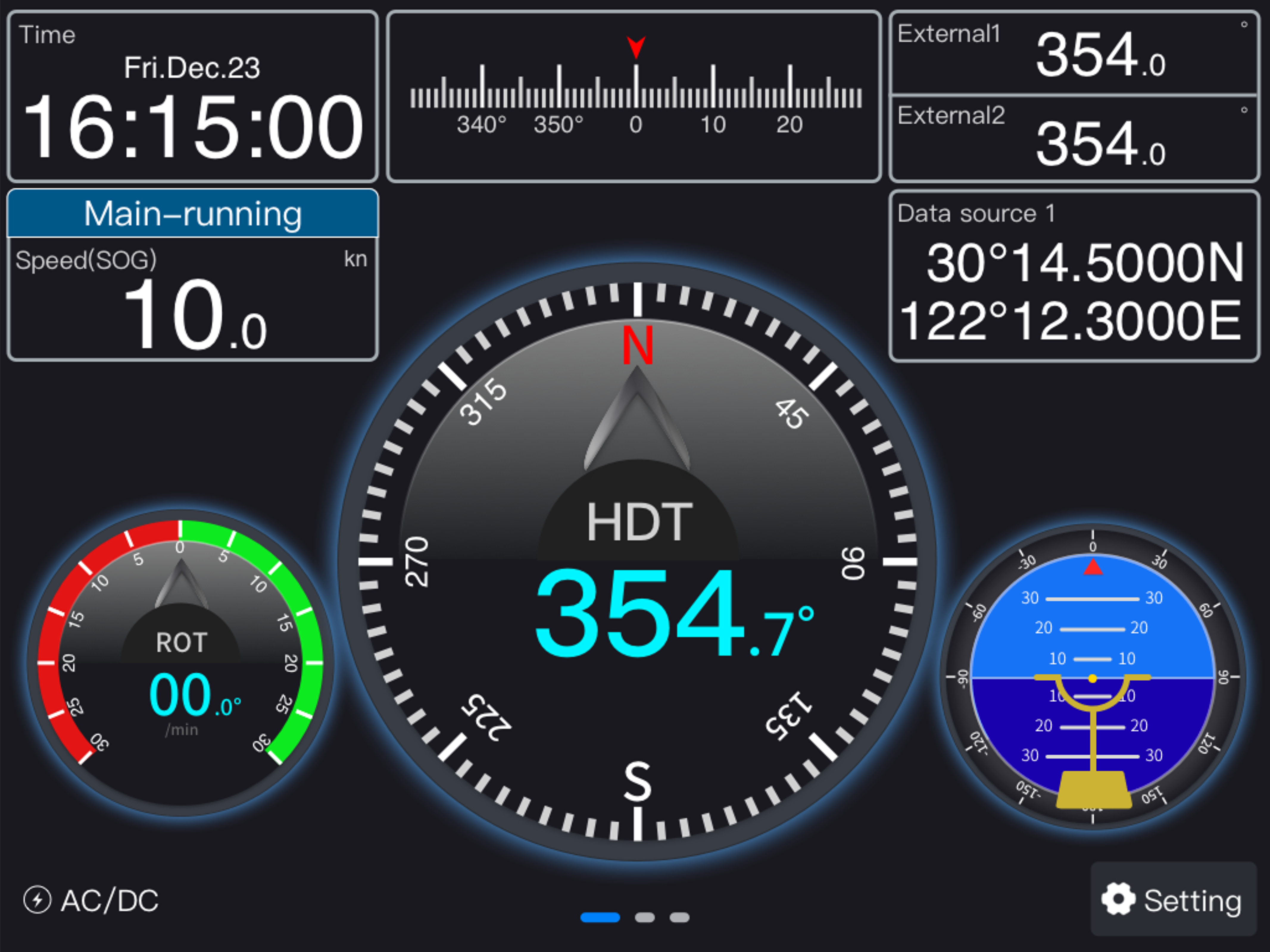

Ergonomically Engineered Design
Provides a simple, user-friendly interface combining ergonomic interaction for efficient, convenient operation.
Gyrocompass / XINUO

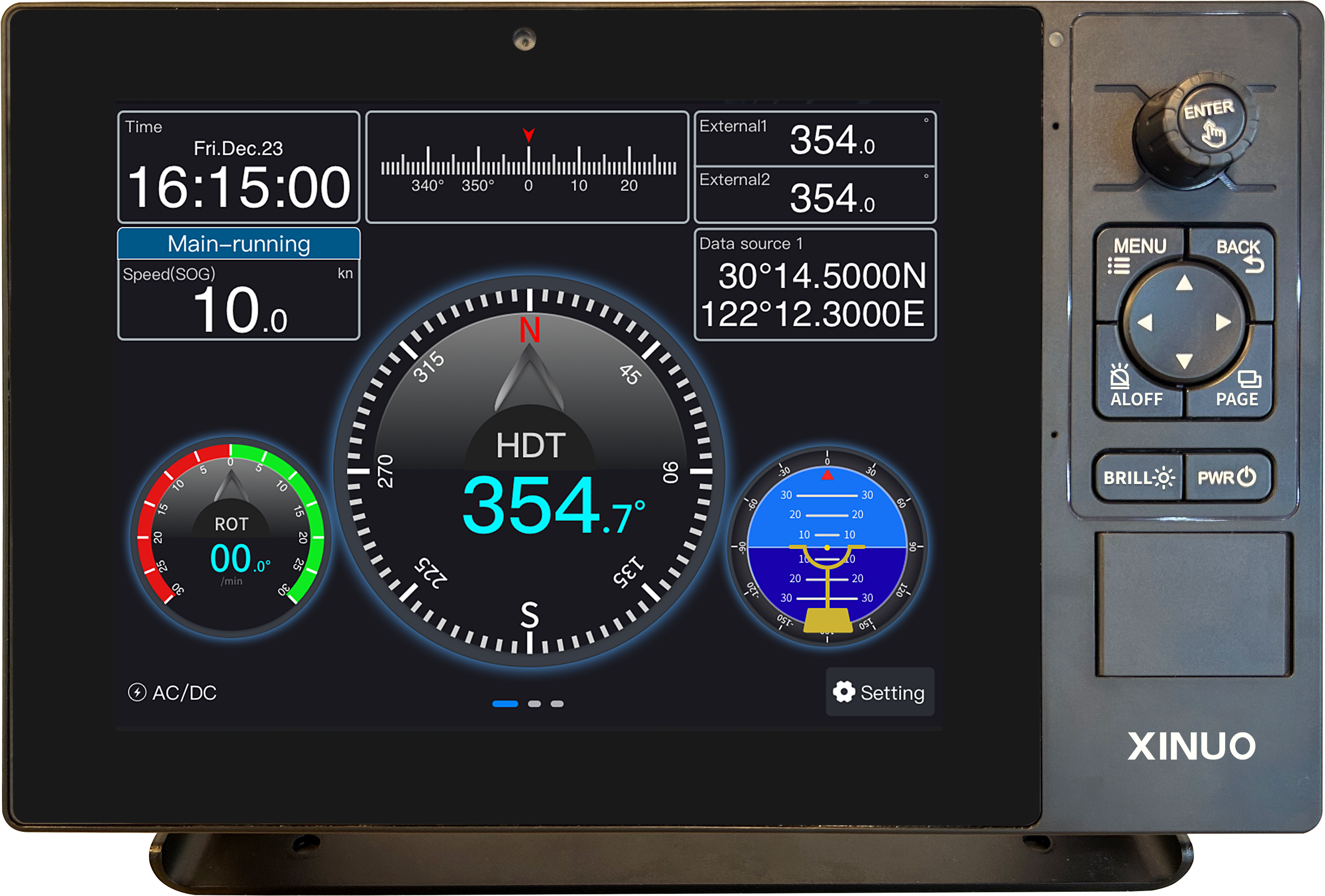

XSC-510
A fiber optic gyrocompass designed to enhance the accuracy and reliability of maritime navigation.
Inquiry →Product Overview

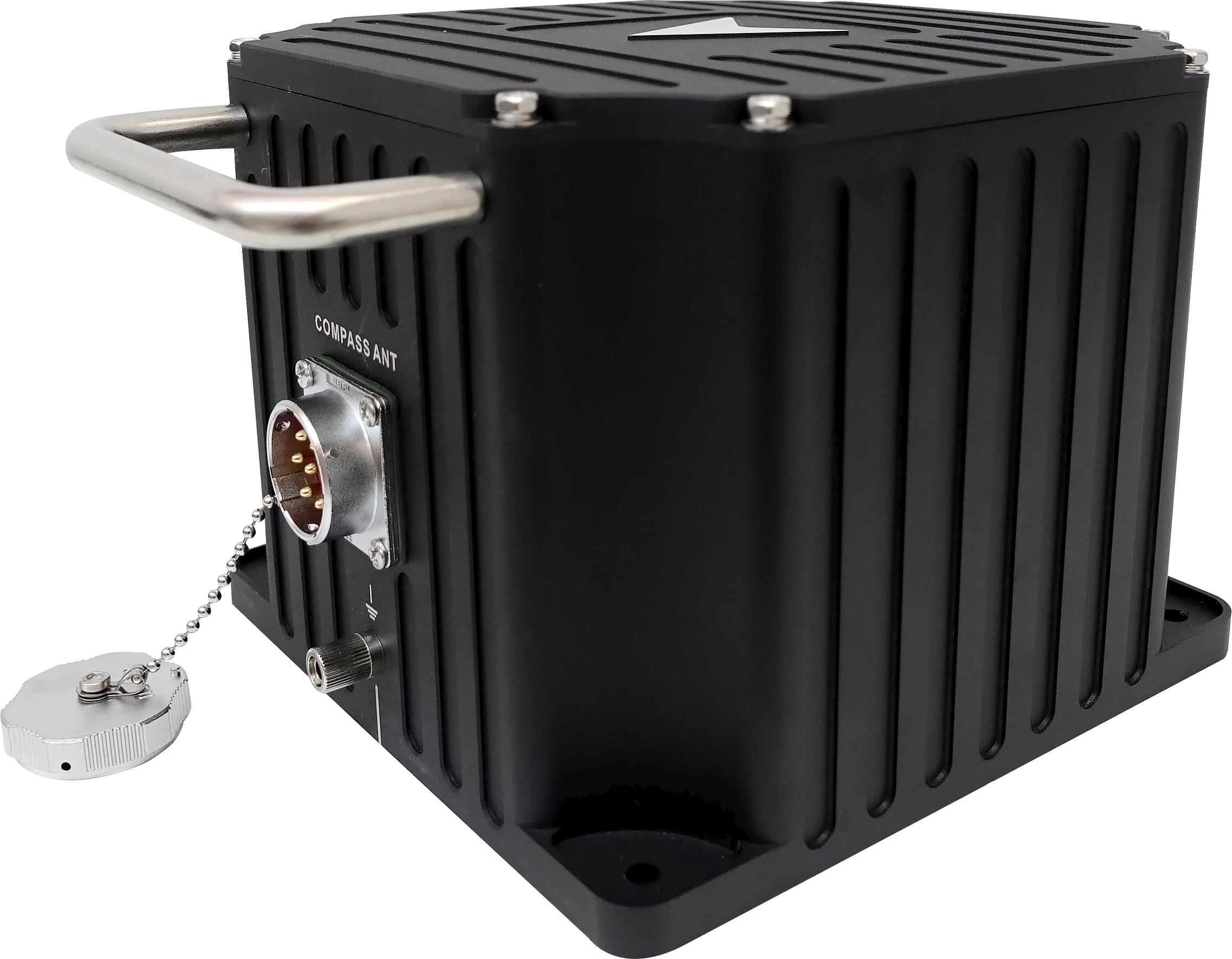

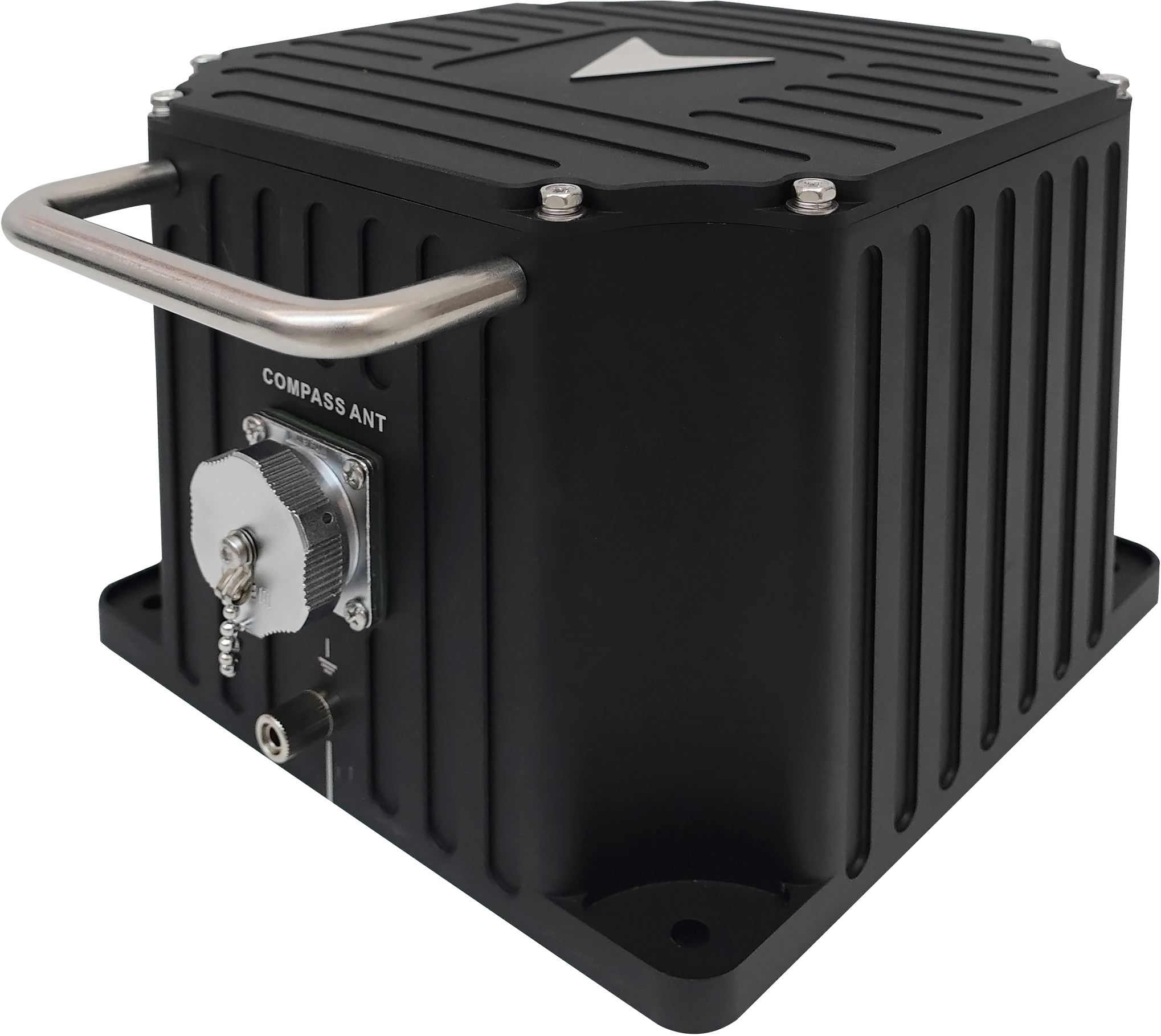

The XSC-510 Fiber Optic Gyrocompass is specially designed to enhance the accuracy and reliability of maritime navigation. It integrates high-precision closed-loop fiber optic gyroscopes, accelerometers, GNSS modules, and display units, continuously providing critical information such as true heading, roll angle, pitch angle, position, and speed. Featuring fast startup, lightweight design, long lifespan, easy maintenance, low power consumption, and cost-effectiveness, it offers an efficient and reliable navigation solution for various vessels.
Key Features
- Stable and accurate heading measurements under various complex sea conditions.
- High sampling rate, high-precision motion compensation algorithms, and Kalman filtering technology.
- Quick-response measurements with heading accuracy ≤0.1° and roll/pitch accuracy ≤0.1°.
- Base alignment and rapid north-seeking even without GNSS assistance or known latitude information.
- Fully solid-state with no moving parts, resulting in low failure rates and resilience against turning, frequent maneuvers, and power interruptions.
- Initial alignment time of less than 10 minutes.
- DC24V standard power supply.
- Extended service life, high reliability, stability, low power consumption, and low maintenance costs.
Display / Operational Functions

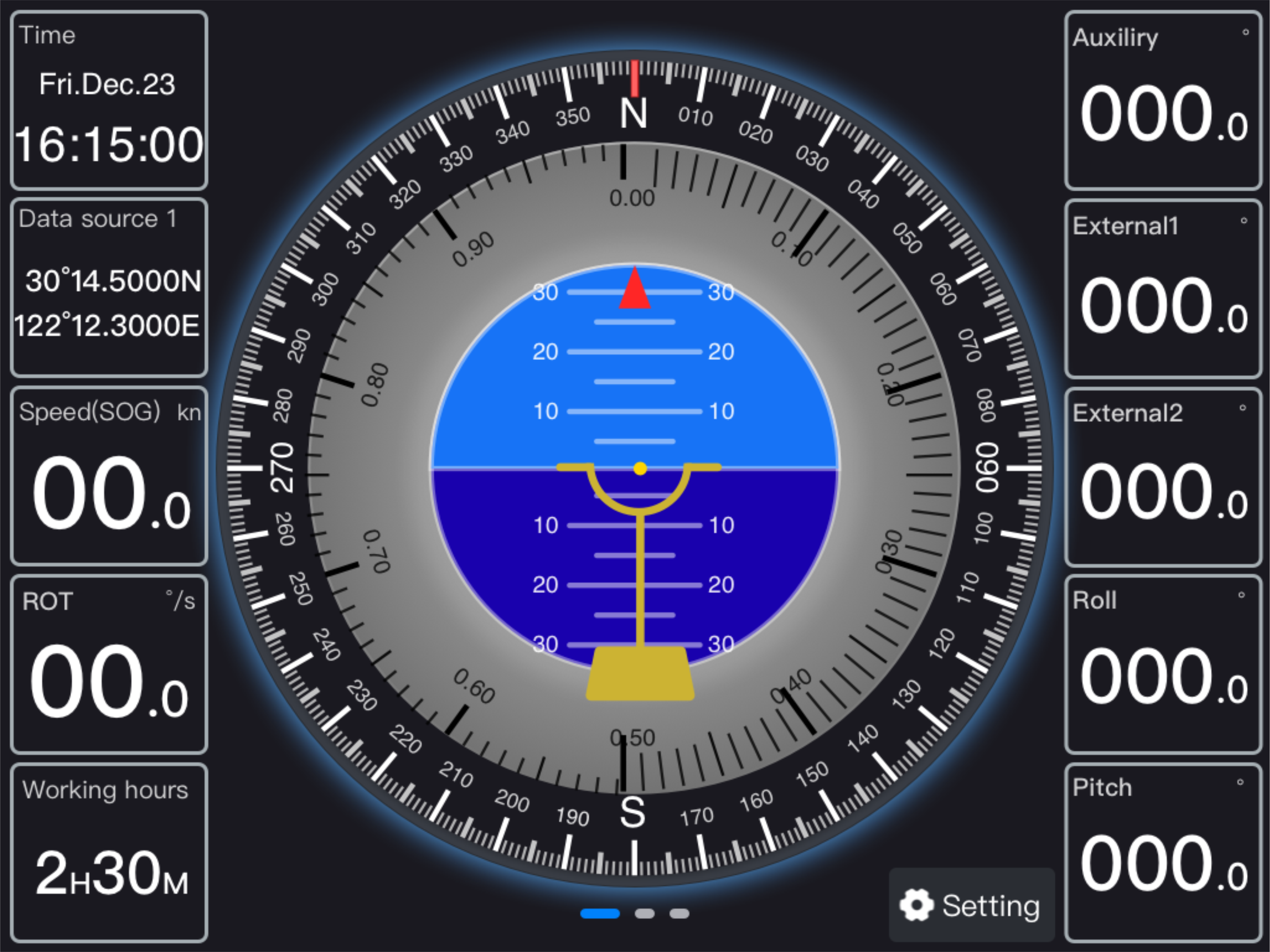

Multiple Display
Offers various screen styles to match different usage scenarios and address diverse needs.

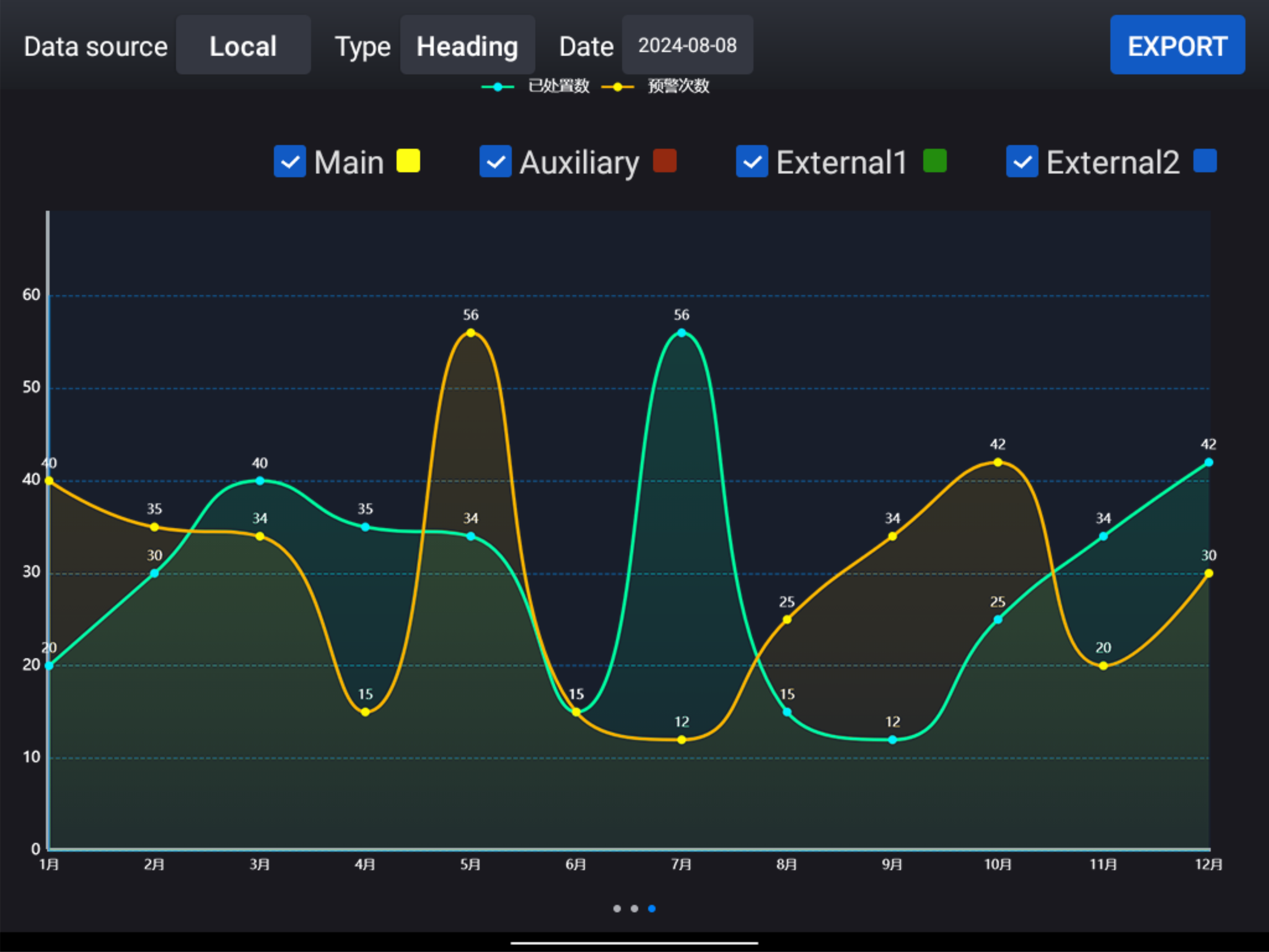

Real-Time Heading Data Recording
Records HDT, roll, pitch, and ROT, automatically generating curves for backtracking and analysis to support navigation decisions.

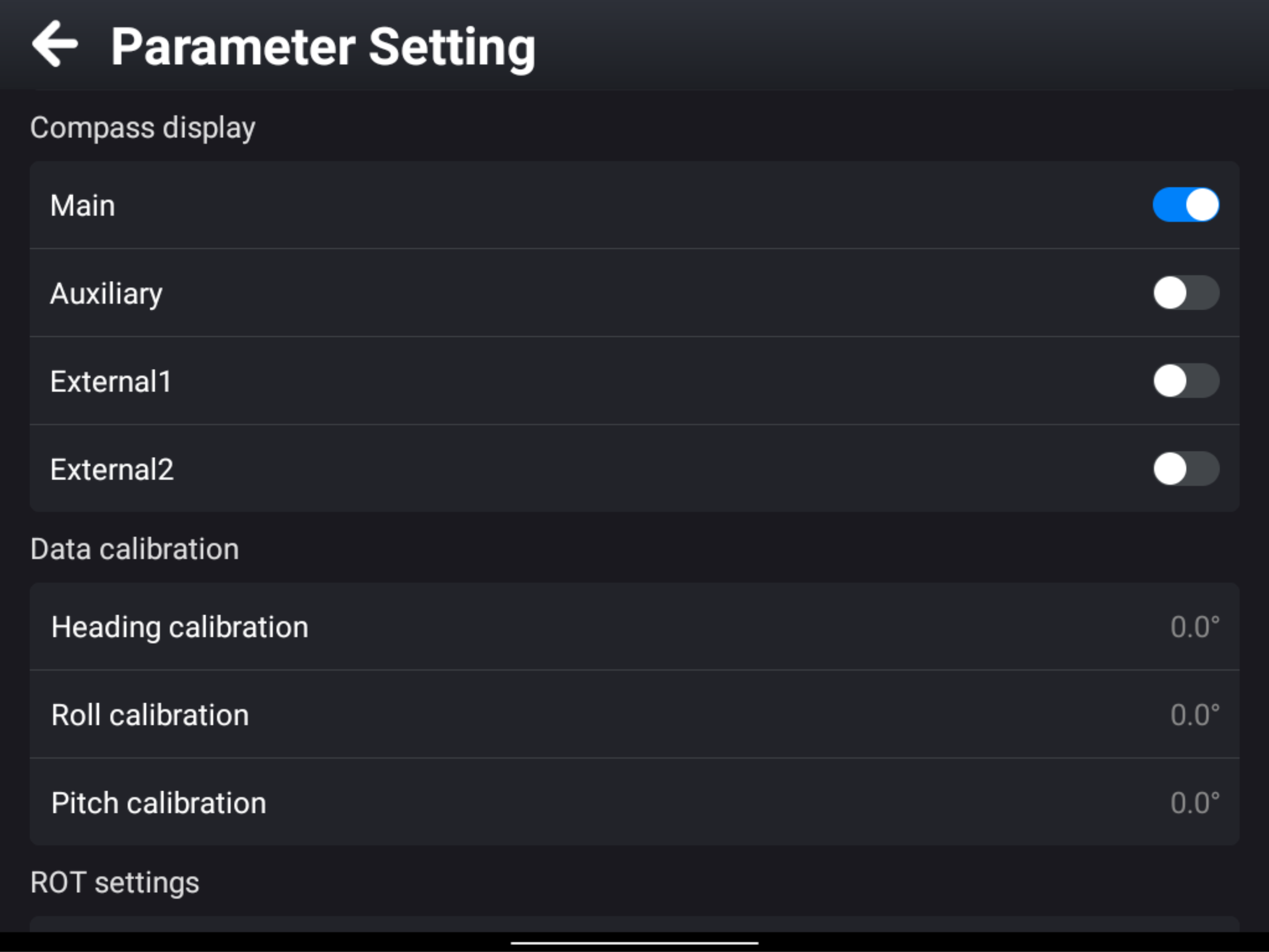

Redundant and Reliable
Supports primary and secondary compass inputs with intelligent fault switching, maintaining continuous stability and reliability.

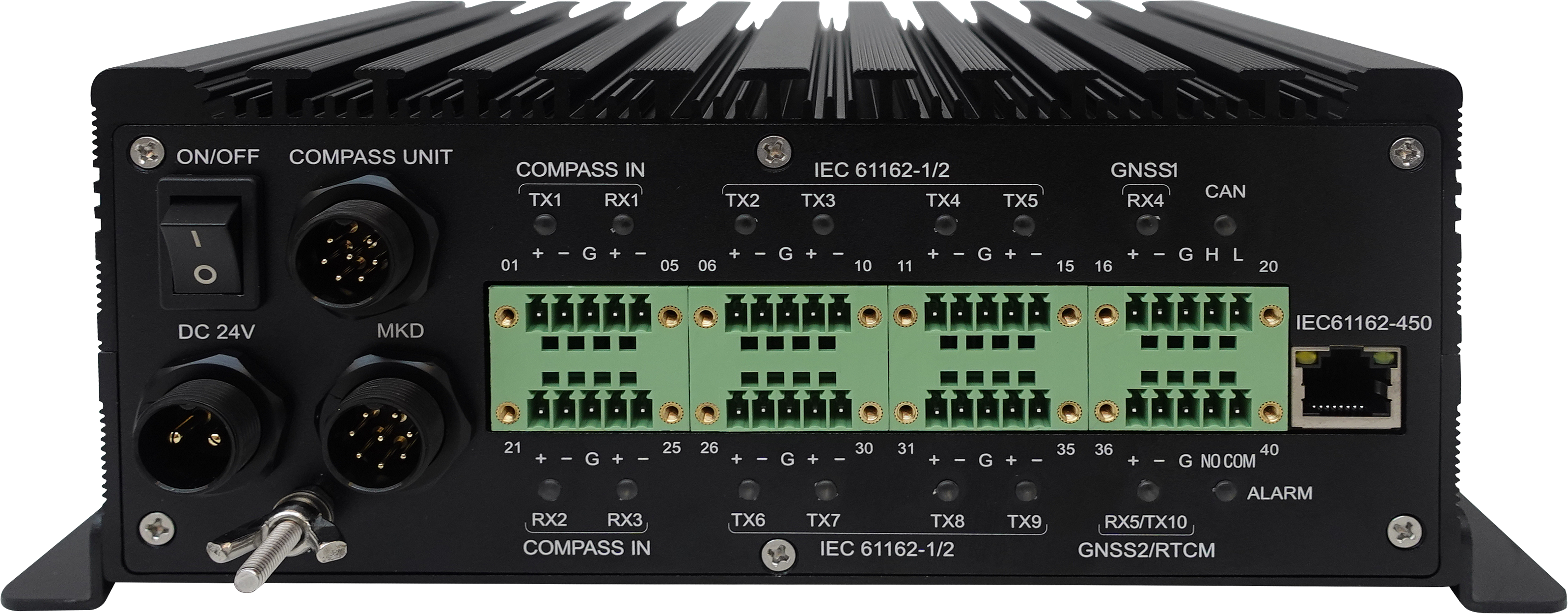

Efficient Integration, Reduced Costs
Provides 8 channels of heading output and 11 channels of DC 24V power output, reducing wiring complexity, installation time, and cost.

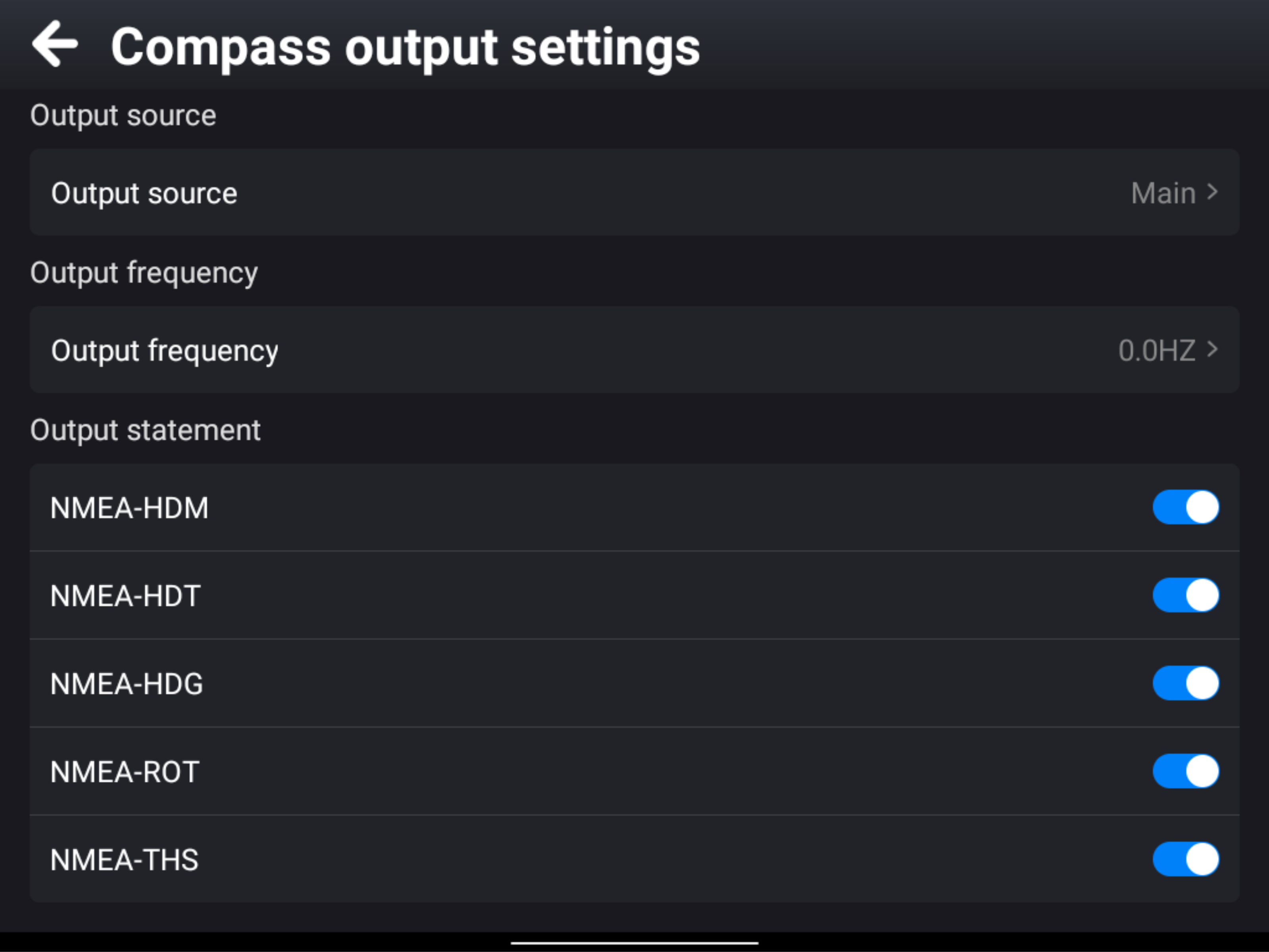

Multiple Sentence Formats
Supports HDT, HDM, THS, and HDG sentence types, allowing output ports to be configured for different device requirements.
Technical Information
| Product Type | Fiber Optic Gyrocompass |
|---|---|
| Heading Accuracy | ≤0.1° |
| Roll / Pitch Accuracy | ≤0.1° |
| Initial Alignment Time | Less than 10 minutes |
| Power Supply | DC24V |
| Heading Outputs | 8 channels |
| DC 24V Power Outputs | 11 channels |
| Supported Sentence Types | HDT / HDM / THS / HDG |
Official Product Images
