HM-2812 wind-data functional display interface
Marine Smart Instrumentation Display / XINUO

HM-2812

An intelligent digital instrument supporting multi-screen linkage, flexible display combinations, data expansion, and real-time sensor data display.

Inquiry →

Product Overview

The HM-2812 Marine Smart Instrumentation Display is an intelligent, easy-to-install digital instrument designed for clear presentation of navigation and sensor information. It supports multi-screen linkage, configurable display combinations, and data expansion. A high-definition display adapts to different light conditions, while a quick-operation keypad enables fast mode switching and brightness adjustment. Its built-in information processor receives and processes real-time data from compatible positioning, depth, and meteorological sensors.

Key Features

  • Configurable data expansion and access for user-required data.
  • Multi-screen linkage with one-key brightness and display-mode adjustment.
  • Multiple NMEA0183, NMEA2000, and AD signal interfaces through the data distributor.
  • High-definition display for clear presentation under different light conditions.
  • Built-in information processor for high-speed reception and processing of real-time data.
  • Compatibility with positioning, depth, and meteorological sensors.

Display / Operational Functions

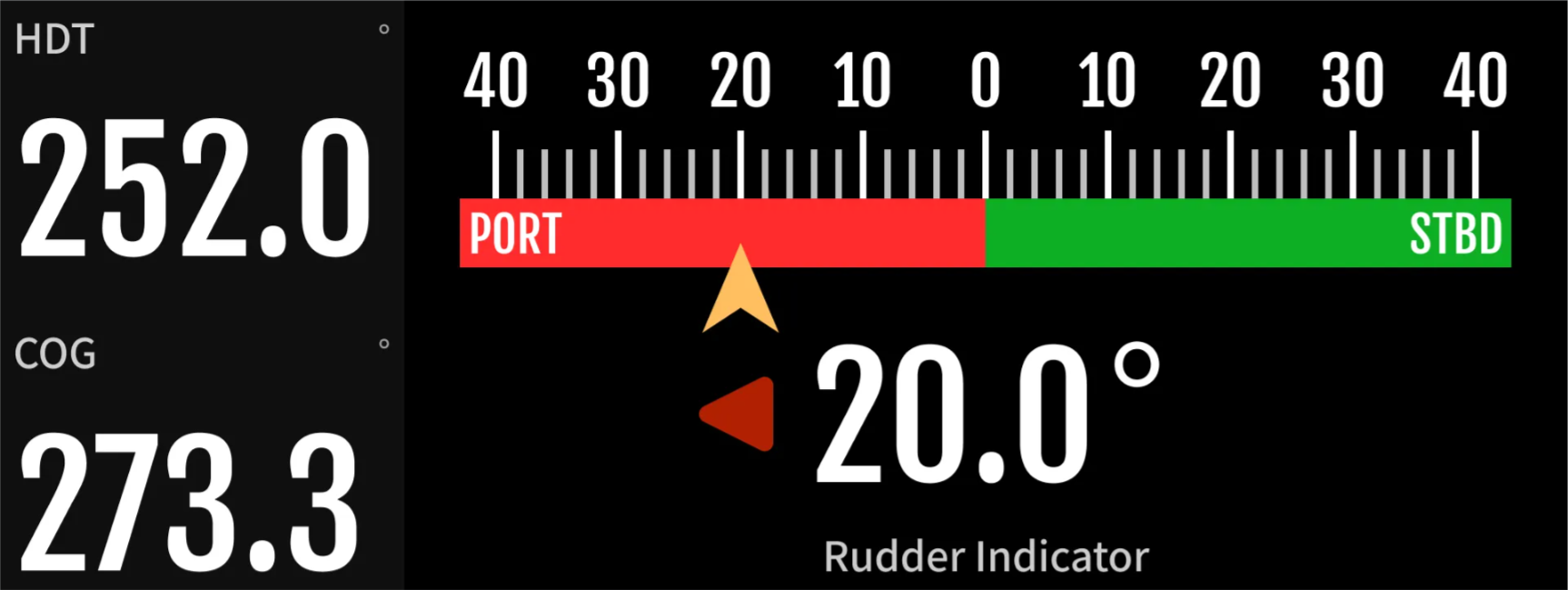

HM-2812 rudder-status interface

Rudder Status

Presents real-time rudder-angle information so operators can monitor steering angle and rudder-blade deflection.

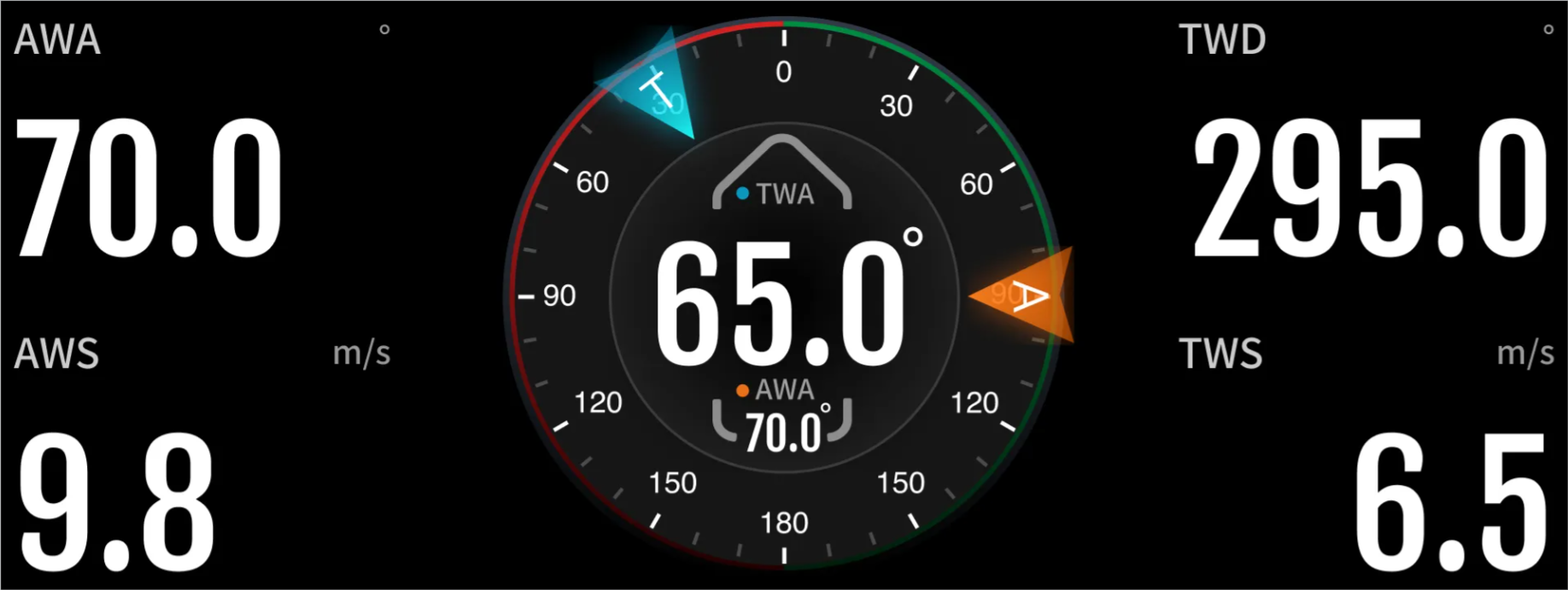

HM-2812 wind-data interface

Wind Data

Displays wind direction, wind speed, and wind angle information from an anemometer and wind vane.

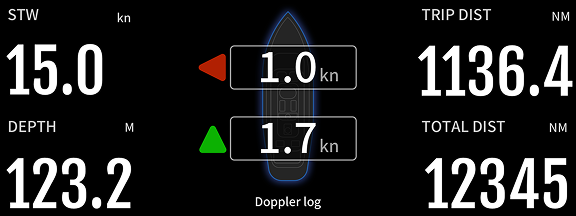

HM-2812 speed-monitoring interface

Speed Monitoring

Connects to a Doppler velocity log to display speed relative to water, voyage data, depth, and related navigation information.

System / Data Integration

Multi-Screen System

The system supports connection of up to 8 display units through the main unit.

Sensor Integration

The main unit provides NMEA0183 receive interfaces, RS485 interfaces, and AD current acquisition interfaces for supported sensor data.

Display Connectivity

Each display unit provides USB, RS485, and LAN interfaces and operates from a DC 10–36V supply.

Quick-Operation Keypad

The separate keypad supports rapid mode switching and brightness adjustment through USB communication.

Onboard Application

HM-2812 instrumentation display shown across the upper area of a vessel bridge
Bridge Display Application The manufacturer brochure illustrates HM-2812 information presented across the upper area of a vessel bridge, demonstrating its intended onboard display context. Other equipment visible in the scene is shown only as bridge context.

Technical Information

ModelHM-2812
Product TypeMarine Smart Instrumentation Display (SID)
Display Unit Size320 × 144 mm
Display12.3-inch single screen
Display Resolution1920 × 720
Brightness800 cd/m² (Max)
Display Unit InterfacesUSB, RS485, LAN
Display Unit Power SupplyDC 10–36V
Main Unit Interfaces2-way RS485; 11-way NMEA0183; 5-way AD analog input (4–20mA)
Supported SentencesHDT, ZDA, GGA, VTG, MWV, VBW, VLW, DPT, ROT, RSA, HRM, HPM; customization supported
LAN Interface100M
StandardsIEC-60945, IEC-61162-1, IEC-61162-2
Keypad CommunicationUSB
Main Unit Weight1.8 kg
Display Unit Weight1.5 kg
Keypad Weight0.28 kg
