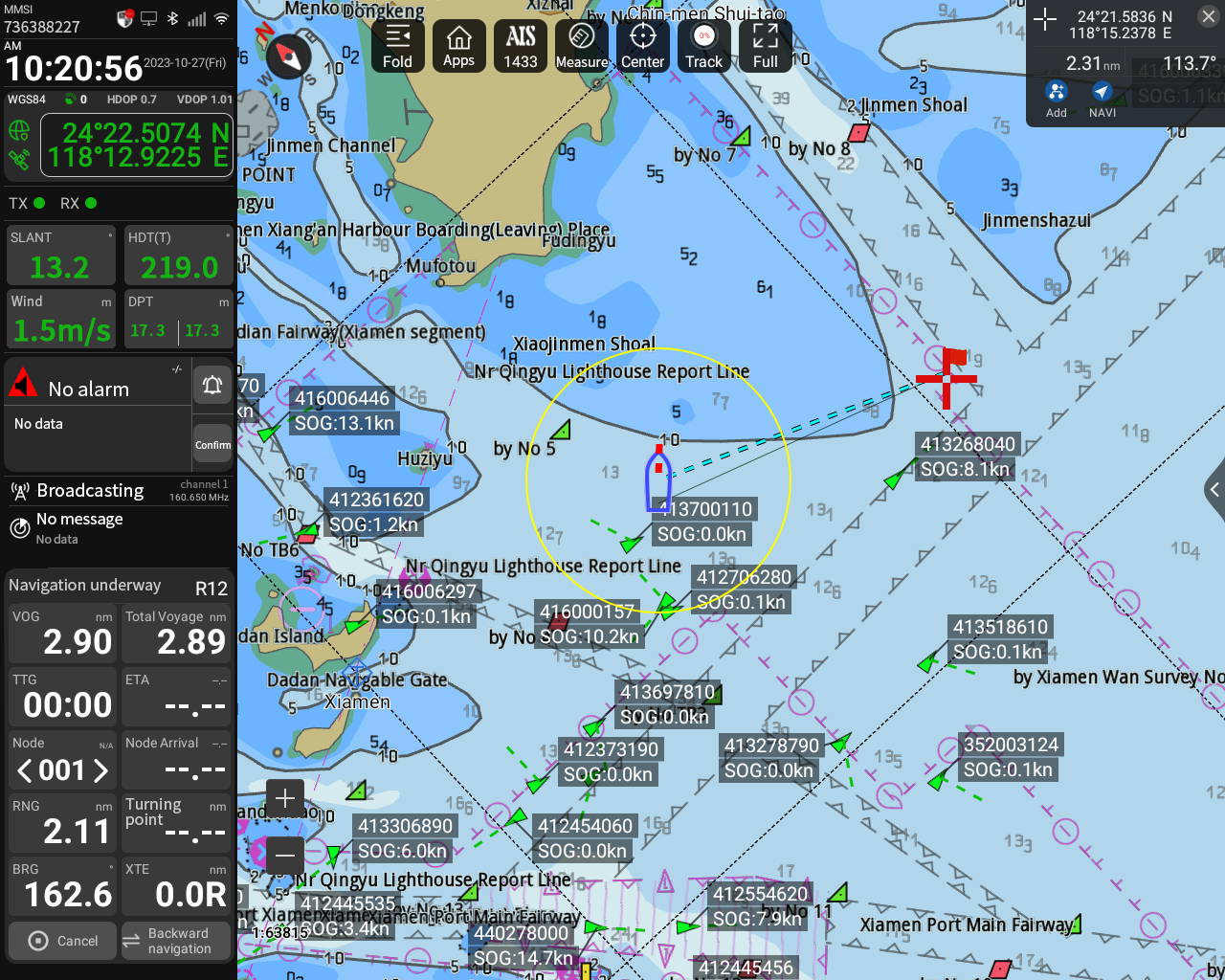

Electronic Chart
Supports official electronic charts, C-MAP REVEAL X and satellite imagery overlay for additional visual navigation reference.
MFD Series / XINUO
XN-6618
XN-6618
Series
Multi-Function Display Pro is a next-generation multifunctional integrated system that combines GNSS, ECS and AIS. It integrates an echo sounder, CCTV AI recognition and a digital control system, and supports radar echo display for comprehensive situational awareness.
Inquiry →Product Overview
The device adopts an intelligent operating system, offering strong scalability, system stability and support for voice control. It supports communication methods including 5G, WiFi, Bluetooth, Gigabit Ethernet, VSAT broadband and satellite phones, providing an intelligent maritime equipment solution for multitasking and intelligent networking.
Key Features
- Passed the China Classification Society CCS type approval.
- Integrates GNSS, Class A ECS and AIS; one device can replace the above three legal devices.
- Supports GNSS high-precision positioning.
- Compatibility with S-57, S-63 and C-MAP data formats, with satellite imagery overlay.
- Class A and Class B AIS available as user-configurable options.
- 5G, WiFi, Bluetooth, Gigabit Ethernet, VSAT broadband, satellite phone and online upgrade connectivity.
- Built-in echo sounder and radar echo display.
- Integrated CCTV AI recognition and digital electronic control.
- Device assistant for remote control and voice activation.
- Built-in front camera and microphone.
- Intelligent operating system with multi-touch operation.
- Storage expansion via SD card or M.2 NVMe SSD.
- Supports Bluetooth mouse, keyboard, speaker and other peripheral devices.
Navigation / Display Functions
DGNSS
Supports GPS & BDS, GPS and BDS positioning modes and RTCM2.3, RTCM2.4 and RTCM3.2 differential data protocols.

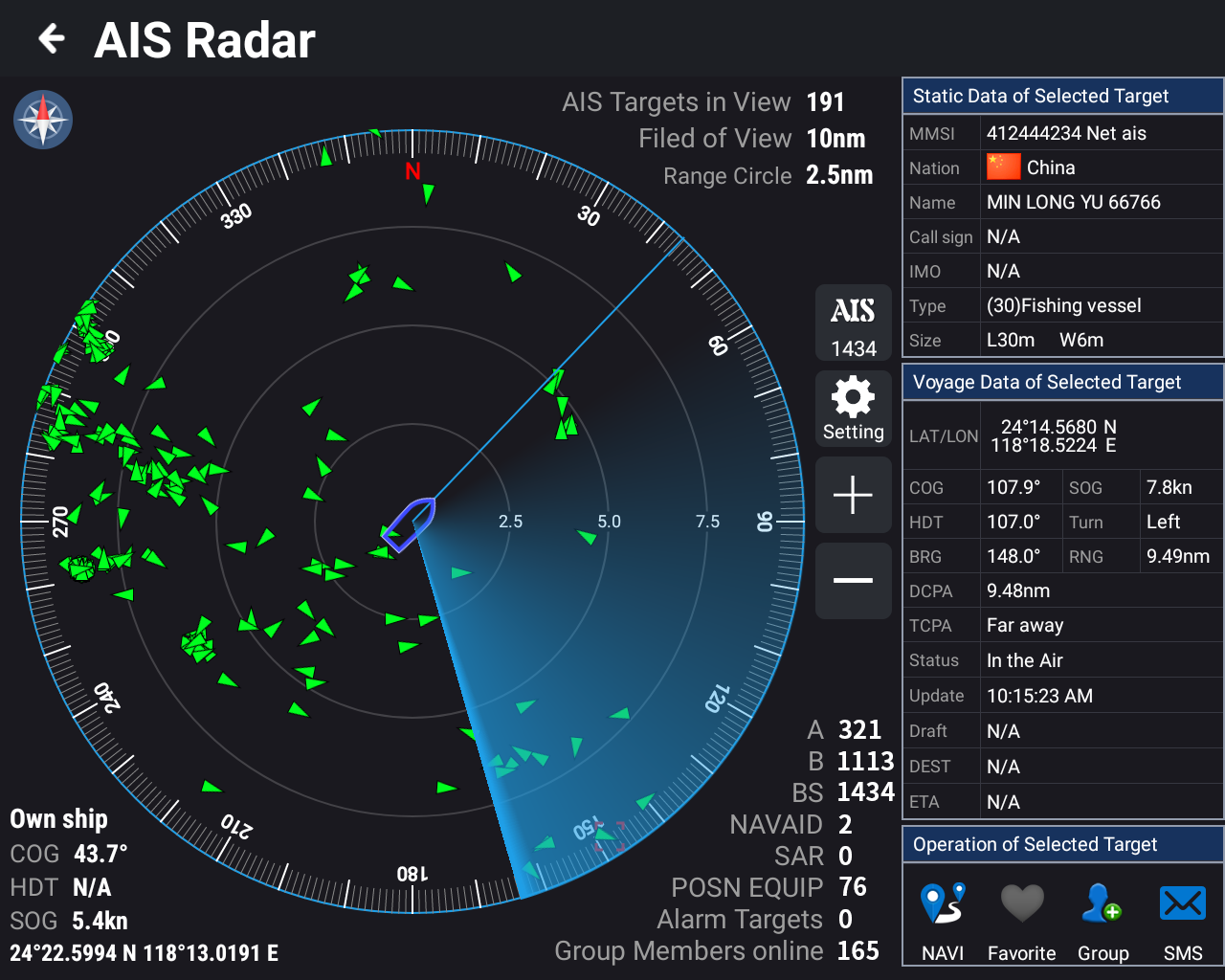

AIS
Class A and Class B AIS are user-configurable options. The display supports collision-avoidance information, vessel fleet management and alarm settings.

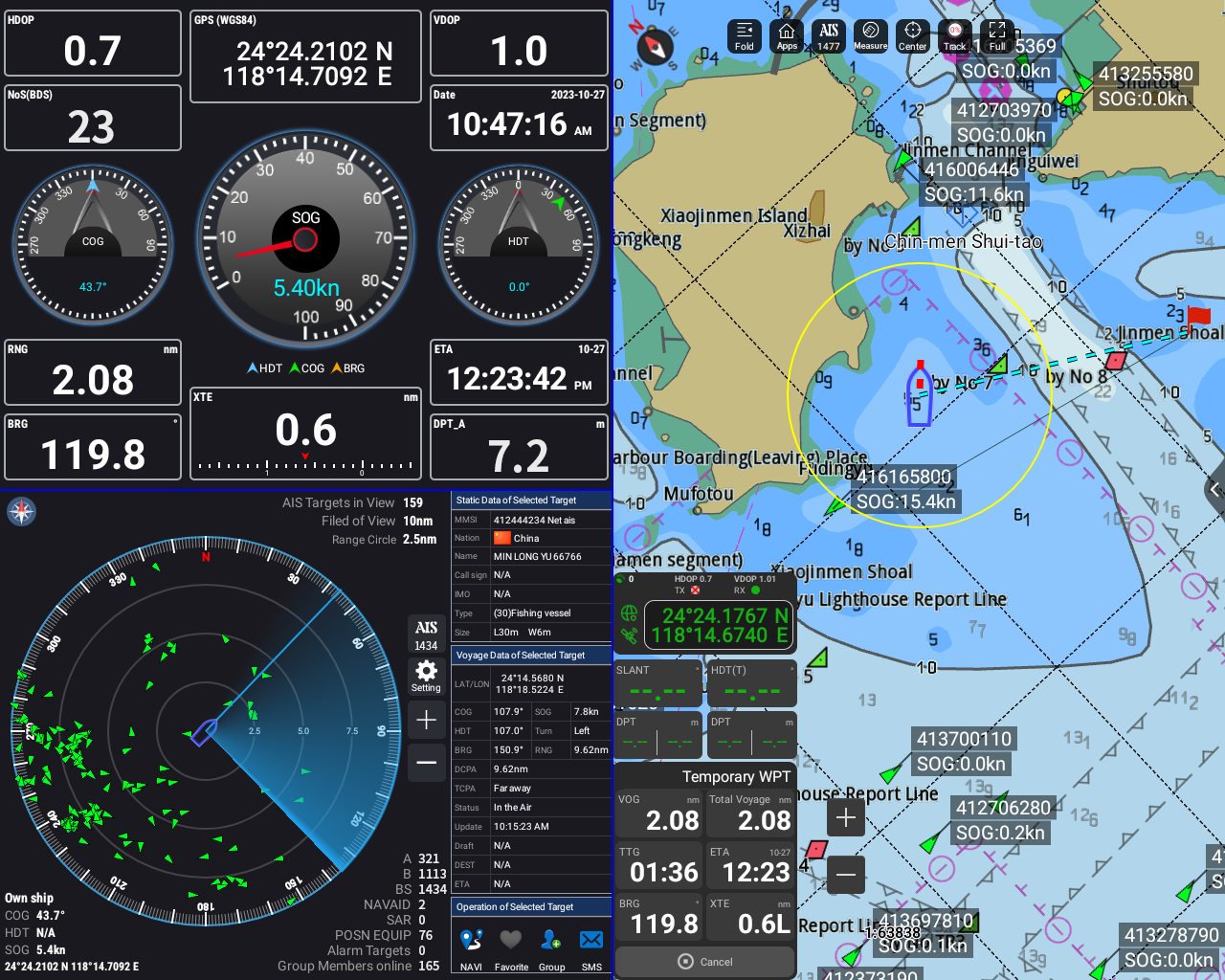

Multi-Screen Display
Supports multi-thread operation, independent multi-screen display and flexible split-screen arrangements.

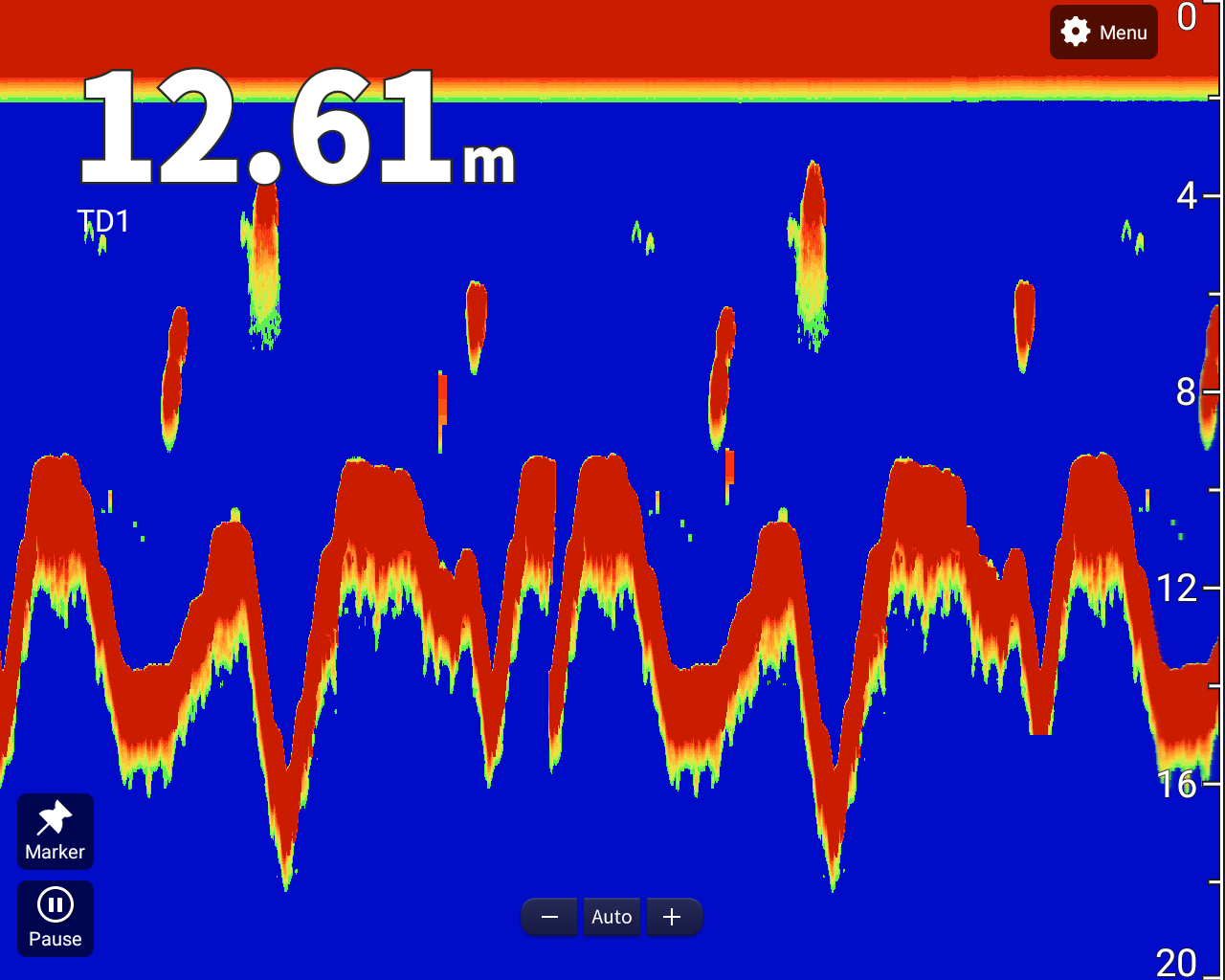

Built-in Echo Sounder
Configurable fish-finder and echo-sounder modes support full-range sampling, gain adjustment and depth measurement.

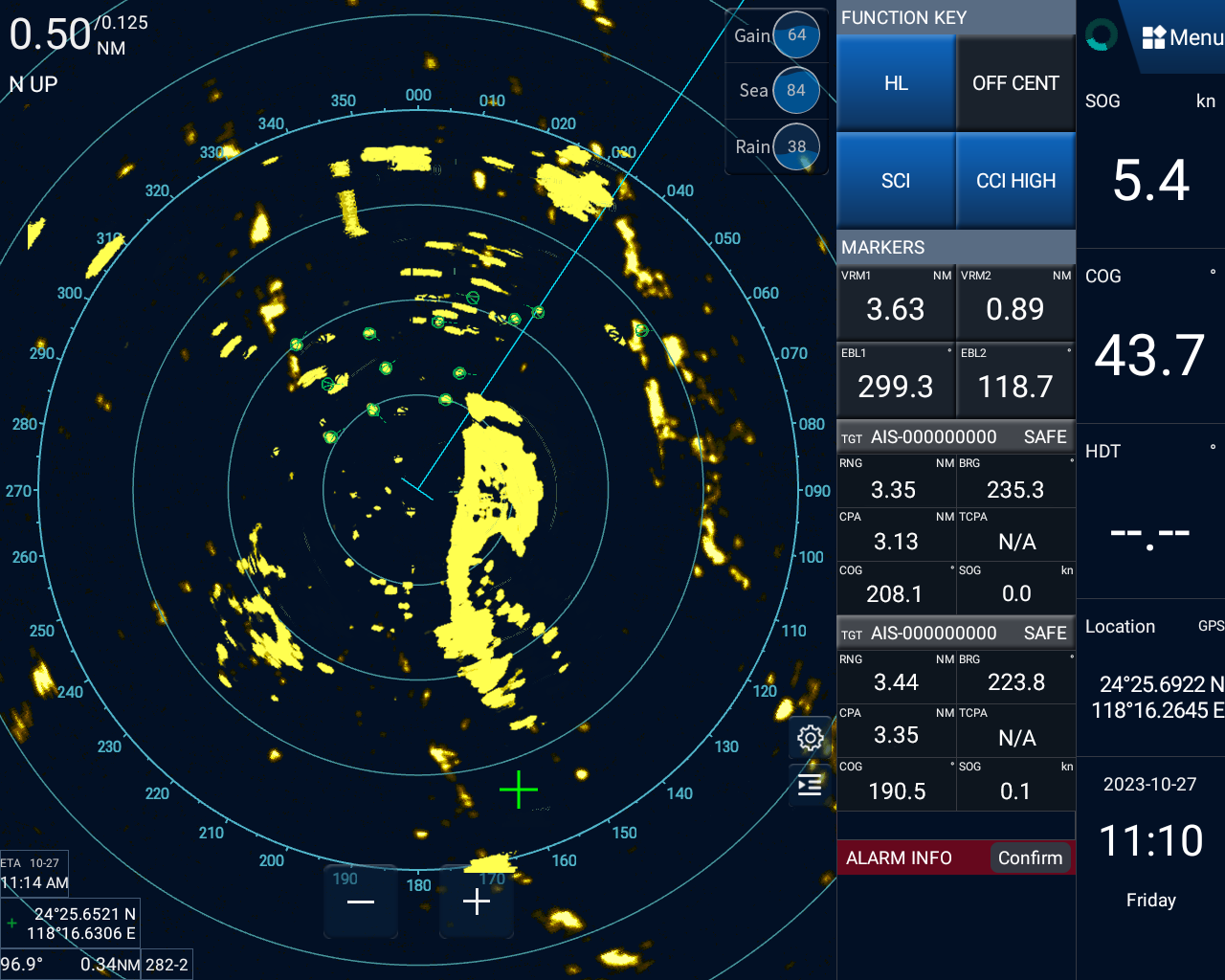

Radar Echo Display
Supports compatible radar echo display, ARPA target acquisition and tracking, range and gain control, and AIS/radar/chart data fusion.
System Capabilities

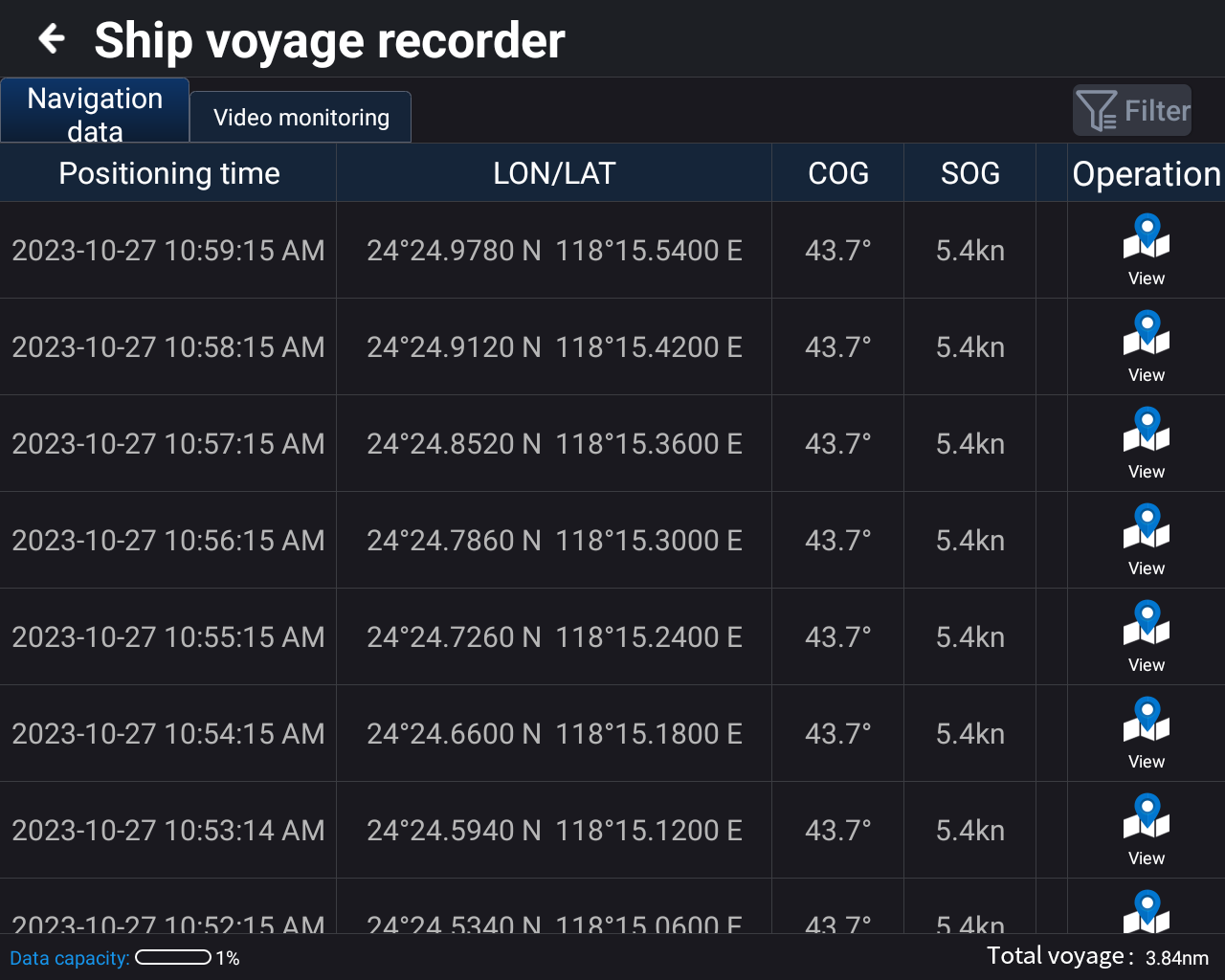

Ship Voyage Recorder
Records supported navigation status and trajectory data in real time through external high-capacity storage for navigation-data analysis.

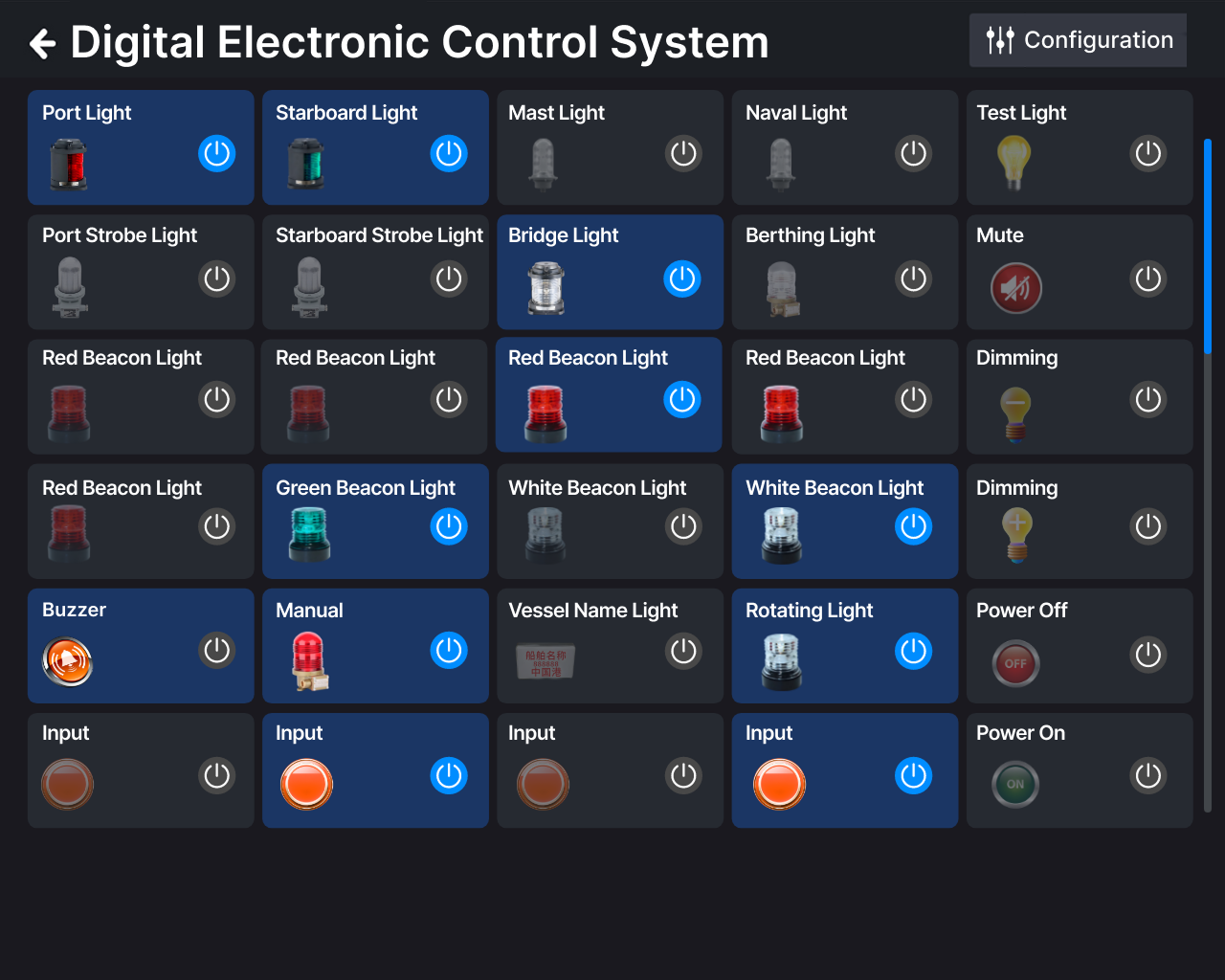

Digital Electronic Control
Connects traditional onboard components through an electronic control box for remote control of supported switches and equipment power supplies.
Voice Assistant
Supports voice wake-up and command interaction, with Bluetooth headset connection for voice control.

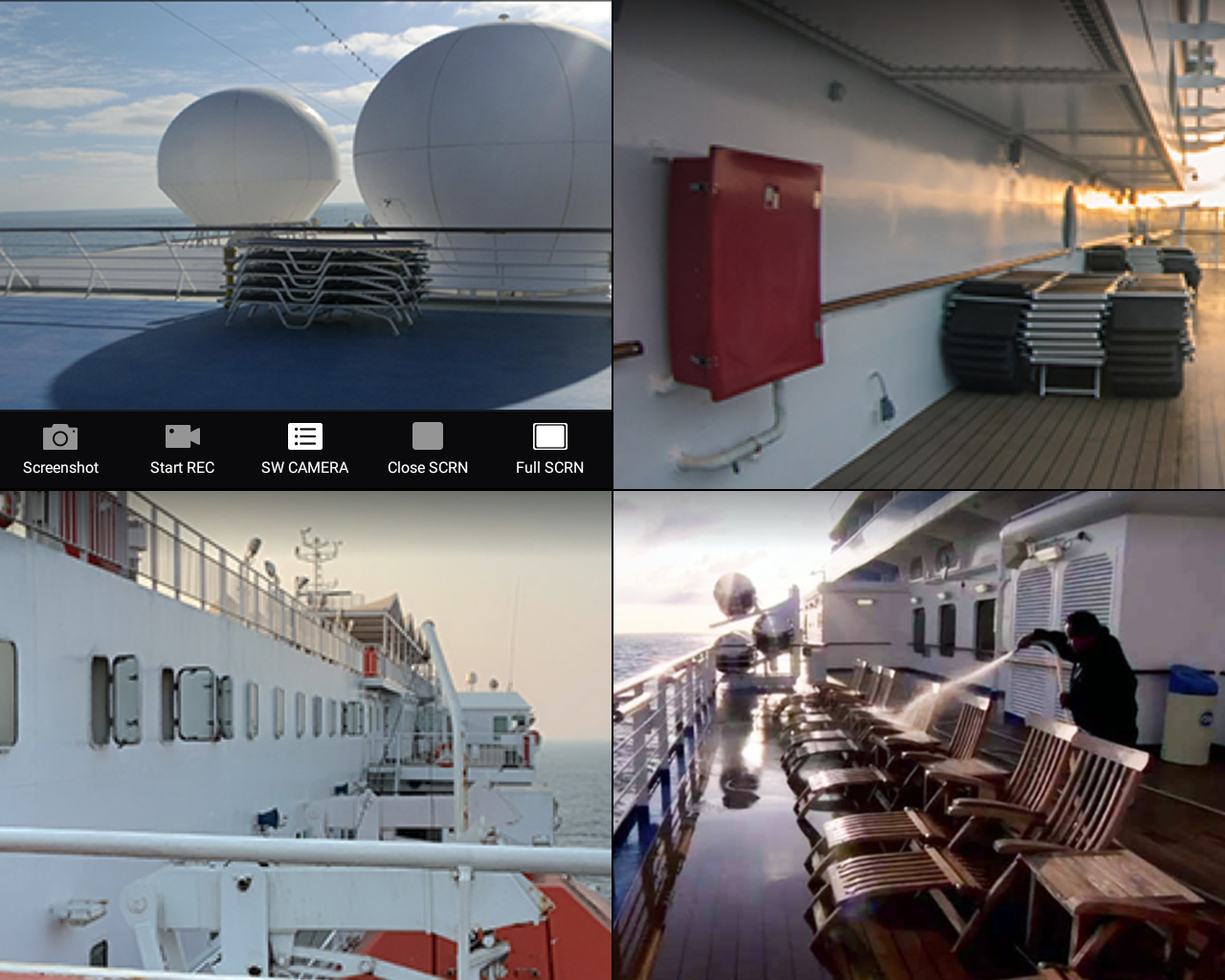

CCTV AI Recognition
Supports multiple webcams and catalogue-defined recognition functions including maritime personnel, cockpit activity, driver fatigue and life-jacket recognition.
Models / Configurations
| Model | Catalogue configuration |
|---|---|
| XN-6618 | GNSS / ECS |
| XN-6618A | GNSS / Class A AIS / ECS |
| XN-6618B | GNSS / Class B AIS / ECS |
Main Unit Specifications
| Models | XN-6618 / XN-6618A / XN-6618B |
|---|---|
| System | Intelligent Operating System |
| CPU | Cortex-A76 Quad core + Cortex-A55 Quad core |
| Memory | 8GB RAM / 32GB Flash |
| GPU | ARM Mali G610 |
| Size | 17 inches |
| Brightness | 500 cd/m² (Max) |
| Viewing Angle | Full perspective 85° |
| Resolution | 1280×1024 |
| Touch Panel | Capacitive multi-touch |
| Power Voltage | DC 10V-36V |
| Audio Output | 5W, 2×3W |
| Power Consumption | XN-6618: 38W@24VDC average, 60W@24VDC instantaneous XN-6618A: 45W@24VDC average, 82W@24VDC instantaneous XN-6618B: 43W@24VDC average, 74W@24VDC instantaneous |
| Camera / Microphone | Binocular HD camera with intelligent fill light / built-in microphone |
| Working Temperature | -15°C to +55°C |
Interfaces / Connectivity
| MicroSD Card | Two SD card slots support 512GB high-speed Micro SD (TF) cards in FAT32 and NTFS formats; supports optional M.2 NVMe SSD. |
|---|---|
| Bluetooth | BT5.0 |
| WiFi | 802.11 b/g/n |
| 5G Communication | Support |
| Ethernet | 100/1000Mbps |
| NMEA0183 | 4 ports data interface with independently configurable baud rate, including 2 input and 2 output ports |
| NMEA2000 | Supports GNSS, AIS, heading and other data communication |
| Other Interface | 1 audio output; 1 alarm output; supports 1080P resolution HDMI and Type-C output for same-screen or dual-display output |
AIS Transceiver Specifications
Class A Transceiver / XN-6618A
| Frequency | 156.025MHz ~ 162.025MHz |
|---|---|
| RX1 (default) | AIS1 (161.975MHz) |
| RX2 (default) | AIS2 (162.025MHz) |
| Output Power | 1W / 12.5W |
| Modulation | GMSK/FM |
| AIS Transmitter | 1 |
| AIS Receiver | 2 (AIS1, AIS2) |
| DSC Receiver | 1 / CH70 (156.525MHz) |
| Data Rate | 9600bps |
| Bandwidth | 25KHz |
Class B Transceiver / XN-6618B
| Frequency | 156.025 ~ 162.025MHz |
|---|---|
| Bandwidth | 25KHz |
| Modulation | GMSK/FM |
| Data Rate | 9600bps |
| AIS Transmitter | 1 |
| AIS Receiver | 2 (AIS1, AIS2) |
| AIS1 (default) | AIS1 (161.975MHz) |
| AIS2 (default) | AIS2 (162.025MHz) |
| TX Output Power | 2W |
| RX Sensitivity | <-107 dBm @ 20% PER |

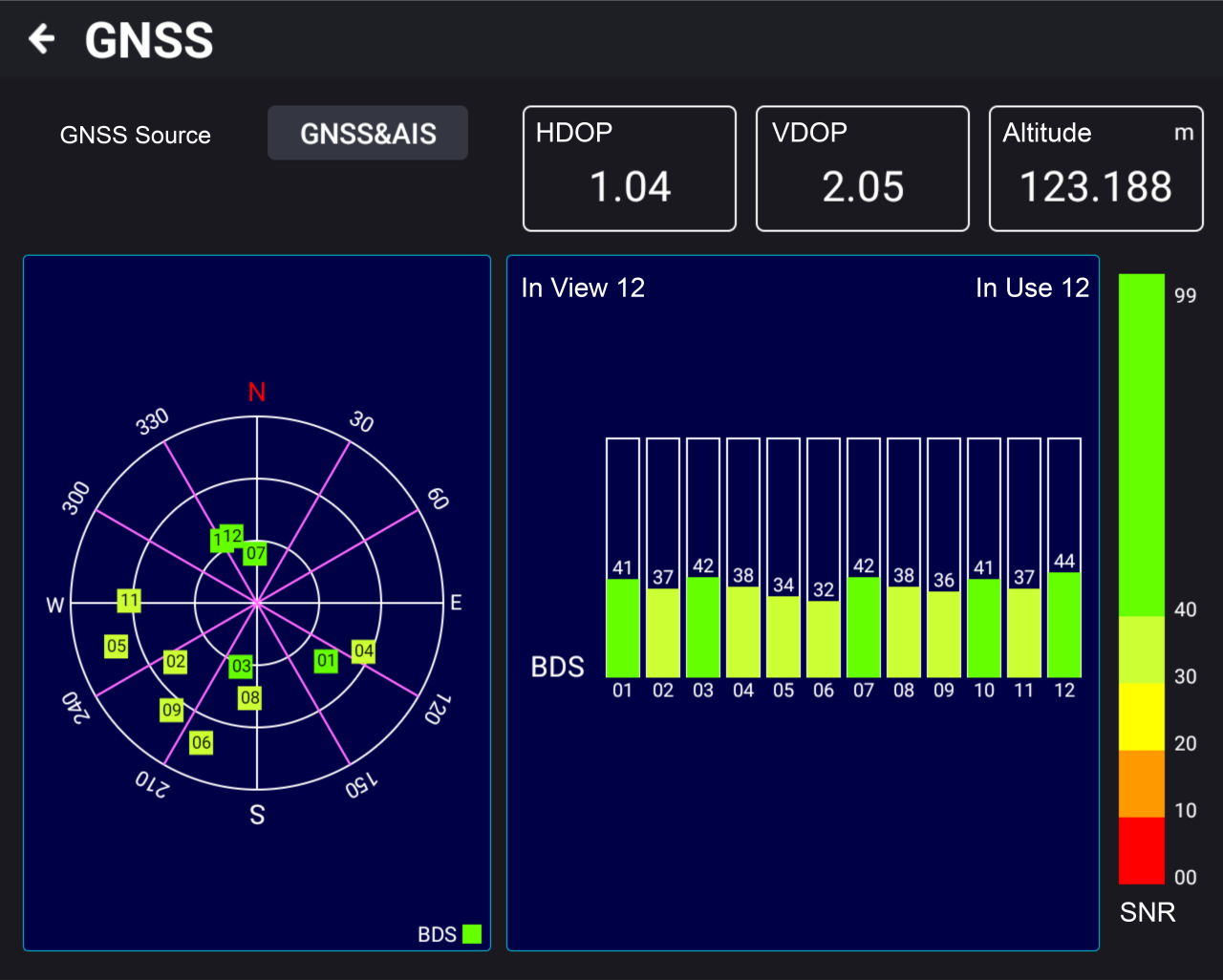

GNSS
| Receiver | 72 channels |
|---|---|
| Receive Frequency | GPS L1: 1575.42MHz; BDS B1: 1561.098MHz |
| Accuracy | GPS & BDS: 2.5m (CEP50%, open sky); GPS: 5m; BDS: 5m; DGNSS: 1m |
| Speed Accuracy | 0.1m/s (50%@10m/s) |
| Time to First Fix | <32s (Cold Start), <1s (Hot Start) |
Mounting / Weight
| Mounting | Counter mounting or flush mounting. Exact dimensional and cut-out drawings are provided in the official downloadable product PDF. |
|---|---|
| XN-6618 | 7kg / 15.43lb |
| XN-6618A | 11kg / 24.25lb |
| XN-6618B | 7.25kg / 15.98lb |
