Chart

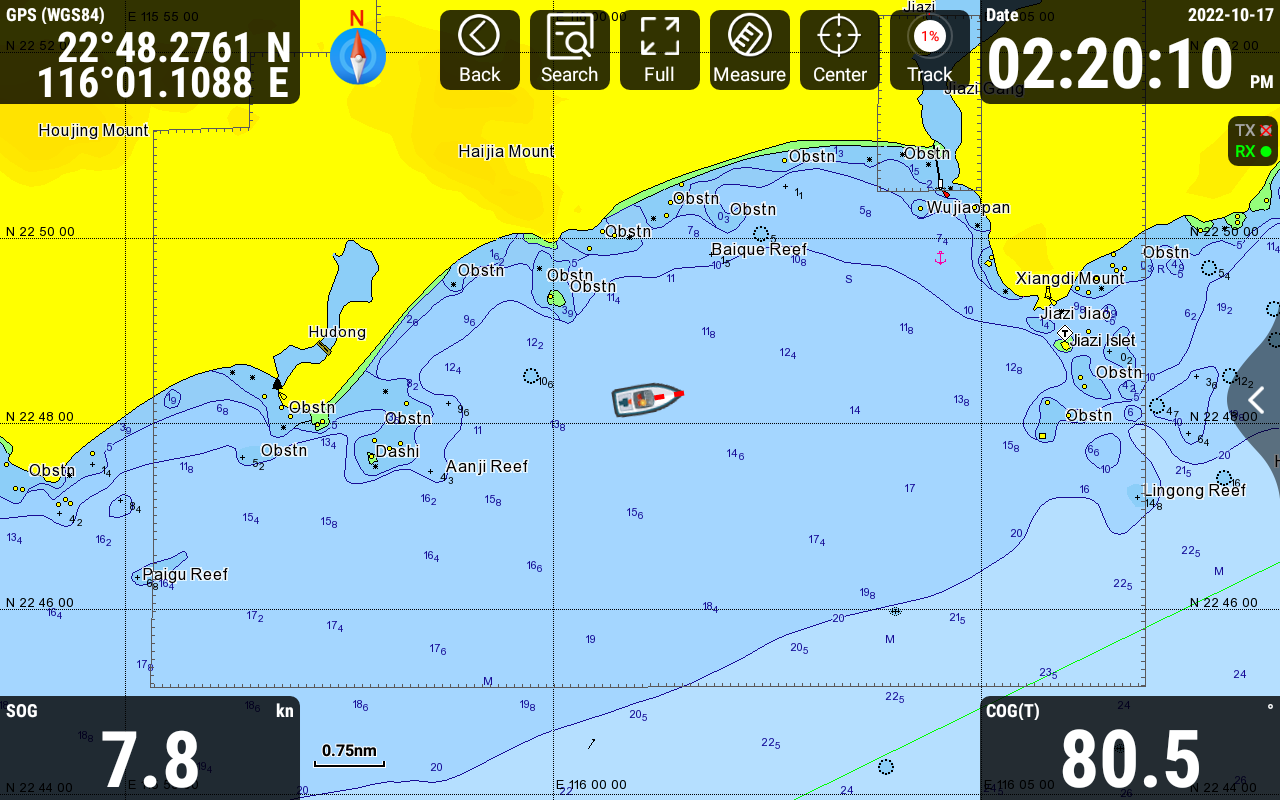

Supports multiple chart formats, including ENC and C-MAP MAX, with detailed chart information and satellite-image overlay.
MFD Series / XINUO
XN60
XN60
Series
The XN60, XN60BD and XN60R Multi-Function Display series provides a multi-task operation solution integrating navigation, chart and connected onboard information.
Inquiry →Product Overview
The XN60 family combines GNSS, chart, Class B AIS transponder, CCTV AI recognition, echo sounder and radar functions with supported communications including 4G, Wi-Fi, Bluetooth and 1000Mbps Ethernet. The XN60 and XN60R series support BDS and GPS dual-mode positioning, while the XN60BD series supports BDS high-precision positioning. XN60R models are identified as the built-in echo-sounder configuration.
Key Features
- EU CE certification and China Classification Society type approval are stated in the catalogue.
- Android operating system with a multi-touch capacitive screen.
- Built-in 16GB SSD and support for a 512GB Micro SD (TF) card.
- 1000Mbps Ethernet, Wi-Fi and 4G support online software updates and cloud services.
- Supports connection to Bluetooth mouse, sound box, USB mouse and USB keyboard.
- XN60 and XN60R support BDS and GPS dual-mode positioning.
- XN60BD supports BDS high-precision positioning.
- Supports ENC and C-MAP MAX chart formats with satellite image overlay.
- Built-in Class B AIS transponder.
- Supports DGNSS (BDS and GPS) high-precision positioning.
- Built-in front camera and microphone.
- Supports external webcams for CCTV AI recognition.
Navigation / Display Functions

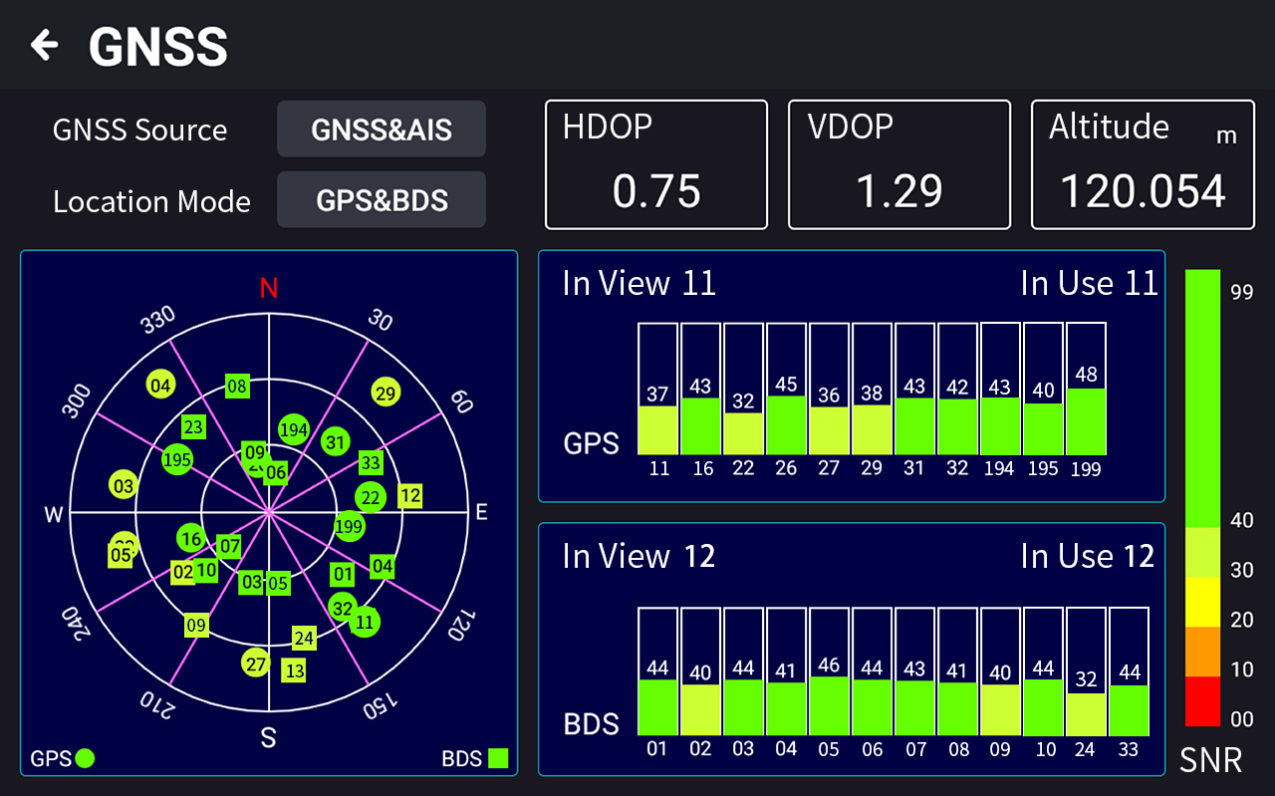

DGNSS
Supports GPS and BDS positioning modes and DGNSS corrections via AIS base-station broadcast or network transport.

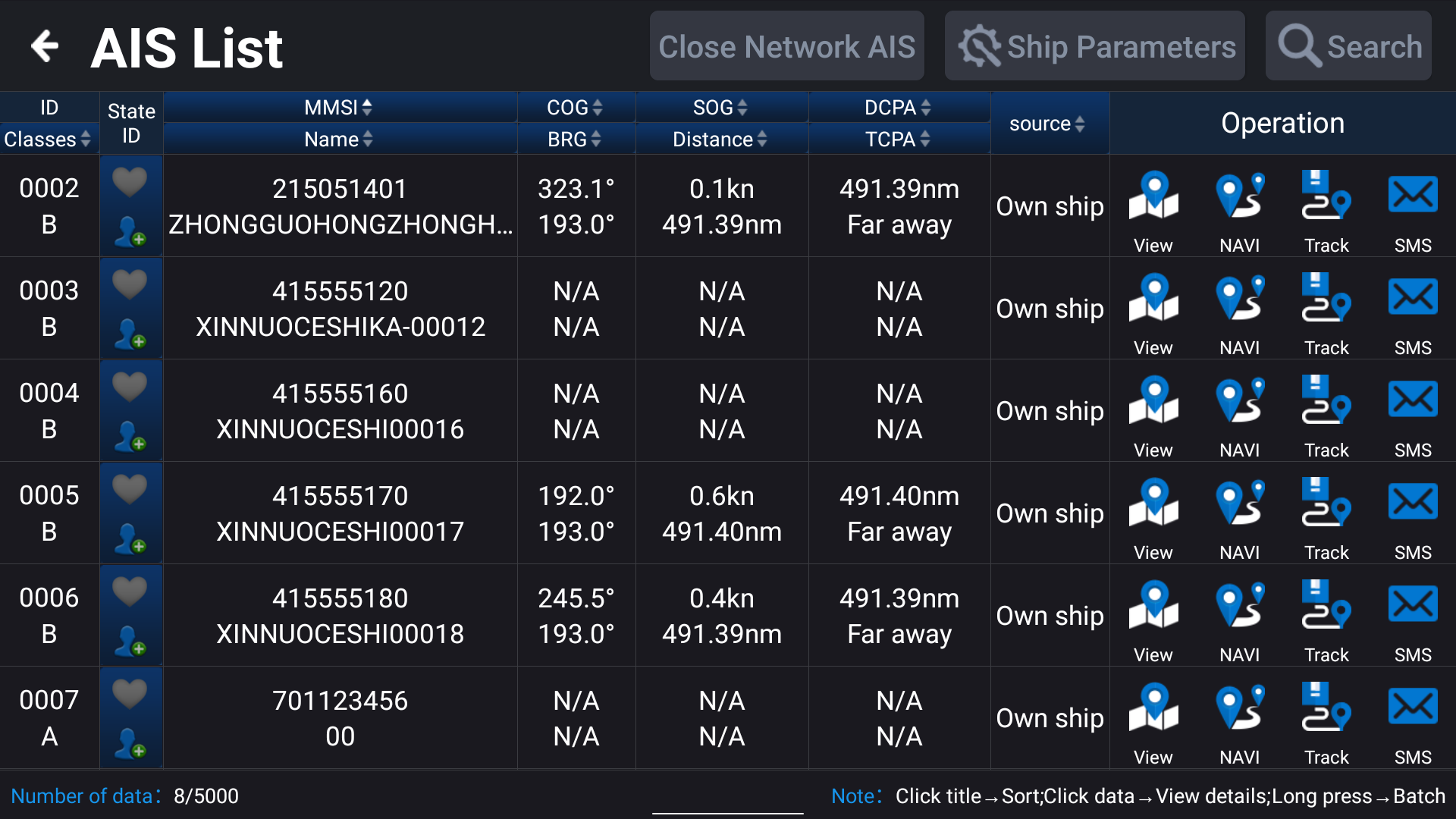

Class B AIS Transponder
Supports AIS information display, ship-group management, anchor-disengagement and ship-leaving alarms, and surrounding-vessel distribution.

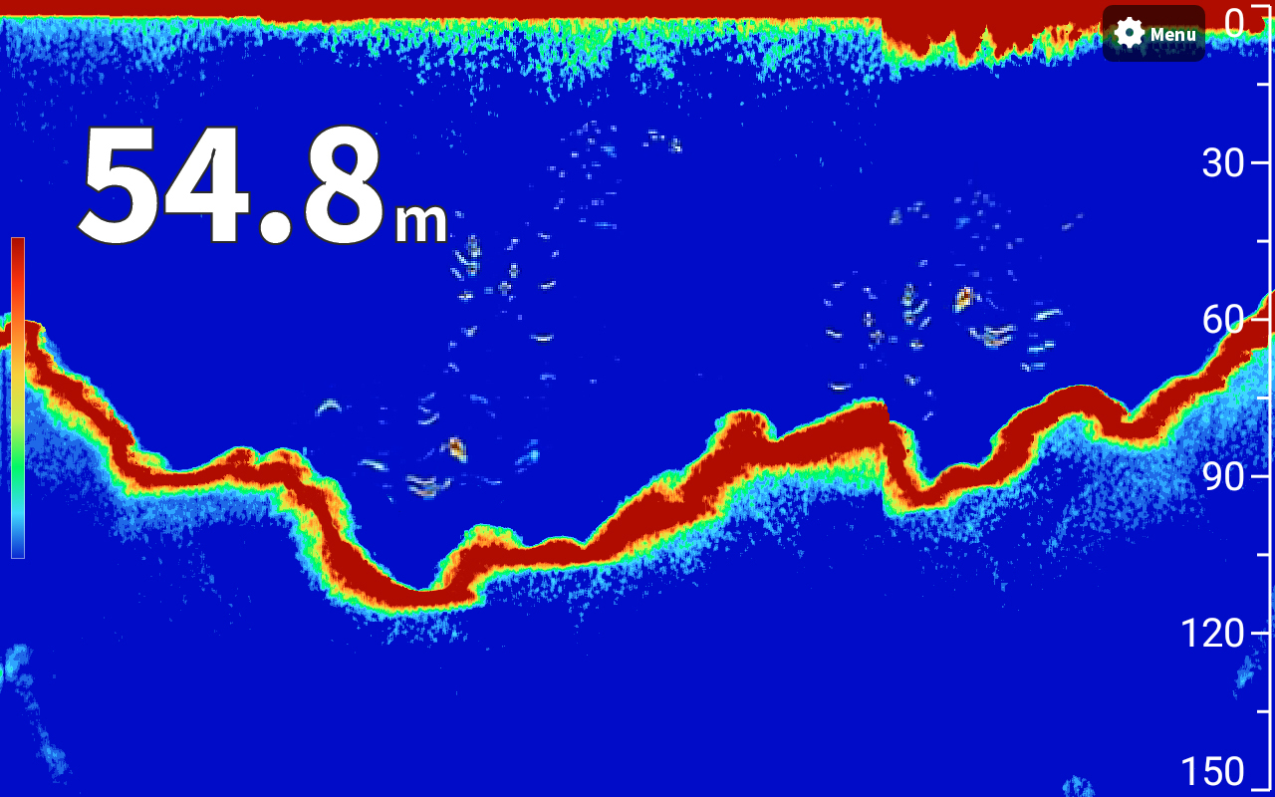

Echo Sounder / XN60R
XN60R is the built-in echo-sounder series. The documented echo-sounder functions support 50kHz and 200kHz frequencies, echo-data storage and replay, and automatic range and gain adjustment.

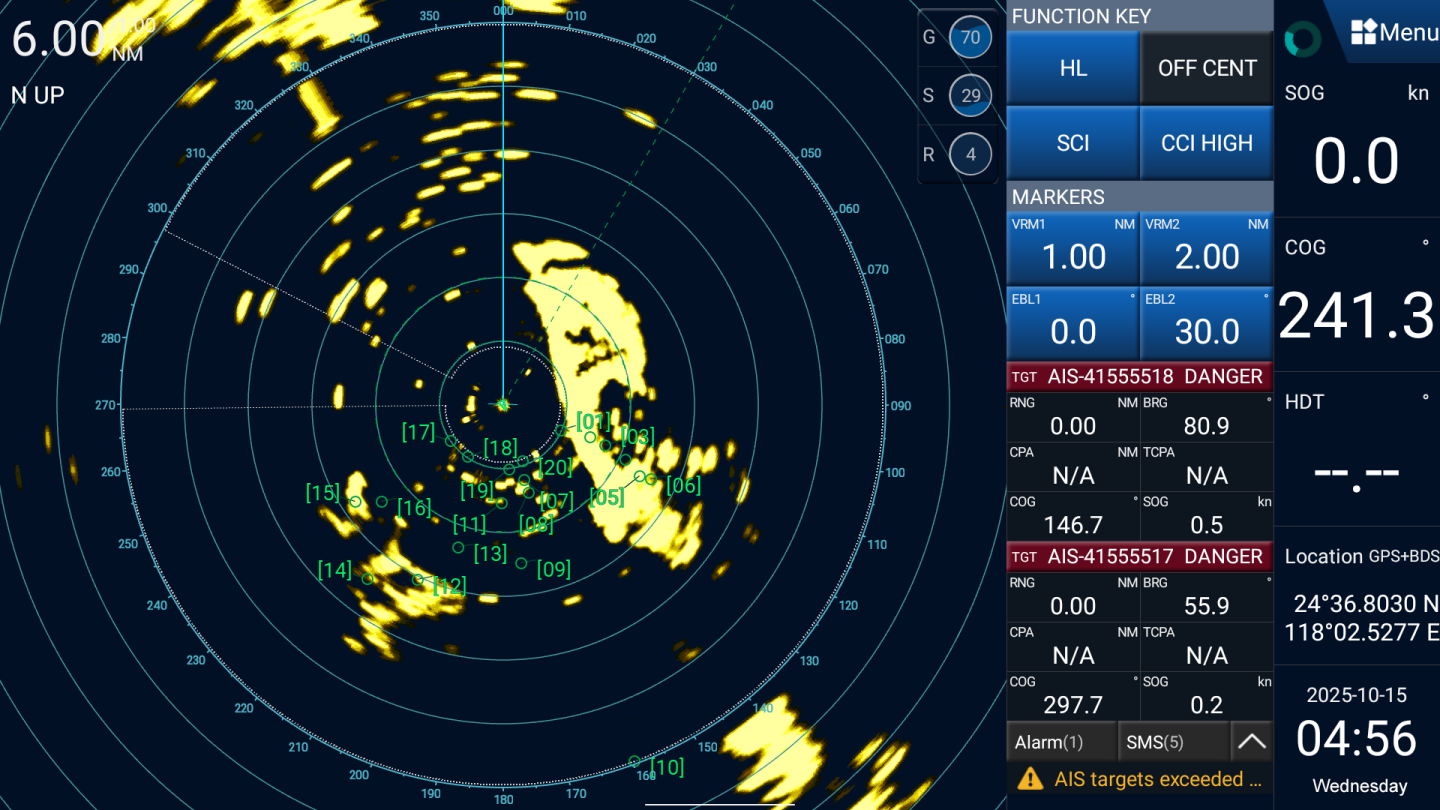

Radar
Supports radar connection, ARPA target acquisition and tracking, dangerous-target warnings, and AIS data superimposed on the radar image.

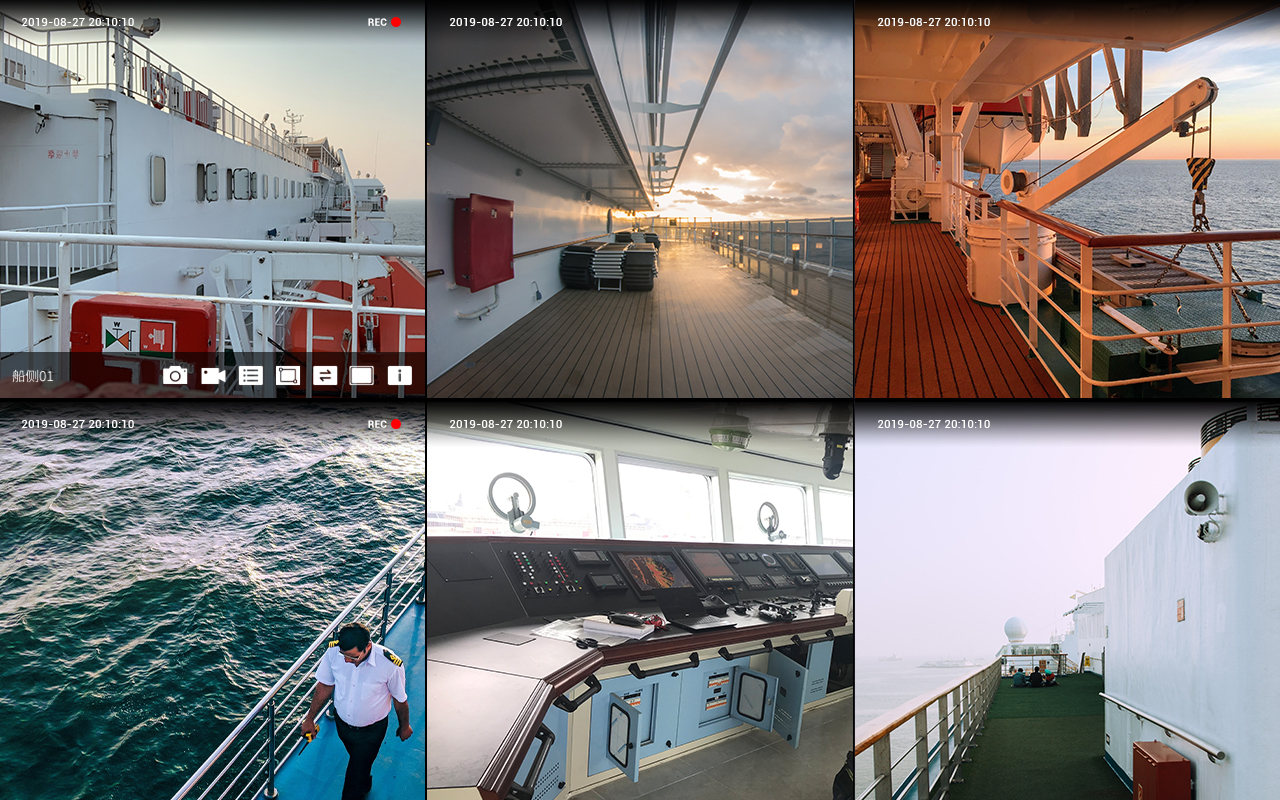

CCTV
Supports access to multiple webcams and catalogue-described AI recognition for onboard monitoring and navigation-safety alerts.
Connected Operation

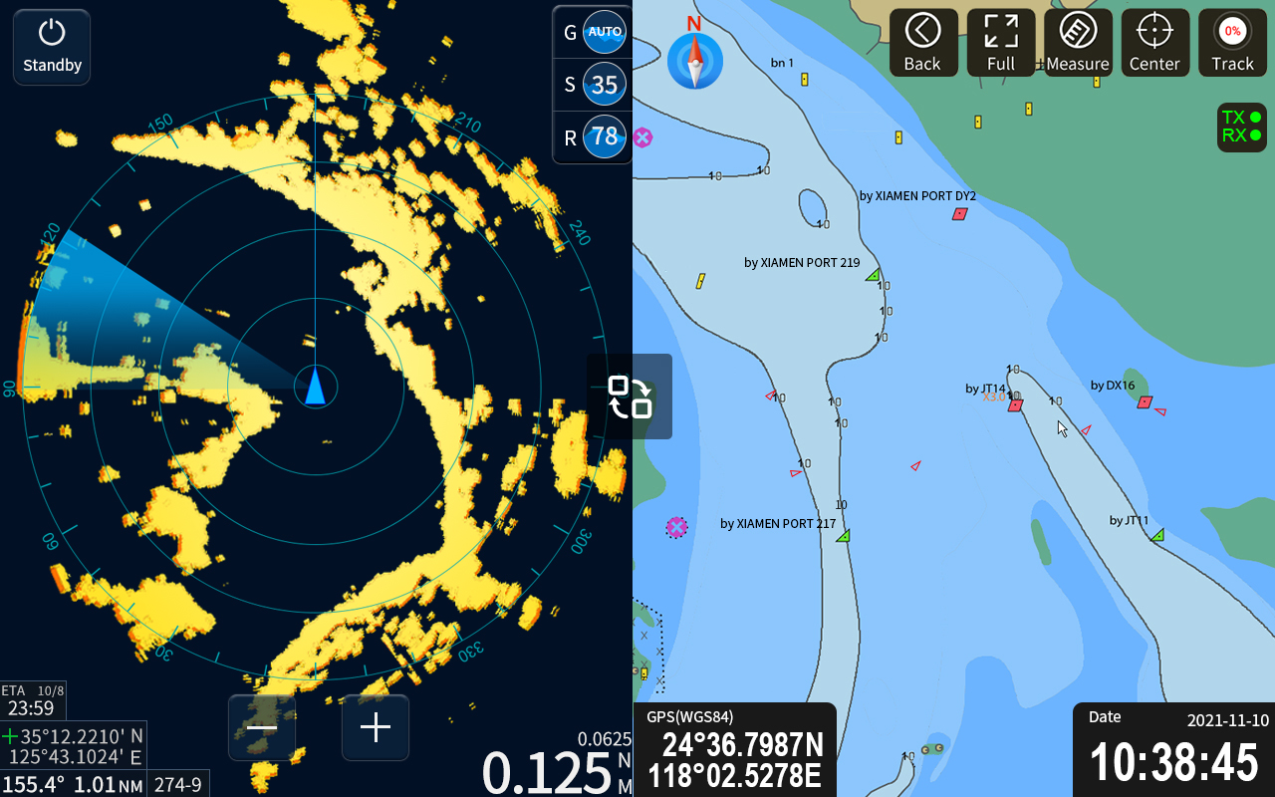

Split-Screen Modes
Display content can be flexibly configured according to navigation needs.

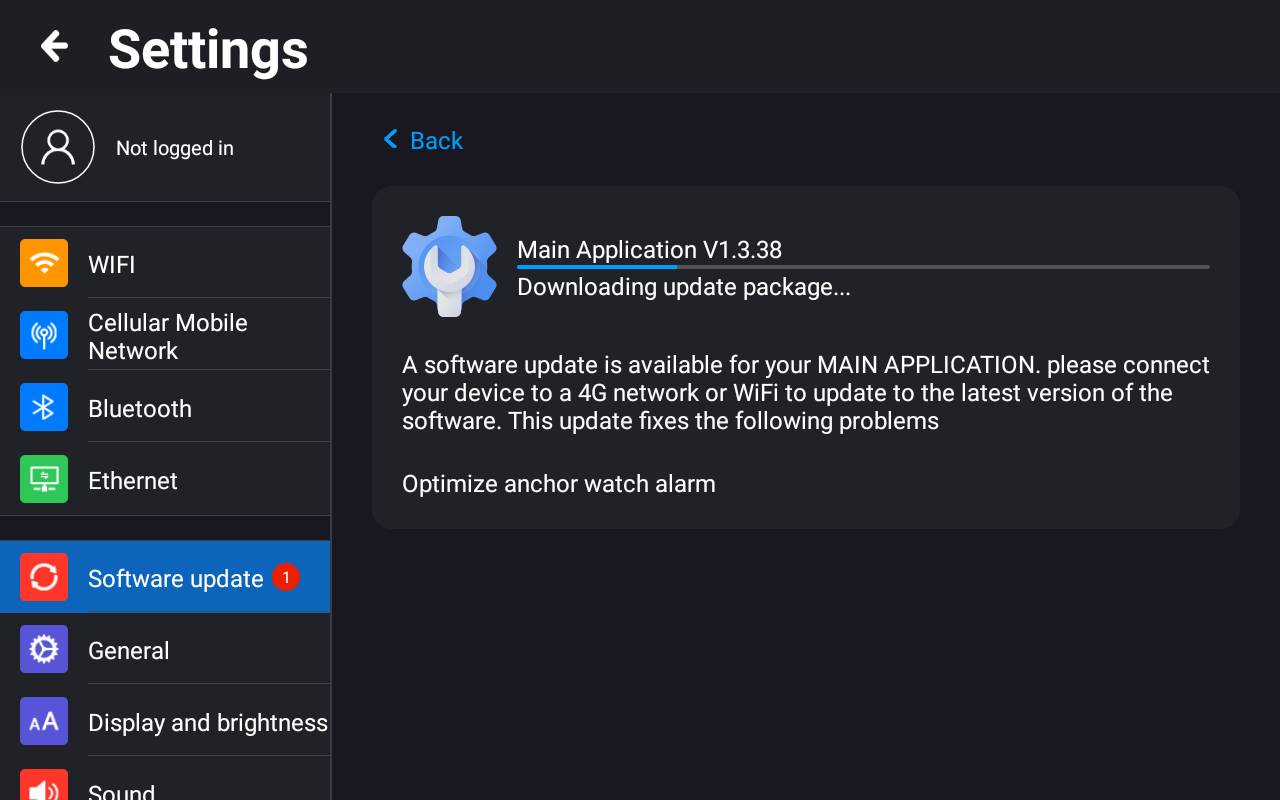

Online Service
Supports online updates for software, charts and apps, together with cloud services such as cloud-data backup.
Professional Apps

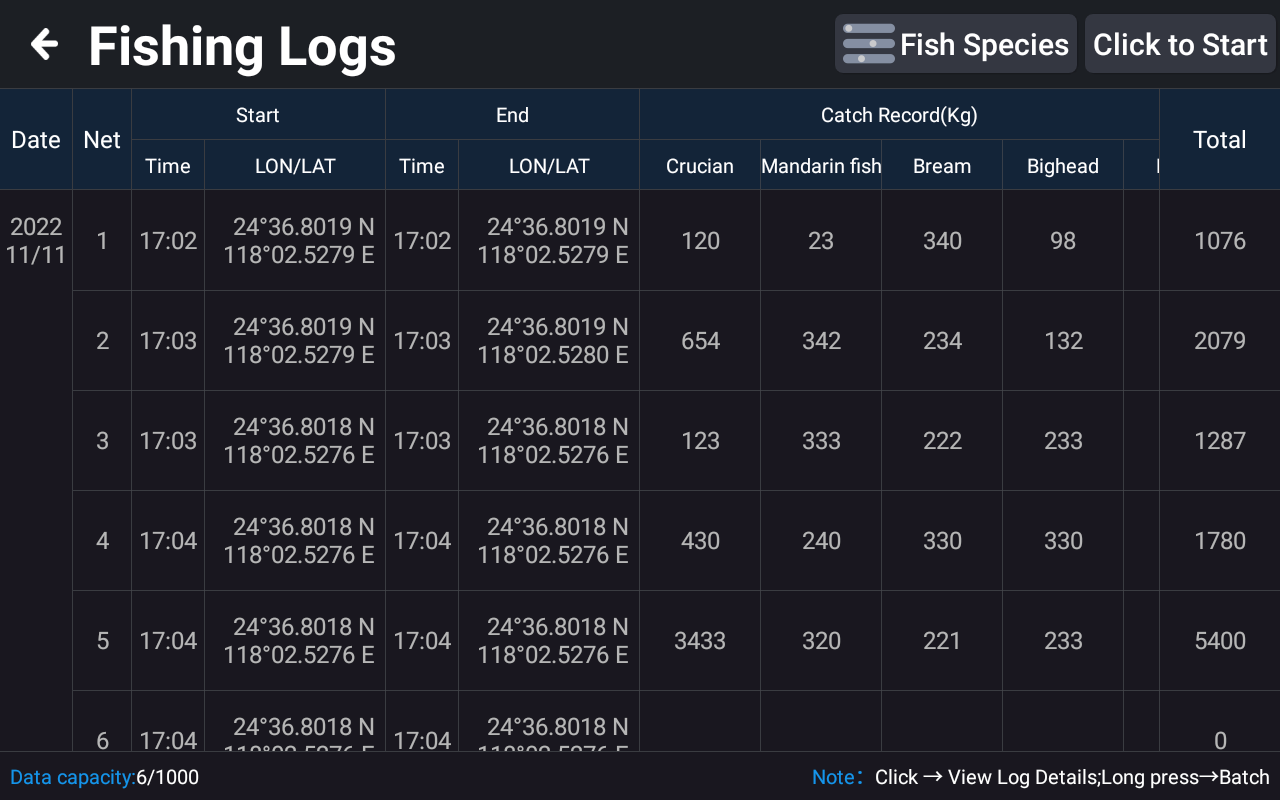

Catalogue examples include Fishing Logs, Sewage Management and Energy Management apps connecting maritime operations with logistics.
Multiple Interface Data
Supports NMEA0183 and NMEA2000, LAN connection to webcam and radar, and connections for echo-sounder transducer, AIS antenna, GNSS antenna, alarm, speaker and USB 2.0.
Models / Configurations
| Selection point | XN60 | XN60BD | XN60R |
|---|---|---|---|
| Catalogue designation | GNSS Multi-Function Display | BDS High-precision Multi-Function Display | Multi-Function Display / Built-in Echo Sounder |
| Positioning distinction | BDS & GPS dual mode | BDS high-precision positioning | BDS & GPS dual mode |
| Built-in echo sounder designation | — | — | Yes |

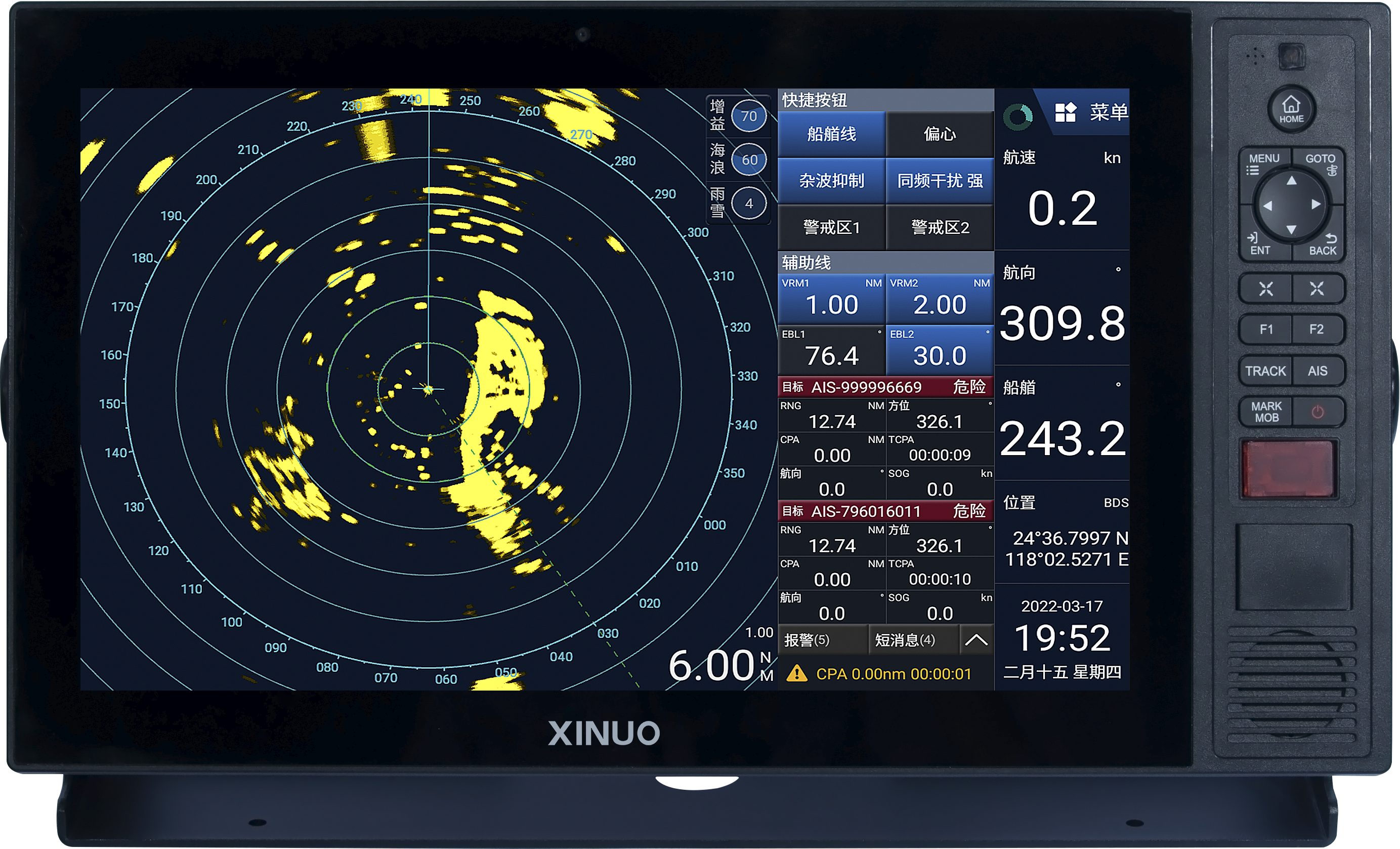

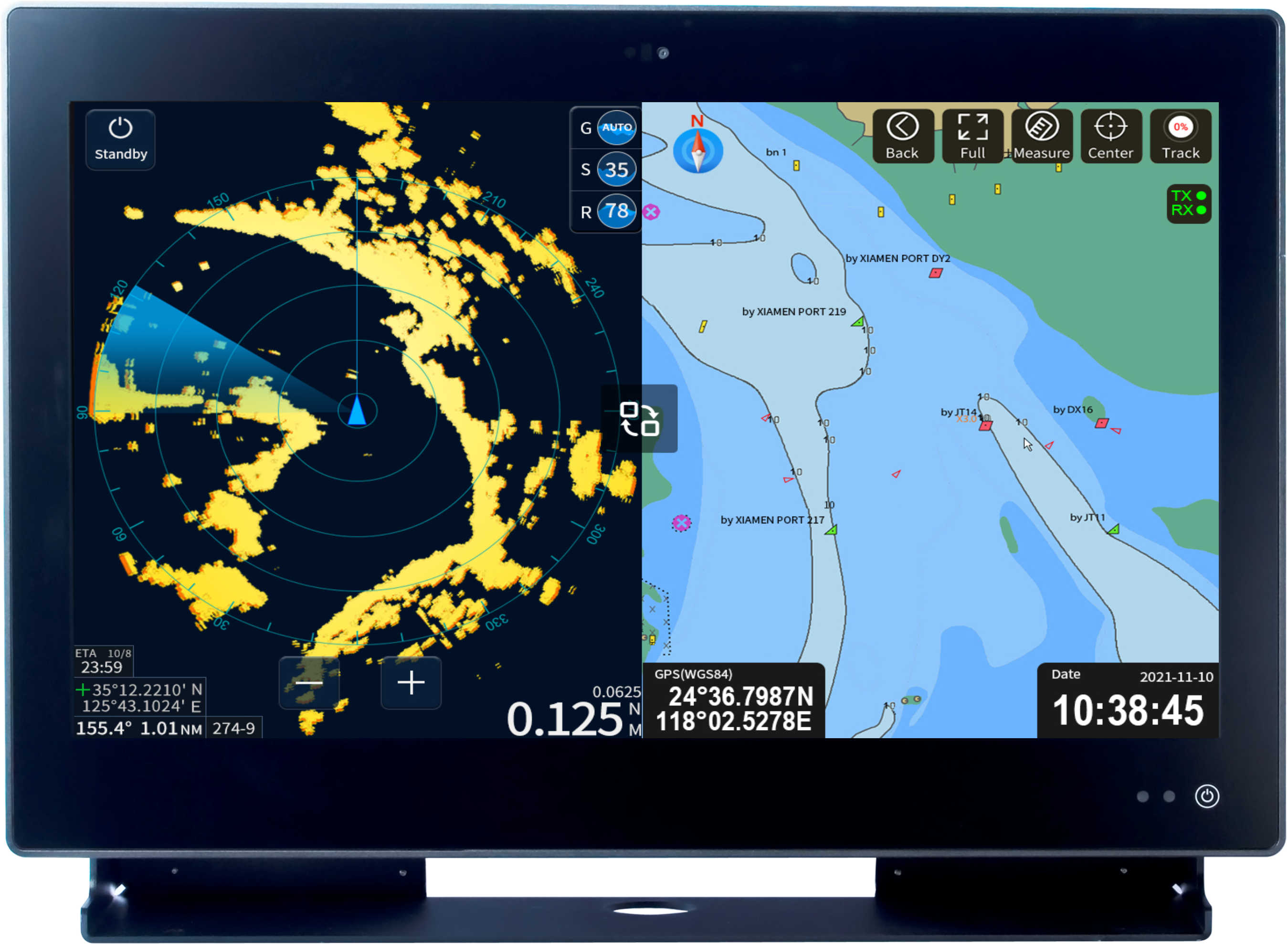

| Documented display sizes | 10.1 / 12.1 / 12.2 / 15.6 / 21.5 inches | 10.1 / 12.1 / 12.2 / 15.6 / 21.5 inches | 10.1 / 12.1 / 12.2 / 15.6 / 21.5 inches |
Display Options
| 10.1-inch | Color LCD touch screen / 1280×800 |
|---|---|
| 12.1-inch | Color LCD touch screen / 1024×768 |

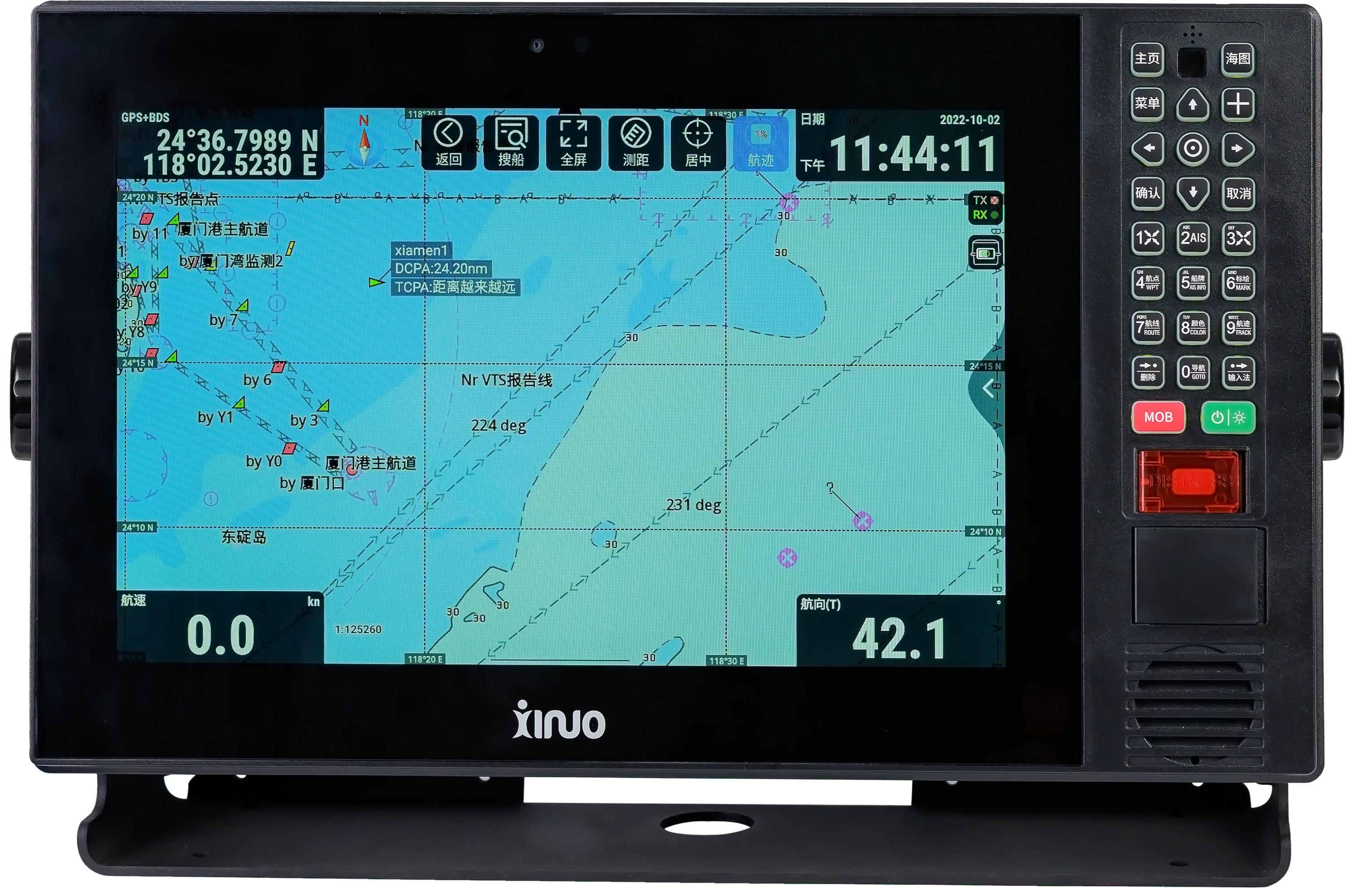

| 12.2-inch | Color LCD touch screen / 1280×800 |
| 15.6-inch | Color LCD touch screen / 1920×1080 |
| 21.5-inch | Color LCD touch screen / 1920×1080 |
Positioning / Navigation Data
| Positioning Modes | GPS & BDS / GPS / BDS |
|---|---|
| DGNSS Corrections | AIS base-station broadcast or networked transport |
| DGNSS Protocol | RTCM2.3 / RTCM2.4 / RTCM3.2 / NTRIP |
| Chart Formats | ENC / C-MAP MAX |
| Chart Presentation | Satellite image map overlay supported |
| AIS | Built-in Class B AIS transponder |
Interfaces / Connectivity
| Network | 1000Mbps Ethernet / Wi-Fi / 4G |
|---|---|
| Bluetooth / USB | Supports Bluetooth mouse and sound box; USB mouse and USB keyboard |
| Data Protocols | NMEA0183 / NMEA2000 |
| LAN | Supports connection to webcam and radar |
| Supported Connections | Echo-sounder transducer / AIS antenna / GNSS antenna / alarm / speaker / USB 2.0 |
| Storage | Built-in 16GB SSD / supports 512GB Micro SD (TF) card |
Echo Sounder / XN60R
| Transducer | Supports connection to a compatible transducer |
|---|---|
| Transmission Power | Up to 600W |
| Transmission Frequencies | 50kHz / 200kHz |
| Data Functions | Echo-data storage and replay |
| Operation | Frequency and period selection / automatic range adjustment / automatic gain adjustment |
NMEA2000 Data
GNSS / Vessel Data
| 129025 | Position, Rapid Update |
|---|---|
| 129026 | COG & SOG, Rapid Update |
| 129029 | GNSS Position Data |
| 129033 | Local Time Offset |
| 129539 | GNSS DOPs |
| 129540 | GNSS Sats in View |
| 126992 | System Time |
| 127250 | Vessel Heading |
| 127251 | Rate of Turn |
| 127257 | Attitude |
| 127258 | Magnetic Variation |
| 128267 | Water Depth |
| 130312 | Temperature-DEPRECATED |
| 130316 | Temperature, Extended Range |
| 130306 | Wind data |
AIS / Other Data
| 129038 | AIS Class A Position Report |
|---|---|
| 129039 | AIS Class B Position Report |
| 129040 | AIS Class B Extended Position Report |
| 129041 | AIS Aids to Navigation (AtoN) Report |
| 129793 | AIS UTC and Date Report |
| 129794 | AIS Class A Static and Voyage Related Data |
| 129809 | AIS Class B “CS” Static Data Report, Part A |
| 129810 | AIS Class B “CS” Static Data Report, Part B |
| 129795 | AIS Addressed Binary Message |
| 129797 | AIS Binary Broadcast Message |
| 129801 | AIS Addressed Safety Related Message |
| 129802 | AIS Safety Related Broadcast Message |
| 128275 | Distance Log |
| 127488 | Engine Parameters, Rapid Update |
