Antenna Mounts
안정적인 통신을 확보하고 antenna 또는 선박의 손상을 방지하려면 올바른 antenna mount 선택이 antenna 선택만큼 중요합니다. 많은 Shakespeare® mount에는 공장에서 장착된 대부분의 connector를 제거하지 않아도 되는 전용 cable slot이 있습니다. Mount type은 다음과 같습니다.
- Ratchet Mount
- Rail Mount
- Flange Mount
- Mast Mount
- Mount Accessory
- Mount Kit
- QuickConnect™ Mount
Models: 4186, 4187 / 4187-HD (heavy duty), 5187, 6187, 4720, 4190, 4188-SL, 4710, 4365, 483, 414, 81-S, 408-R, 410-R, QCM-SR, QCM-S
INQUIRY →공식 제품 이미지
Ratchet Mounts
| Model No. | Mount Type | Description | Construction | Mounting | Bolt Holes | Thread | U.S. Patent No. |
|---|---|---|---|---|---|---|---|
| 4186 | Ratchet Mount | Four-way ratchet design with handle. Not for use with antennas longer than 8’ in self-supporting mode — this nullifies all warranties. | Solid Nylon | Deck or side | 5/16” diameter // 3” x 11⁄2” on center | Standard 1”-14 (male) | -- |

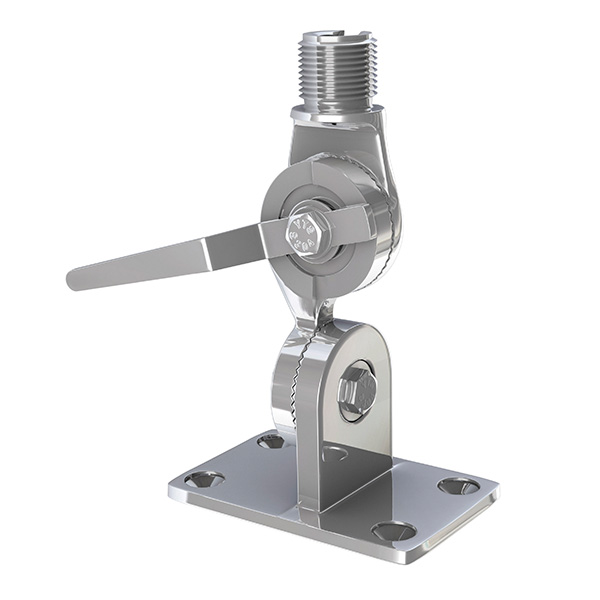

| 4187 / 4187-HD (heavy duty) | Ratchet Mount | Special cable slot eliminates removal of most factory-installed connectors. Heavy duty (HD) option for applications where extra strength and rigidity is needed. | Stainless Steel | Deck or side | 9/32” diameter // 3” x 11⁄2” on center | Standard 1”-14 (male) | -- |
| 5187 | Ratchet Mount | Five-degree teeth for finer angle adjustment than standard ratchet mounts. Special cable slot eliminates removal of most factory-installed connectors. | Stainless Steel | Deck or side | 9/32” diameter // 3” x 11⁄2” on center | Standard 1”-14 (male) | 7,525,507 |
| 6187 | Ratchet Mount | Full 4D range of motion without the use of tools. Maximum mounting location flexibility and ease of use, setting a new standard for asthetics. | Stainless Steel | Deck or side (can be installed at extreme angles) | 5/16” diameter // 3” x 11⁄2” on center | Standard 1”-14 (male) | 10492323B2 |
Rail Mounts
| Model No. | Mount Type | Description | Construction | Height | Thread |
|---|---|---|---|---|---|

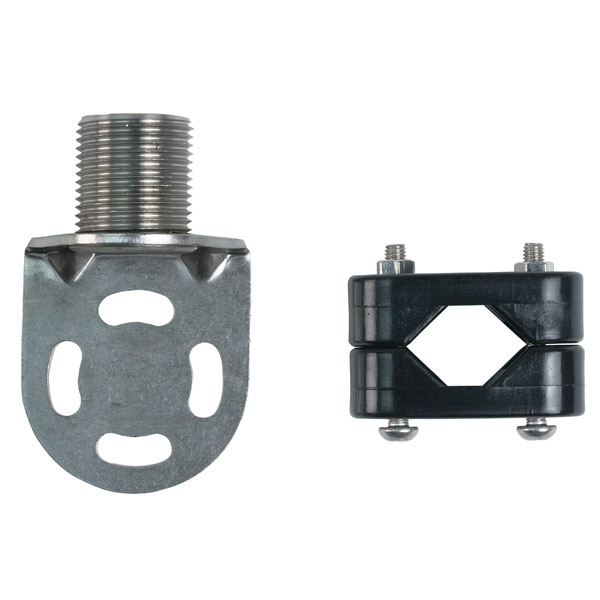

| 4720 | Economy Rail Mount | Versatile design fits almost any application. | Stainless Steel | 7/8′′ - 1 1⁄4” rails vertical or horizontal square or round | Standard 1”-14 (male) |

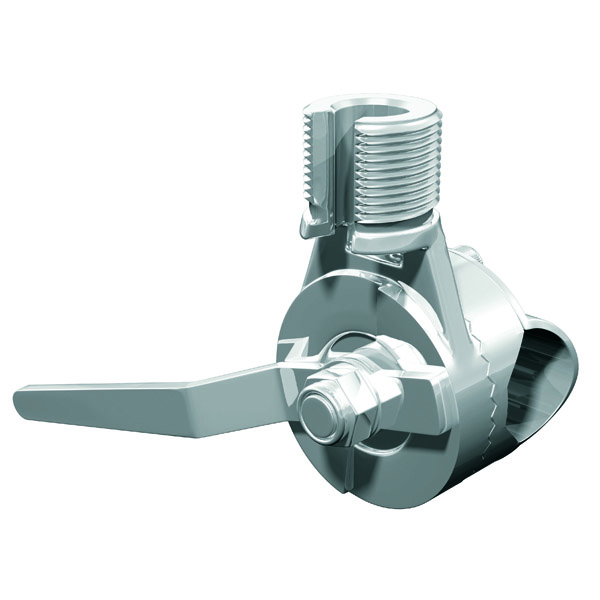

| 4190 | Rail Mount | Special cable slot eliminates removal of most factory-installed connectors. | Stainless Steel | 7/8′′ - 1′′ rails vertical, horizontal, or angled | Standard 1”-14 (male) |

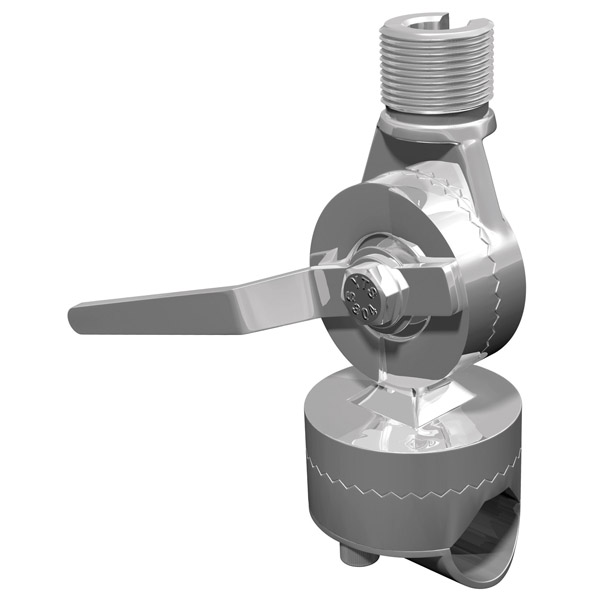

| 4188-SL | Rail Mount | Heavy duty construction. Special cable slot eliminates removal of most factory- installed connectors. | Stainless Steel | 1′′ - 1 1⁄2” rails vertical or horizontal | Standard 1”-14 (male) |
Flange Mounts
| Model No. | Mount Type | Description | Construction | Height | Thread |
|---|---|---|---|---|---|

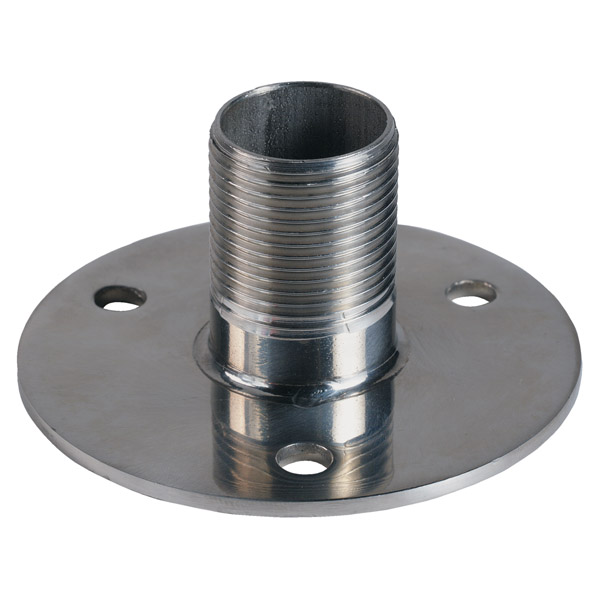

| 4710 | Flange Mount | Heavy-duty, low profile, for GPS, Marine TV, and shorter antennas. | Stainless steel | 1” | Standard 1”-14 (male) |

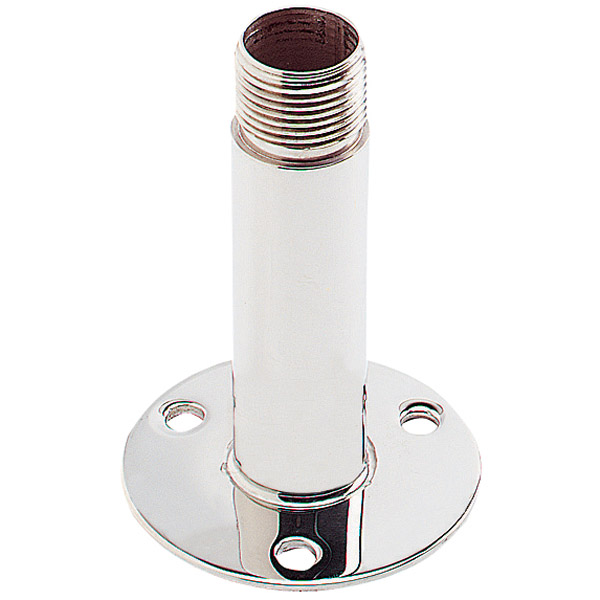

| 4365 | Flange Mount | Straight mount, perfect for radar arches. | Stainless steel | 4” | Standard 1”-14 (male) |
Mast Mounts
| Model No. | Mount Type | Description | Attaches | Works With | Includes |
|---|---|---|---|---|---|
| 483 | Galvanized metal mast clamps kit | -- | -- | Shakespeare® 476 antenna | 2 clamps |
Mount Accessories
| Model No. | Type | Description | Use With |
|---|---|---|---|
| 414 | Heavy-Duty Rubber Shim Kit for Ratchet Mounts | Kit of four shims, two each with front/back and side/side slope. Each shim adds a half-notch (5°) tilt. Stack them for extra height or for compound angles. | Any Shakespeare® ratchet mount |
Mount Kits
| Model No. | Type | Description | Works With | Thread |
|---|---|---|---|---|
| 81-S | Stainless Steel Swivel Mount | For deck or side mounting of Style 408-R upper support bracket (sold separately). Base is dual jointed, free-pivoting, and allows easy lowering of antenna for clearing overhead obstructions. | Style 408-R upper support bracket (sold separately) | Standard 1"-14 thread. |
| 408-R | Stand-Off Bracket Mounting Kit | Insulated stand-off bracket made of white molded plastic. | Styles 81-S Swivel Mounts (sold separately) and antennas of 1 1⁄8” or 1⁄2” (using inserts provided). | -- |
| 410-R | Swivel Mount Mounting Kit | Combines the Style 81-S Swivel Mount with the Shakespeare Style 408-R molded upper bracket. | The provided inserts are for 1 1⁄8” and 1 1⁄2”. | -- |
QuickConnect™ Mounts
| Model No. | Description | Construction | Connection | Mounting | Bolt Holes | Thread | Max Height of Antenna |
|---|---|---|---|---|---|---|---|
| QCM-SR | Stainless Steel Ratchet Rail Mount | Stainless steel | Centerpin® PL-259-CP-G | Deck or side | 9/32” diameter // 3” x 11⁄2” on center | Standard 1”-14 (male) | 8' |
| QCM-S | Stainless Steel Ratchet Mount | Stainless steel | Centerpin® PL-259-CP-G | Deck or side | 9/32” diameter // 3” x 11⁄2” on center | Standard 1”-14 (male) | 8' |
