Type Approval
Passed China Classification Society CCS type approval.
XINUO
HM-5818
ECDIS
Electronic Chart Display and Information System.
PRODUCT OVERVIEW
HM-5818.
The HM-5818 ECDIS consists of a host and display. Display options are 19, 24 and 26 inches, selected to suit the application. It supports electronic-chart display and management, multiple route-design methods, route detection and navigation monitoring.
- System
- Electronic Chart Display and Information System
- Display options
- 19 / 24 / 26 inch
- Chart standards
- IHO S-57 Ed. 3.1 / S-63 data protection
- Platform
- Linux modular software platform
- Memory
- 4 GB RAM
- Connectivity
- 100 / 1000 Mbps Ethernet; optional 4G / 5G and Wi-Fi
MAIN FEATURES
Modular Platform
Linux-based modular design supports stable operation and a clear, highly integrated interface.
Chart Data
Supports S-57 and S-63 chart data issued by China Maritime Safety Administration, the UK Hydrographic Office and other institutions.
Multi-language
Supports multiple languages, including Chinese and English.
Marine Environment
Designed for high-humidity and low-temperature environments with waterproof construction.
System Interfaces
Provides interfaces for connection to marine navigation equipment.

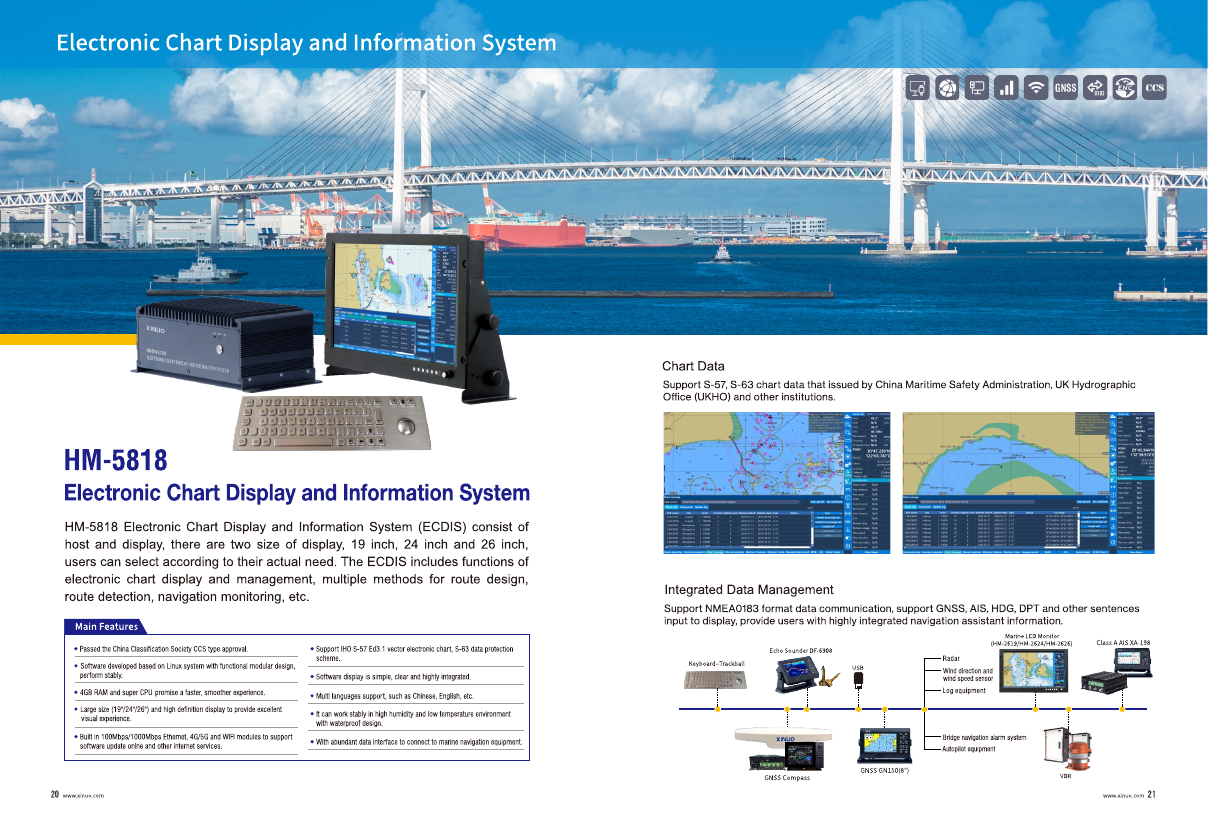

Chart data.
Integrated data.
NMEA 0183 communications integrate GNSS, AIS, heading, depth and other sentences, supporting a consolidated view of navigation-assistance information.
NAVIGATION WORKFLOW

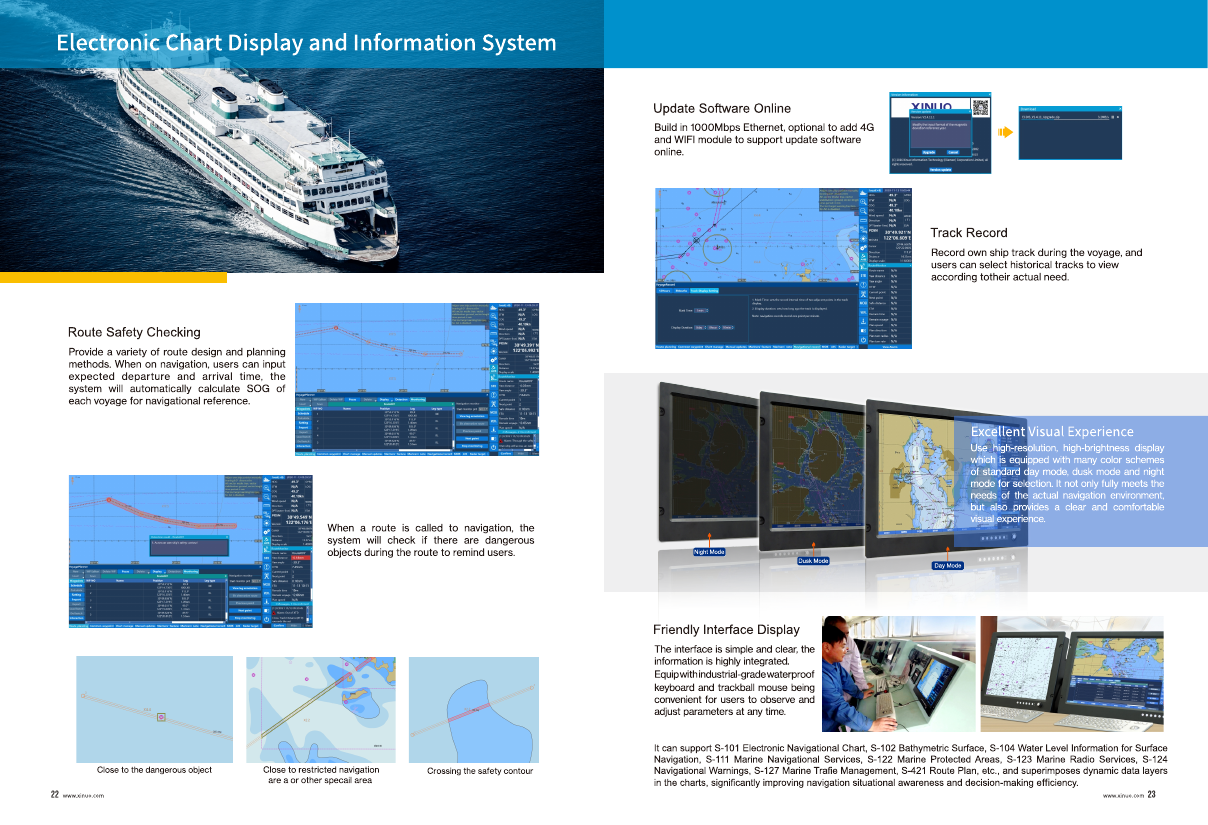

Route Safety Checking
Route design and planning support expected departure and arrival times, automatic SOG calculation and warnings for dangerous objects along a called route.
Update Software Online
Gigabit Ethernet and optional 4G / Wi-Fi modules support online software updates.
Track Record
Records the vessel’s track during a voyage and allows historical tracks to be selected by date.
Excellent Visual Experience
High-resolution, high-brightness displays support night, dusk and day modes for different navigation environments.
Friendly Interface Display
A clear interface integrates navigation information; the industrial waterproof keyboard and trackball mouse allow parameter adjustment.
Additional Data Layers
Supports S-101, S-102, S-104, S-111, S-122, S-123, S-124, S-127 and S-421 data layers described in the catalog.
Source: XINUO General Catalog 2025, printed pages 20–23. Current imagery is catalog-derived and prepared for direct replacement when an official high-resolution HM-5818 product image becomes available.
